Wholesale 2P 1500VDC T2 40kA Orange Surge Protective Device 20kA SPD for Extreme High Voltage DC Systems Suppliers, Manufacturer

This 2P 1500VDC T2 Surge Protective Device represents the cutting edge of surge protection technology for extreme high voltage DC systems. Featuring a highly visible orange plastic housing, this advanced SPD delivers exceptional protection against lightning strikes and transient overvoltages in demanding 1500VDC applications. With a maximum discharge capacity of 40kA and nominal discharge current of 20kA, this twopole protector combines compact design with superior performance. The device incorporates stateoftheart protection technology and robust construction to ensure complete system safety and equipment reliability in the most challenging electrical environments, making it an ideal solution for critical infrastructure applications.

Send Inquiry

Product Description

Key Features and Advantages

Extreme High Voltage Protection

Specifically engineered for 1500VDC systems, providing superior surge protection for critical high-voltage applications.

High Visibility Orange Housing

Ensures easy identification and maintenance in complex electrical panels and distribution systems.

Exceptional Surge Handling

40kA maximum discharge current (8/20μs) provides robust defense against severe lightning strikes and power surges.

Space-Optimized Configuration

Compact 2-pole design maximizes space efficiency in control cabinets and enclosures.

Advanced Multistage Protection

Utilizes premium metal oxide varistors with ultrafast response time (<25ns) for optimal performance.

Enhanced Safety Systems

Integrated thermal disconnect protection and failsafe operation mechanism ensure maximum safety.

Clear Status Monitoring

Visual LED indicators with remote signaling capability for instant operational status assessment.

Easy Installation & Maintenance

DIN rail mounting with screw terminal connections for quick deployment and service.

Application Scenarios

Industrial High-Voltage Systems Protects PLCs, motor drives, and control equipment in heavy industrial manufacturing facilities.

Utility-Scale Solar Plants Safeguards solar inverters and monitoring systems in large-scale photovoltaic power stations.

EV Charging Infrastructure Provides protection for ultra-fast DC charging stations and power distribution networks.

Railway Electrification Systems Ensures reliability of traction power systems and signaling equipment in railway applications.

Energy Storage Systems Ideal for battery storage and power conversion systems in large-scale ESS applications.

Marine and Offshore Suitable for marine electronics and offshore power systems in harsh environments.

Telecommunications Protects critical communication equipment in data centers and base stations.

Technical Specifications

Maximum Discharge Current40kA (8/20μs)

Nominal Discharge Current20kA (8/20μs)

Protection Level (Up)≤4.0kV

Rated Voltage1500VDC

Protection LevelT2 (Class II)

Number of Poles2P

Housing MaterialFlame-Retardant Plastic (UL94 V0)

ColorOrange (High Visibility)

Response Time<25 nanoseconds

Operating Temperature Range-45°C to +85°C

Protection ModeL+/L/PE

Connection TypeScrew terminal

MountingDIN Rail (35mm)

Protection DegreeIP20

Standards ComplianceIEC 61643-11, EN 61643-11, UL 1449

This orange surge protective device combines advanced protection technology with high visibility design, providing comprehensive surge protection for extreme high voltage DC systems. Its reliable performance, compact design, and excellent protective characteristics make it an ideal choice for various industrial applications where both protection efficiency and easy maintenance are essential requirements. The device meets international standards and offers peace of mind through its proven performance in the most demanding electrical environments.

Detailed Pictures

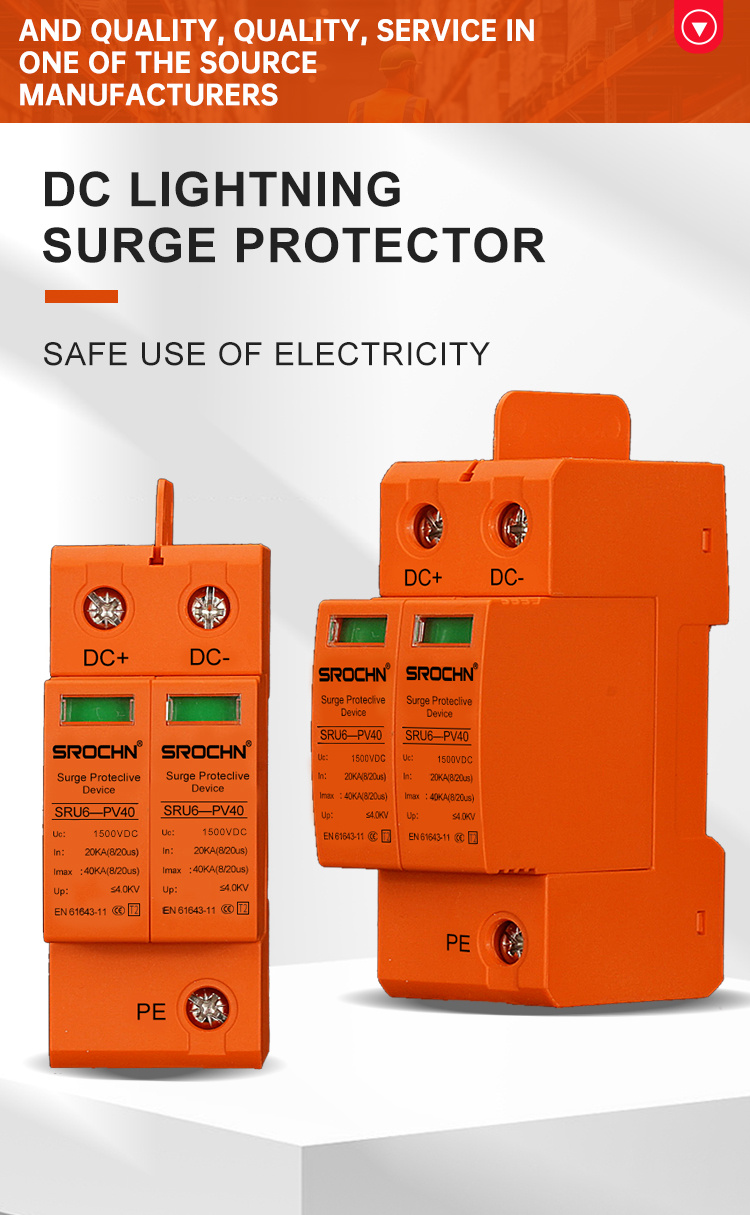

2P 1500VDC T2 40kA Orange Surge Protective Device 01

2P 24VDC T2 40kA Surge Protective Device 20kA SPD 02

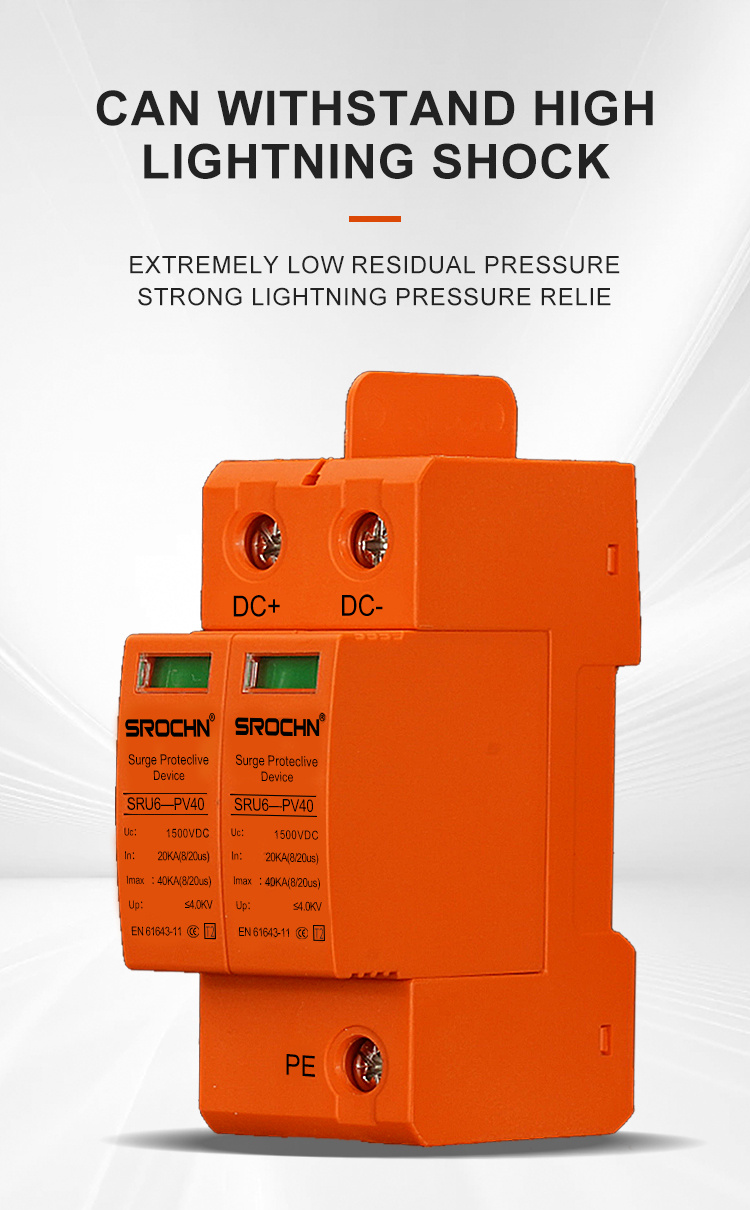

2P 1500VDC T2 40kA Orange Surge Protective Device 03

2P 24VDC T2 40kA Surge Protective Device 20kA SPD 04

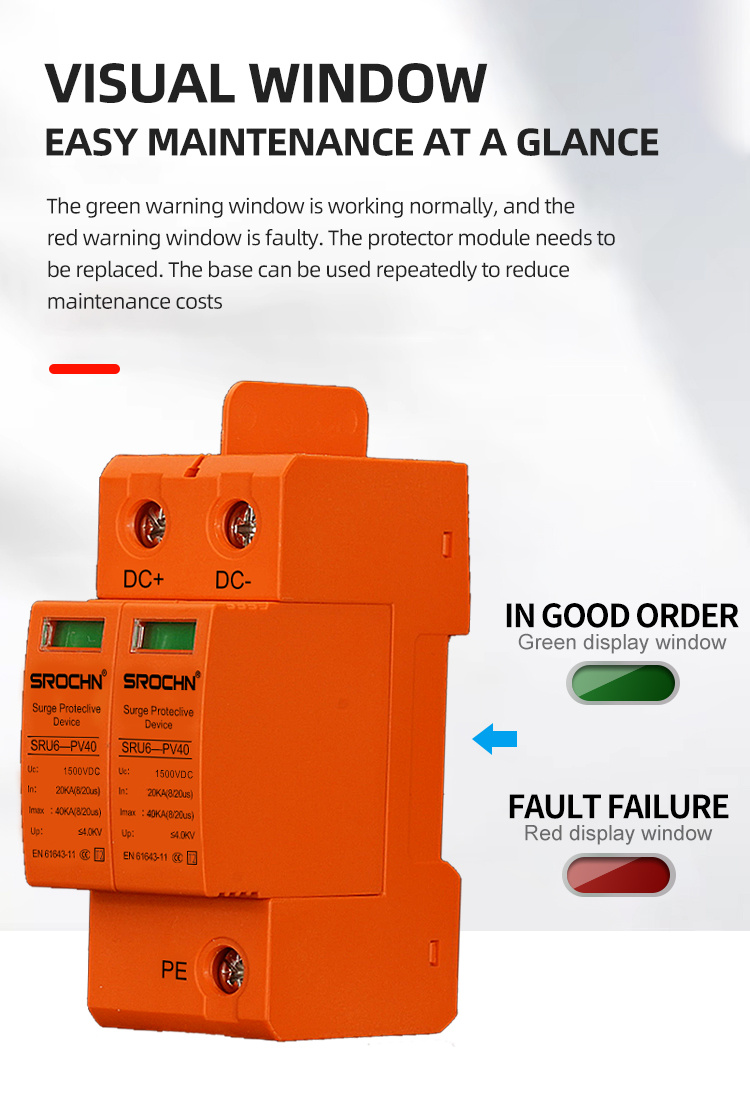

2P 1500VDC T2 40kA Orange Surge Protective Device 05

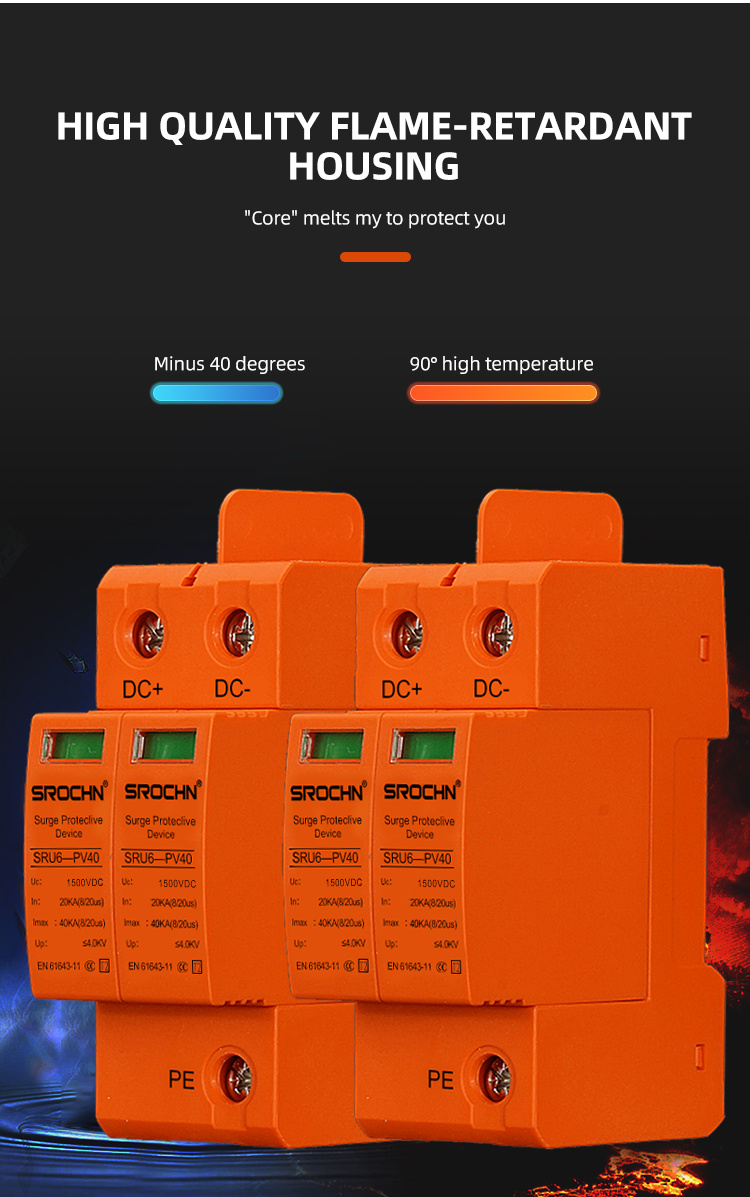

2P 1500VDC T2 40kA Orange Surge Protective Device 06

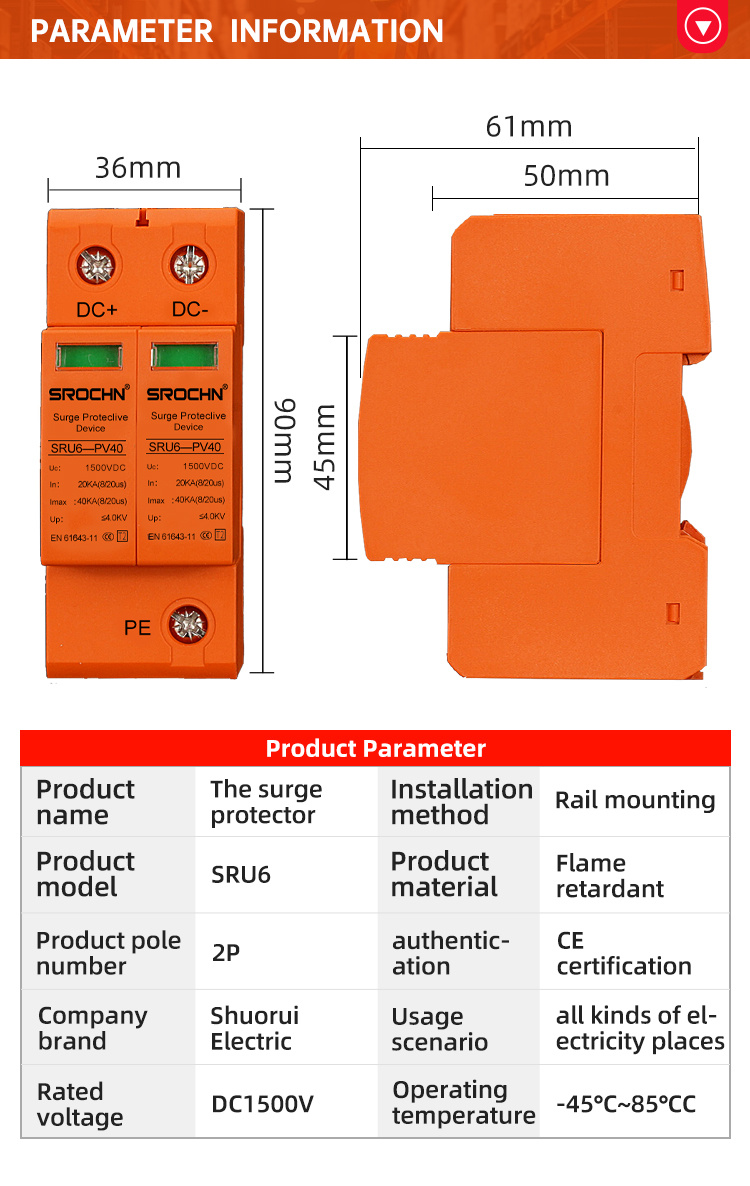

2P 1500VDC T2 40kA Orange Surge Protective Device 07

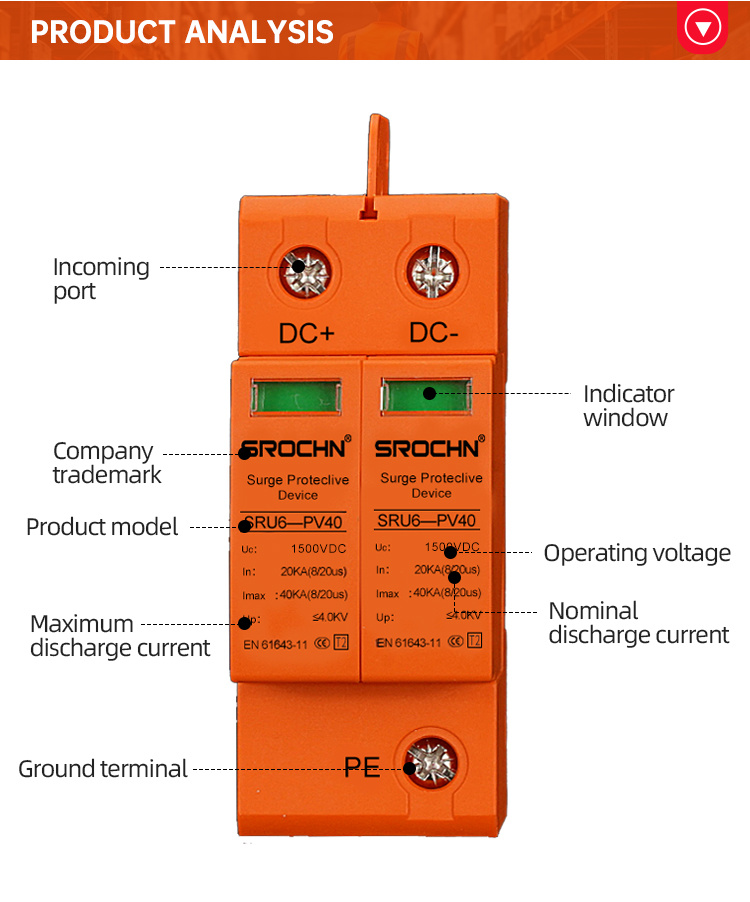

2P 1500VDC T2 40kA Orange Surge Protective Device 08

2P 24VDC T2 40kA Surge Protective Device 20kA SPD 09

2P 24VDC T2 40kA Surge Protective Device 20kA SPD 10

Frequently Asked Questions

Q1: What is the primary application of this 1500VDC Surge Protective Device (SPD)?

A1: This SPD is specifically engineered for extreme high-voltage DC systems up to 1500VDC, making it ideal for utility-scale solar plants, EV charging infrastructure, energy storage systems (ESS), and industrial high-voltage setups.

Q2: What does the 40kA maximum discharge current signify?

A2: The 40kA maximum discharge current (8/20μs) indicates the device's robust capability to handle and safely divert severe lightning strikes and high-energy power surges, protecting sensitive downstream equipment.

Q3: Why is the housing designed in high-visibility orange?

A3: The bright orange housing ensures quick and easy visual identification inside complex electrical panels and distribution systems, simplifying maintenance and safety inspections.

Q4: What safety mechanisms are integrated into this surge protector?

A4: It features advanced safety systems including integrated thermal disconnect protection, a failsafe operation mechanism, and visual LED indicators with remote signaling capabilities for real-time status monitoring.

Q5: How is this SPD installed?

A5: The device features a space-optimized 2-pole design and is built for easy installation on standard 35mm DIN rails using secure screw terminal connections.

Q6: What standards does this surge protective device comply with?

A6: It fully complies with international safety and performance standards, including IEC 61643-11, EN 61643-11, and UL 1449.
