China 2P 275V T2 20KA-40KA Lightning Surge Protection Device SPD Supplier, Suppliers
This two-pole Type 2 surge protective device provides reliable overvoltage protection for 230V/240V AC electrical systems. With a maximum continuous operating voltage of 275V and compatibility with both 50Hz and 60Hz power networks, the device offers effective protection against lightning-induced surges and switching transients. The 20kA nominal discharge capacity ensures stable performance in various commercial and industrial applications.
The device utilizes metal oxide varistor technology with balanced protection characteristics. Its fast response capability ensures effective clamping of transient overvoltages, while the thermal protection mechanism provides fail-safe operation. The compact design allows for space-efficient installation in distribution boards.
Application Scope
Main distribution boards
Industrial power systems
Manufacturing equipment
HVAC systems
Telecommunication supplies
Renewable energy systems
Installation Requirements
Installation should be performed by qualified electrical personnel according to IEC standards. The device must be installed in parallel with the power supply system using appropriate cross-section cables. Proper grounding connections are essential for optimal performance. Regular inspection of the status indicator is recommended.
Standards Compliance & Features
IEC 61643-11
EN 61643-11
CE Certified
RoHS Compliant
Thermal Protection
Visual Status Indication
Maintenance-free
Environmental Specifications
Storage Temp: -40°C to +85°C
Operating Humidity: 5% to 95% RH
Max Altitude: ≤2000m
Pollution Degree: 2
Overvoltage Category: III
Detailed Product Images
Frequently Asked Questions
What is the primary function of this Type 2 Surge Protective Device?
It is designed to protect electrical installations and sensitive equipment against indirect lightning strikes and transient overvoltages by limiting the voltage and discharging surge currents.

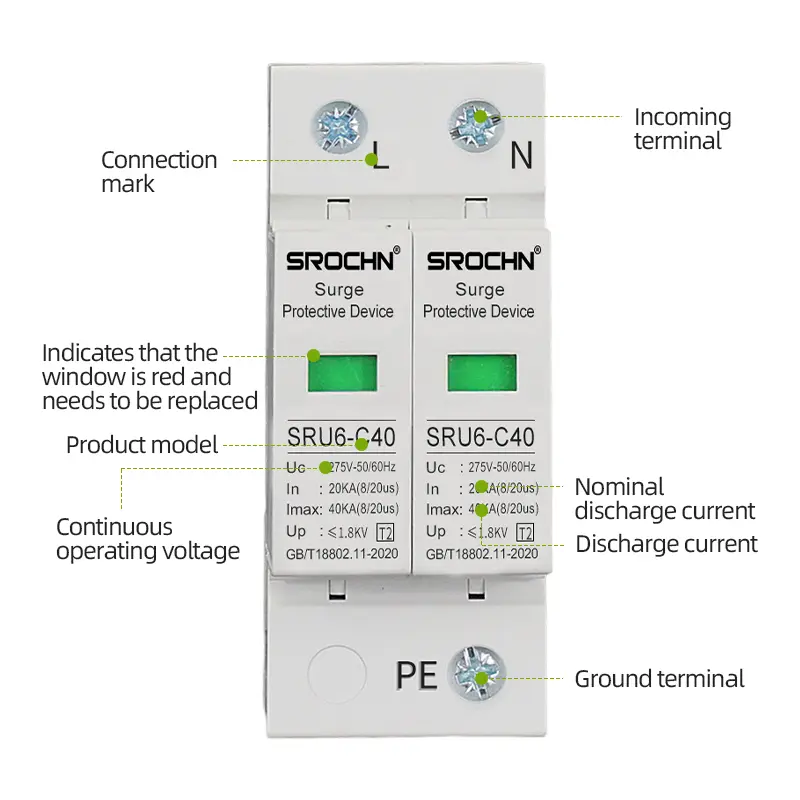

How does the visual status indicator work?
The visual indicator provides a real-time health check. Typically, a green window indicates the device is operational, while a change in color (often to red) signals that the protective module has reached its end of life and requires replacement.
Can this SPD be used in renewable energy systems?
Yes, it is suitable for renewable energy systems, as well as industrial power distribution, commercial buildings, and manufacturing control panels.
What are the installation mounting requirements?

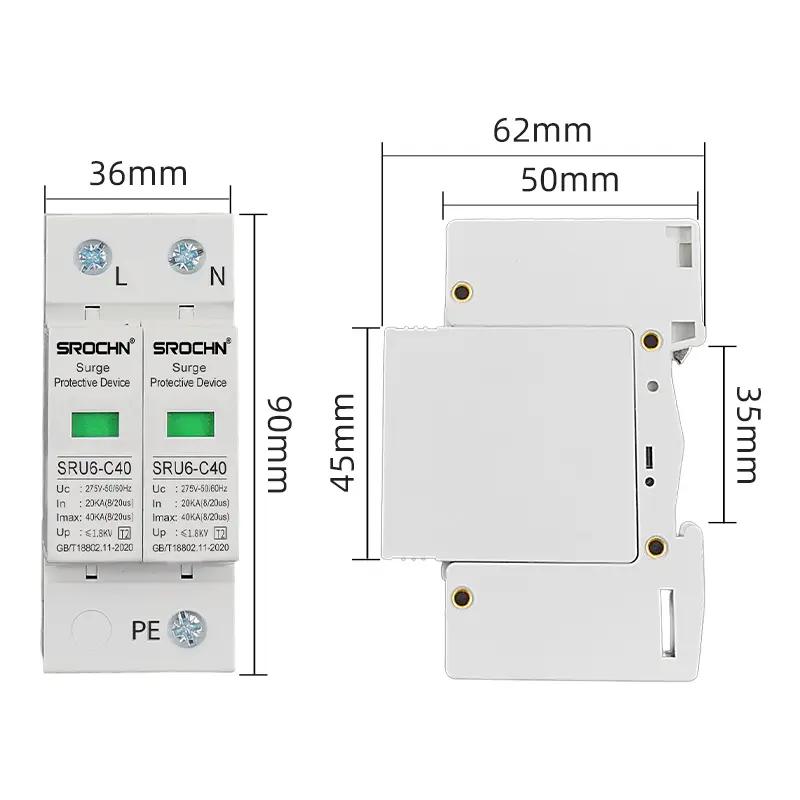

This device is designed for standard DIN rail mounting, allowing for easy integration into most modern power distribution boards and control cabinets.
Is the housing material safe for industrial use?
Absolutely. The housing is made from flame-retardant thermoplastic, ensuring high safety standards and durability in various industrial environments.
What is the significance of the 20kA and 40kA ratings?
20kA represents the Nominal Discharge Current (In) the device can handle multiple times, while 40kA is the Maximum Discharge Current (Imax) it can withstand in a single event.
