Delivers standard discharge current protection of 20kA, maintaining consistent performance under normal operating conditions.
Confirms compliance with international standards for handling indirect lightning effects and switching surges.
Integrated thermal protection ensures automatic disconnection during overload situations, paired with a visual status indicator.

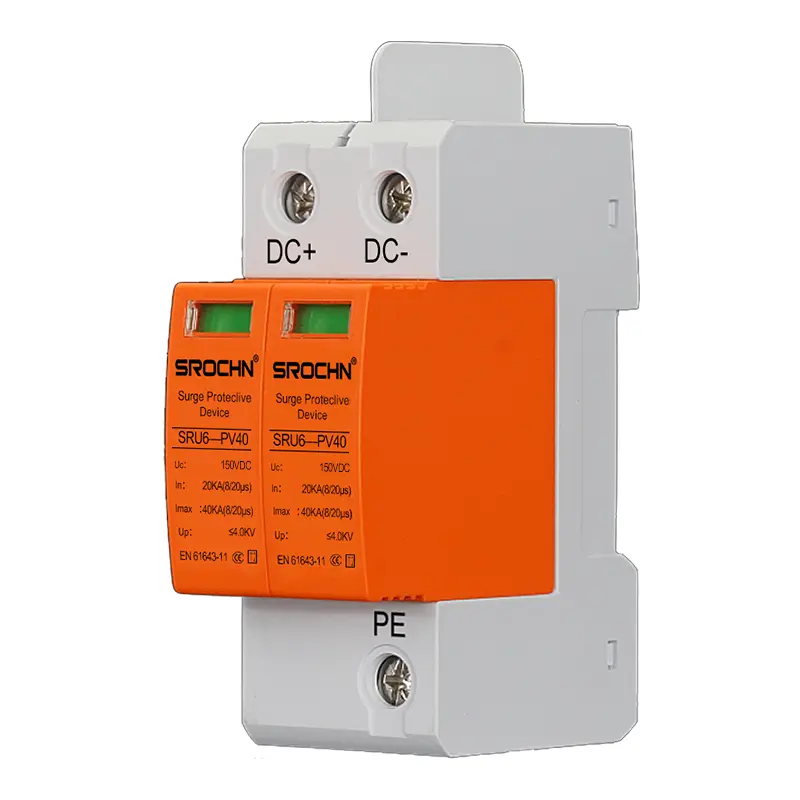

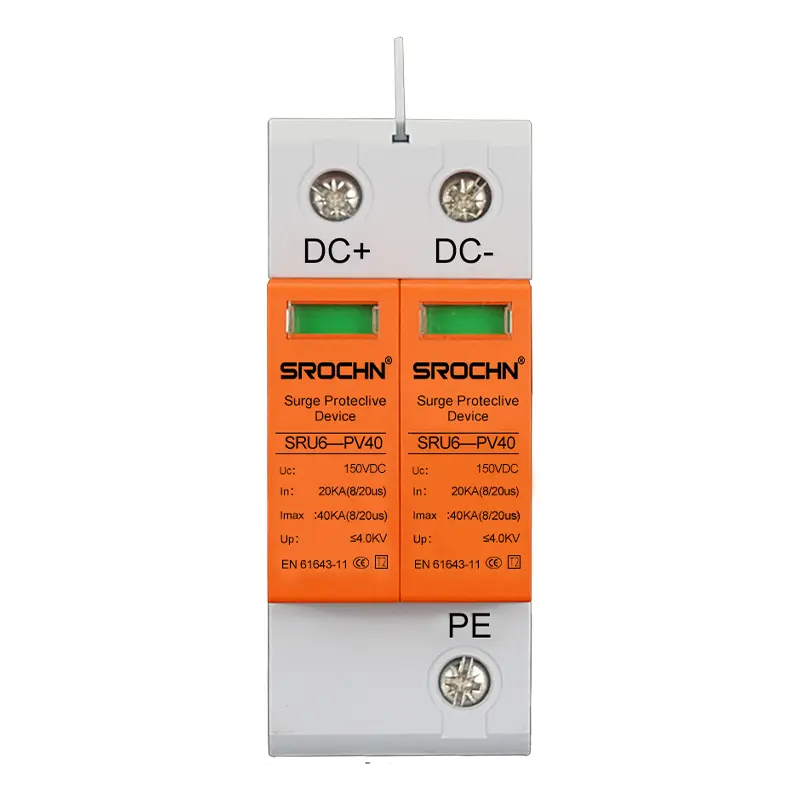

Practical color scheme enhances visibility in panels, and standard DIN rail mounting facilitates straightforward installation.

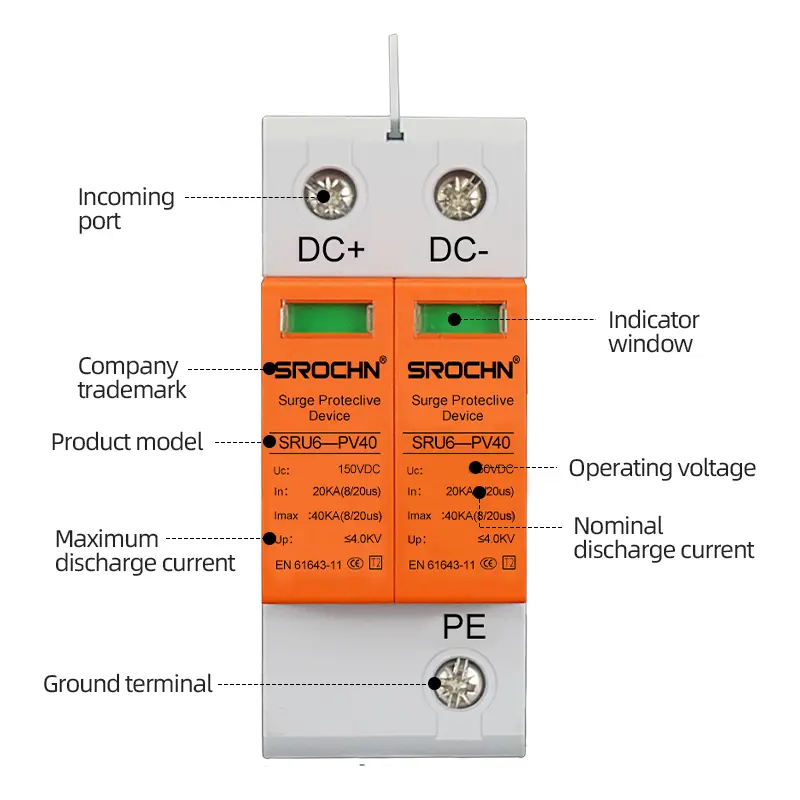

| Maximum Discharge Current | 40kA (8/20μs) |
| Standard Discharge Current | 20kA (8/20μs) |
| Type Classification | T2 |
| Rated Voltage | 150VDC |
| Protection Level | ≤4.0kV |
| Number of Poles | 2P |
| Housing Material | Plastic |
| Color Scheme | Grey background with orange accents |
| Response Time | <25ns |
| Operating Temperature Range | -45°C to +85°C |
| Connection Method | Screw terminals |
| Mounting | 35mm DIN rail |
| Package Dimensions | 9.5×7.5×7 cm |
| Gross Weight | 0.251kg |
| Standards Compliance | IEC 61643-11 |
This surge protective device is suitable for low-voltage DC applications including solar power systems, industrial control circuits, and telecommunications equipment. It provides reliable protection for charge controllers, monitoring devices, and control systems in renewable energy applications. The unit is also appropriate for building management systems, security installations, and emergency lighting circuits. The compact size and light weight make it particularly suitable for applications where space is limited, such as control cabinets in transportation systems or compact electrical enclosures in commercial buildings.
