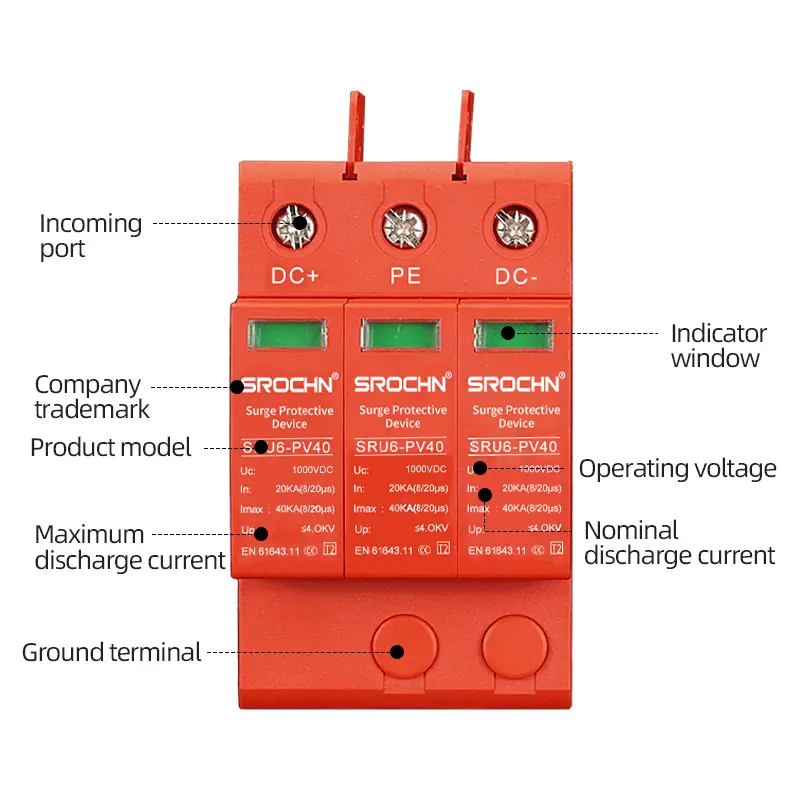

This 3P 1000VDC T2 Surge Protective Device is engineered to provide comprehensive protection for high voltage DC systems against transient overvoltages and lightning strikes. The device features a durable plastic housing that ensures excellent electrical insulation and mechanical protection. With a maximum discharge capacity of 40kA and nominal discharge current of 20kA, this SPD delivers reliable performance for electrical equipment operating in 1000VDC applications. The threepole configuration offers complete system protection, making it suitable for various industrial applications where robust surge protection is required for high voltage DC systems.

Send Inquiry

Product Description

Key Features and Advantages

✓ High voltage DC protection specifically designed for 1000VDC systems
✓ 40kA maximum discharge current capacity provides robust surge protection
✓ Threepole configuration ensures comprehensive system protection
✓ Fast response time under 25 nanoseconds for effective voltage clamping
✓ Integrated thermal protection with automatic disconnection mechanism
✓ Clear visual status indicators for operational monitoring
✓ Easy installation through DIN rail mounting system
✓ Wide operating temperature range from -45°C to +85°C
✓ Full compliance with IEC 61643-11 international standards
✓ Durable plastic housing with flame-retardant properties

Application Scenarios

●Industrial power distribution systems
●Renewable energy generation facilities
●Electric vehicle charging infrastructure
●Railway and transportation systems
●Telecommunications equipment
●High voltage DC power networks
●Equipment protection in manufacturing plants
●Lightning protection systems for critical infrastructure
●Data centers and server facilities

Technical Specifications

Max Discharge Current40kA (8/20μs)
Nominal Discharge Current20kA (8/20μs)
Rated Voltage1000VDC
Protection Level≤4.0kV
SPD TypeType 2 (T2)
Number of Poles3P
Housing MaterialPlastic (UL94 V0)
Response Time<25 nanoseconds
Operating Temperature-45°C to +85°C
Protection ModeL+/L-/PE
Connection TypeScrew terminal
Mounting35mm DIN rail
Protection RatingIP20
StandardsIEC 61643-11
This surge protective device offers reliable performance and comprehensive protection for high voltage DC systems. Its threepole configuration provides complete system protection while the robust construction ensures equipment safety and system reliability across various industrial applications. The device meets international standards for surge protective devices and provides effective protection against electrical surges and transient overvoltages in demanding operational environments.

Detailed Product Display

Photovoltaic SPD Surge (1)
Photovoltaic SPD Surge (2)
Photovoltaic SPD Surge (3)
Photovoltaic SPD Surge (4)
Photovoltaic SPD Surge (5)
Photovoltaic SPD Surge (6)
Photovoltaic SPD Surge (7)
Photovoltaic SPD Surge (8)
Photovoltaic SPD Surge (9)
Photovoltaic SPD Surge (10)
Photovoltaic SPD Surge (11)
Frequently Asked Questions
What is the main application for this 1000VDC Surge Protective Device?
This device is primarily designed for high-voltage DC systems, including photovoltaic (solar) power generation, EV charging infrastructure, and industrial DC power networks.
How fast does the SPD react to a voltage surge?
The device has an ultra-fast response time of less than 25 nanoseconds, ensuring effective voltage clamping before it can damage sensitive equipment.
Is the installation of this surge protector complicated?
No, it is designed for easy installation using a standard 35mm DIN rail mounting system and utilizes secure screw terminals for electrical connections.
Does this unit provide any visual indication of its status?
Yes, it features clear visual status indicators that allow maintenance personnel to monitor the operational status and health of the device at a glance.
What international standards does this SPD comply with?
The device is fully compliant with IEC 61643-11 international standards for surge protective devices, ensuring global reliability and safety.
Can this device withstand extreme environmental conditions?
Yes, it has a wide operating temperature range from -45°C to +85°C and is housed in a durable, flame-retardant plastic (UL94 V0) casing.
