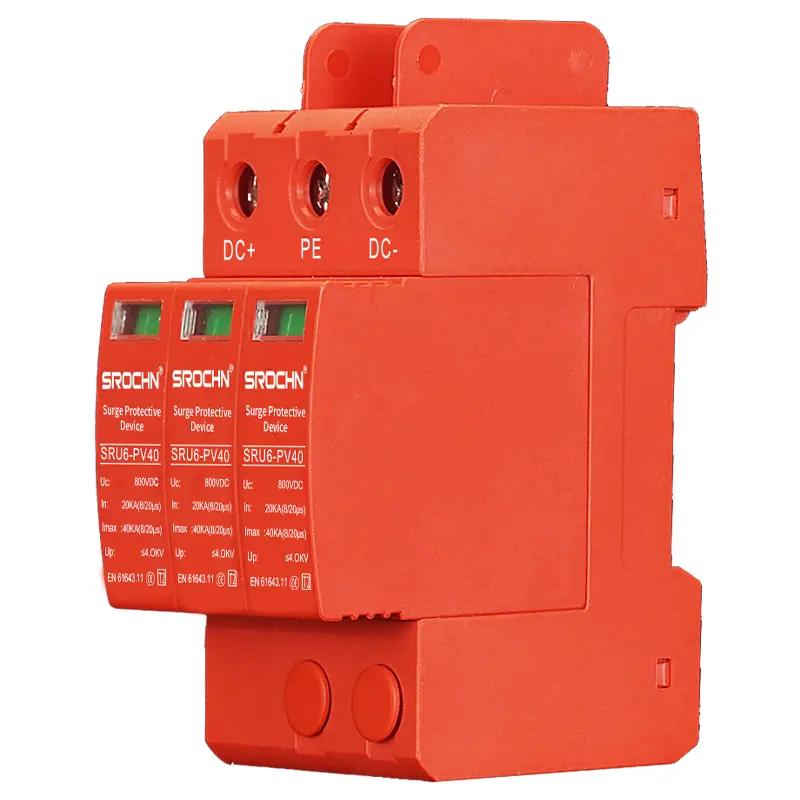

This 3P 800VDC T2 Surge Protective Device is designed to provide comprehensive protection for high voltage DC systems against transient overvoltages and lightning strikes. The device features a durable plastic housing that ensures excellent electrical insulation and mechanical protection. With a maximum discharge capacity of 40kA and nominal discharge current of 20kA, this SPD delivers reliable performance for electrical equipment operating in 800VDC applications. The compact packaging dimensions of 9.5×7.5×7 cm and unit weight of 0.317 kg make it suitable for installations where space optimization is important while maintaining full protective capabilities.

Send Inquiry

Product Description

Key Features and Advantages
✔High voltage DC protection specifically designed for 800VDC systems
✔40kA maximum discharge current capacity provides robust surge protection
✔Threepole configuration ensures complete system protection
✔Fast response time under 25 nanoseconds for effective voltage clamping
✔Integrated thermal protection with automatic disconnection mechanism
✔Clear visual status indicators for operational monitoring
✔Compact design with space-efficient packaging
✔Lightweight construction for easy handling and installation
✔Wide operating temperature range from -45°C to +85°C
✔Full compliance with IEC 61643-11 international standards
Application Scenarios
➤Industrial power distribution systems
➤Renewable energy generation facilities
➤Electric vehicle charging infrastructure
➤Railway and transportation systems
➤Telecommunications equipment
➤High voltage DC power networks
➤Equipment protection in manufacturing plants
➤Lightning protection systems for critical infrastructure
➤Data centers and server facilities
Technical Specifications
Max Discharge Current40kA (8/20μs)
Nominal Discharge Current20kA (8/20μs)
Rated Voltage800VDC
Protection Level≤4.0kV
TypeT2
Number of Poles3P
Housing MaterialPlastic (UL94 V0)
Response Time<25 nanoseconds
Temperature Range-45°C to +85°C
Protection ModeL+/L-/PE
Connection TypeScrew terminal

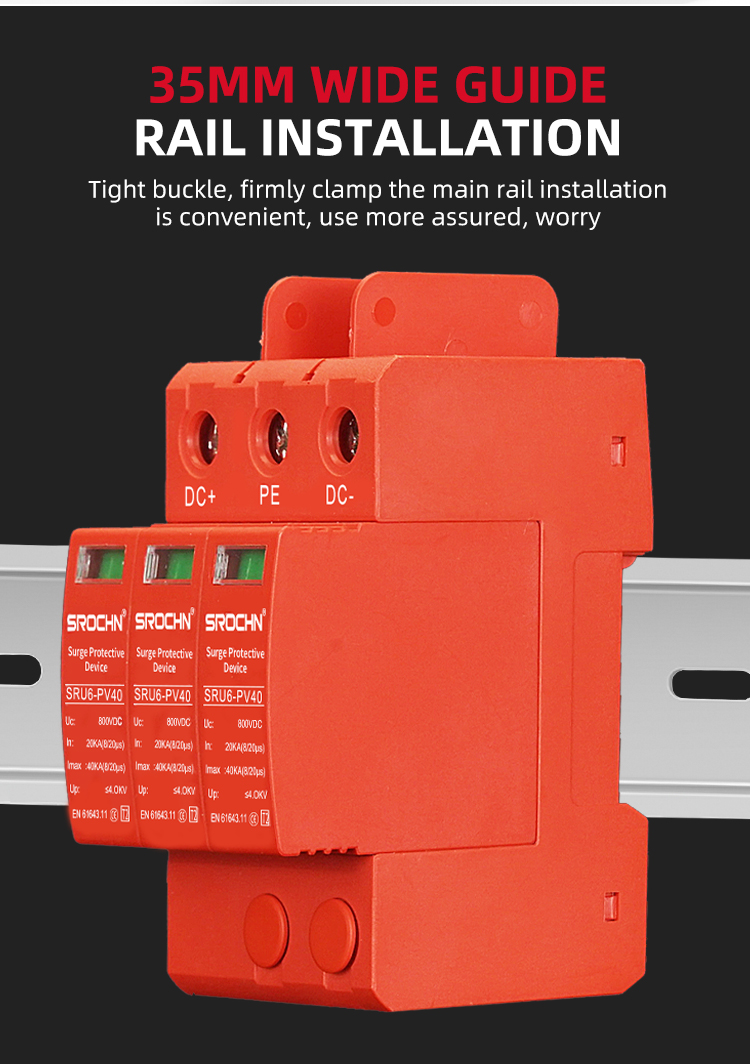

Mounting35mm DIN rail
Protection RatingIP20

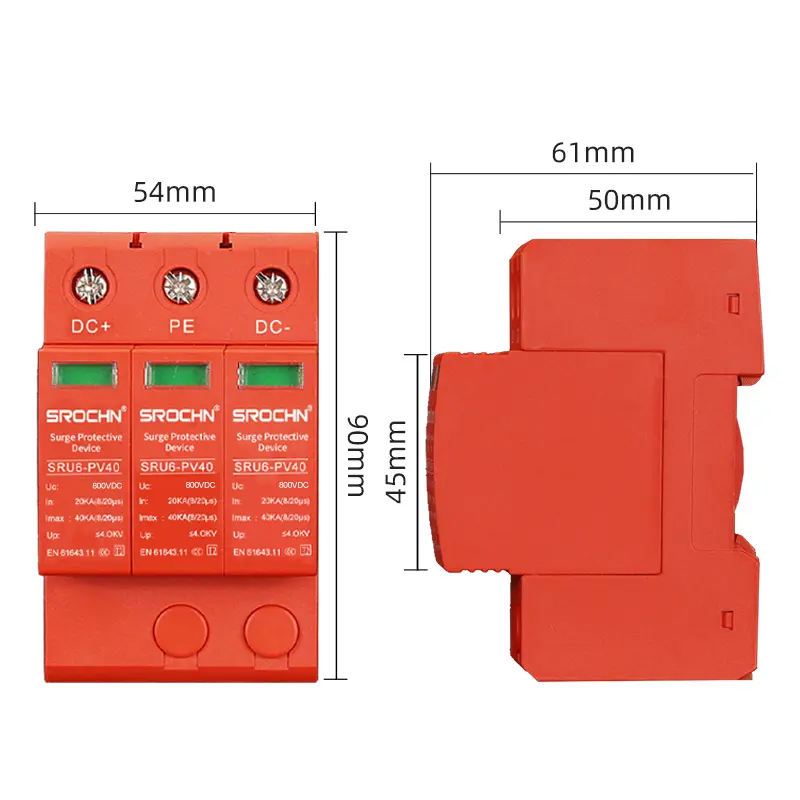

Dimensions9.5 × 7.5 × 7 cm
Unit Weight0.317 kg
StandardsIEC 61643-11
This surge protective device offers reliable performance and comprehensive protection for high voltage DC systems. Its threepole configuration provides complete system protection while the compact design and lightweight construction make it suitable for various installation environments. The device meets international standards for surge protective devices and provides effective protection against electrical surges and transient overvoltages in demanding operational environments.
Detailed Product Gallery
SPD Image 1

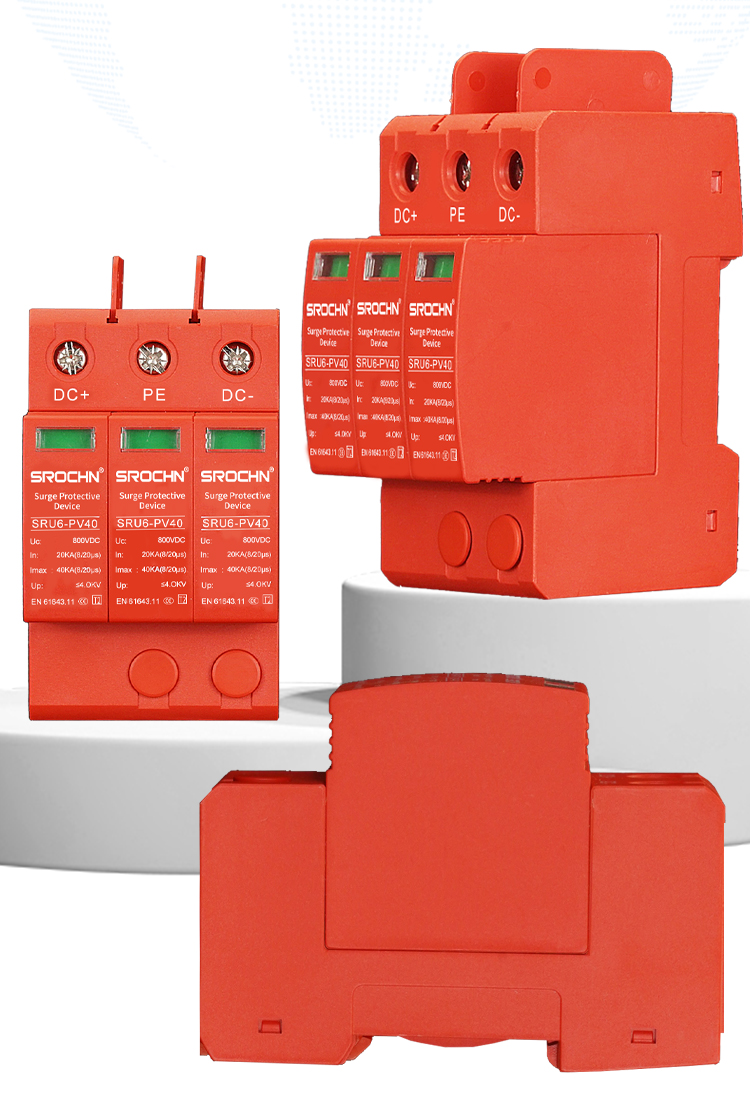

SPD Image 2

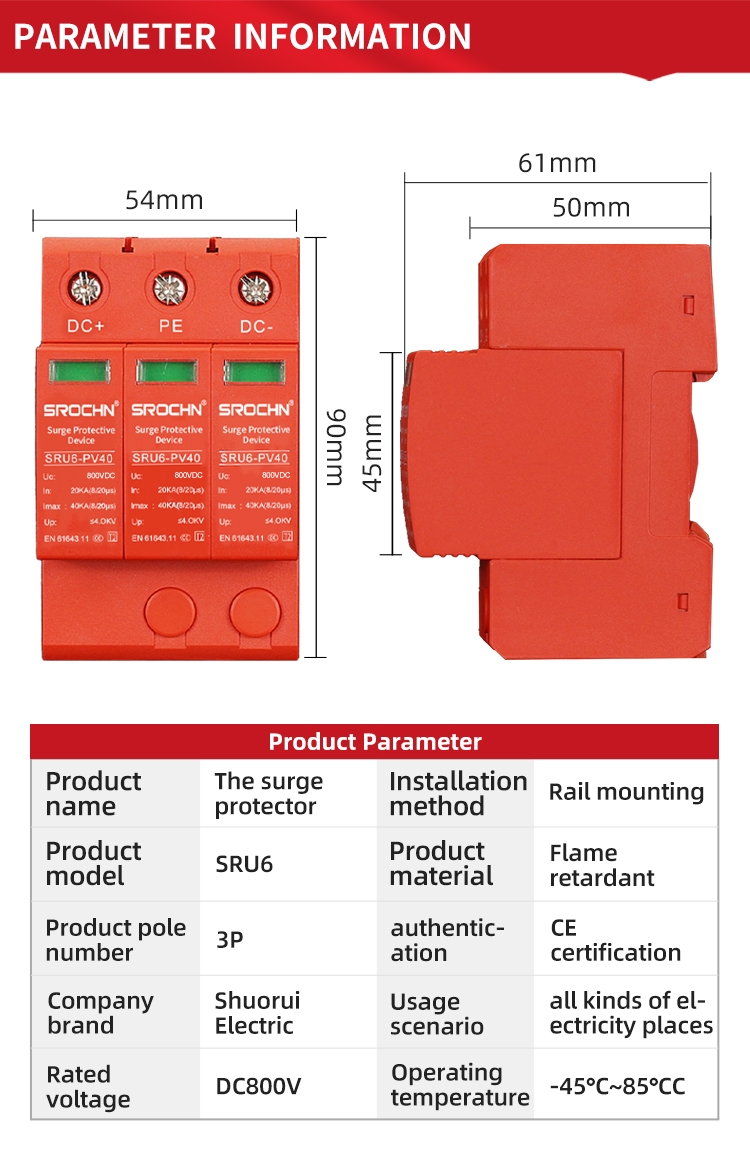

SPD Image 3

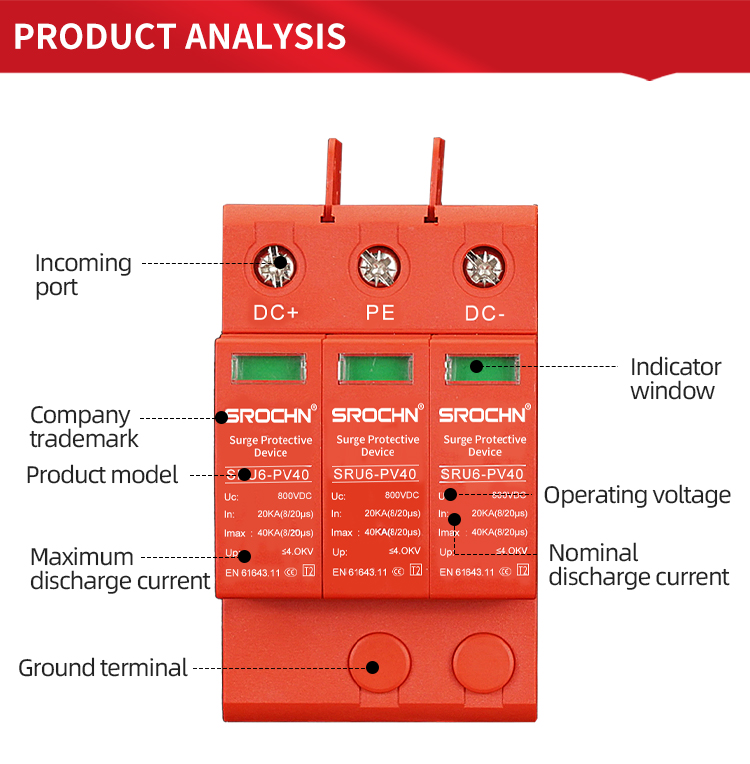

SPD Image 4

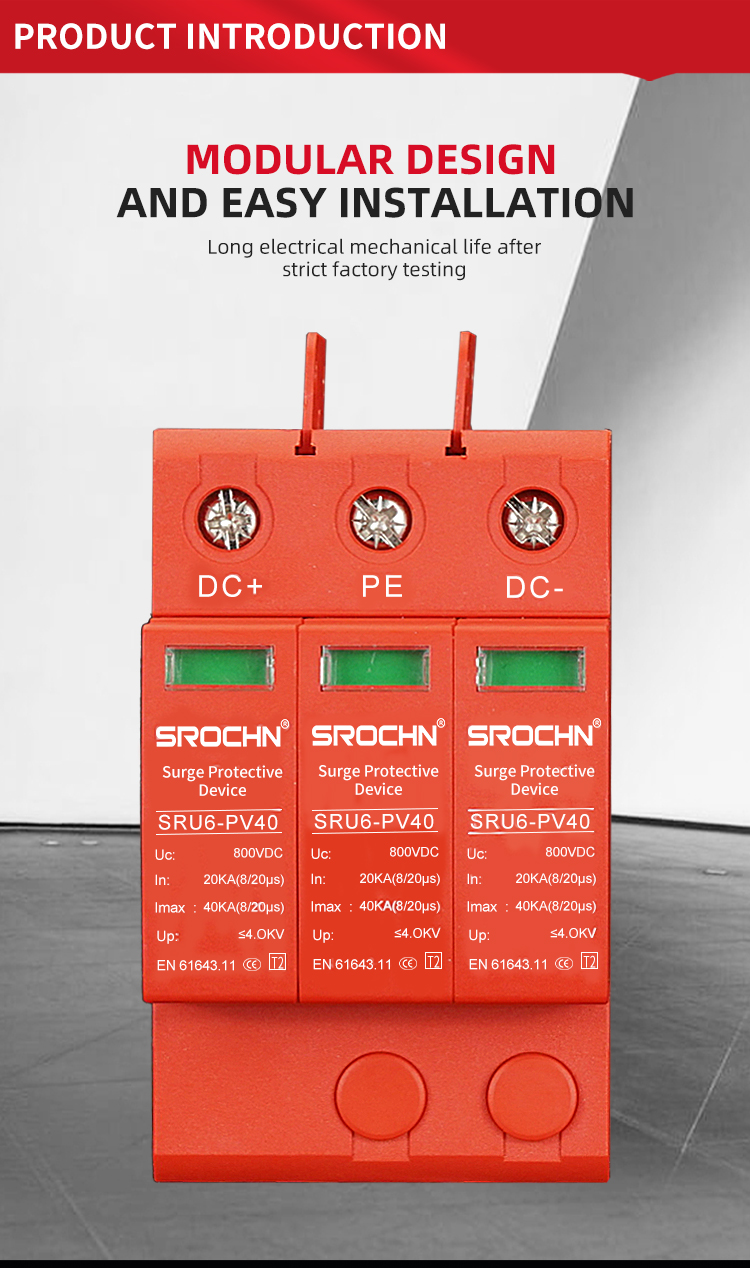

SPD Image 5

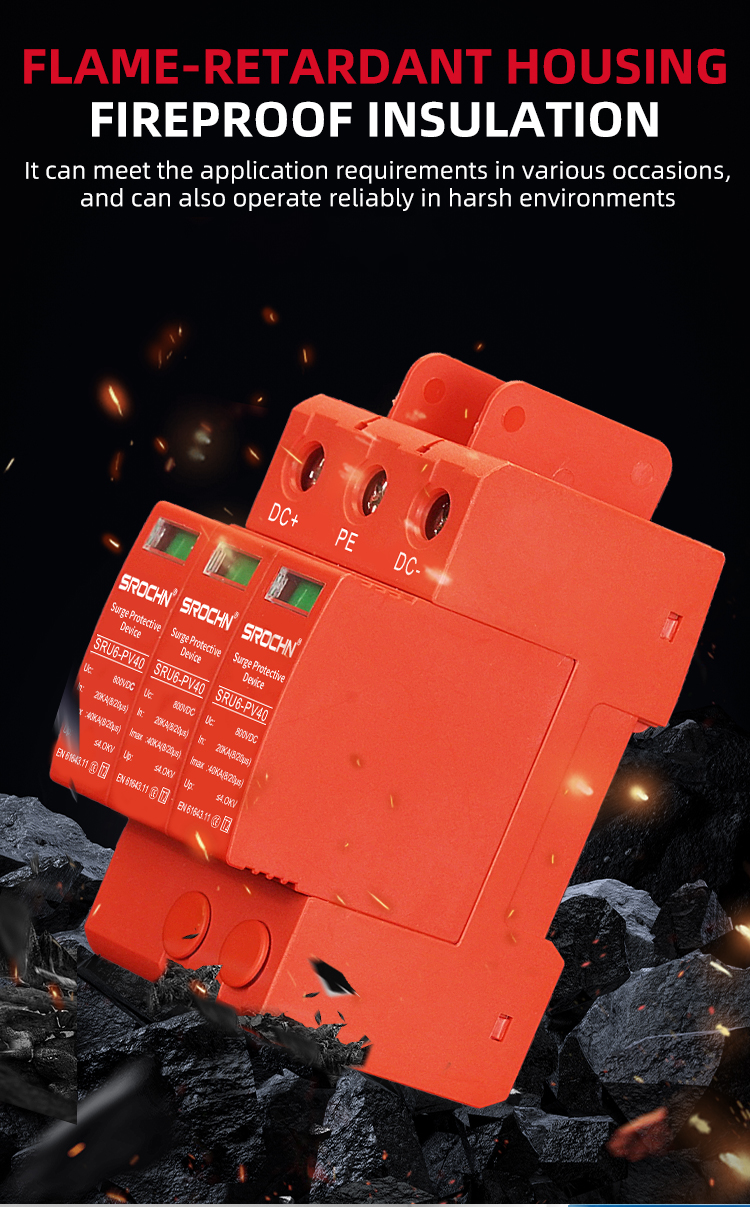

SPD Image 6

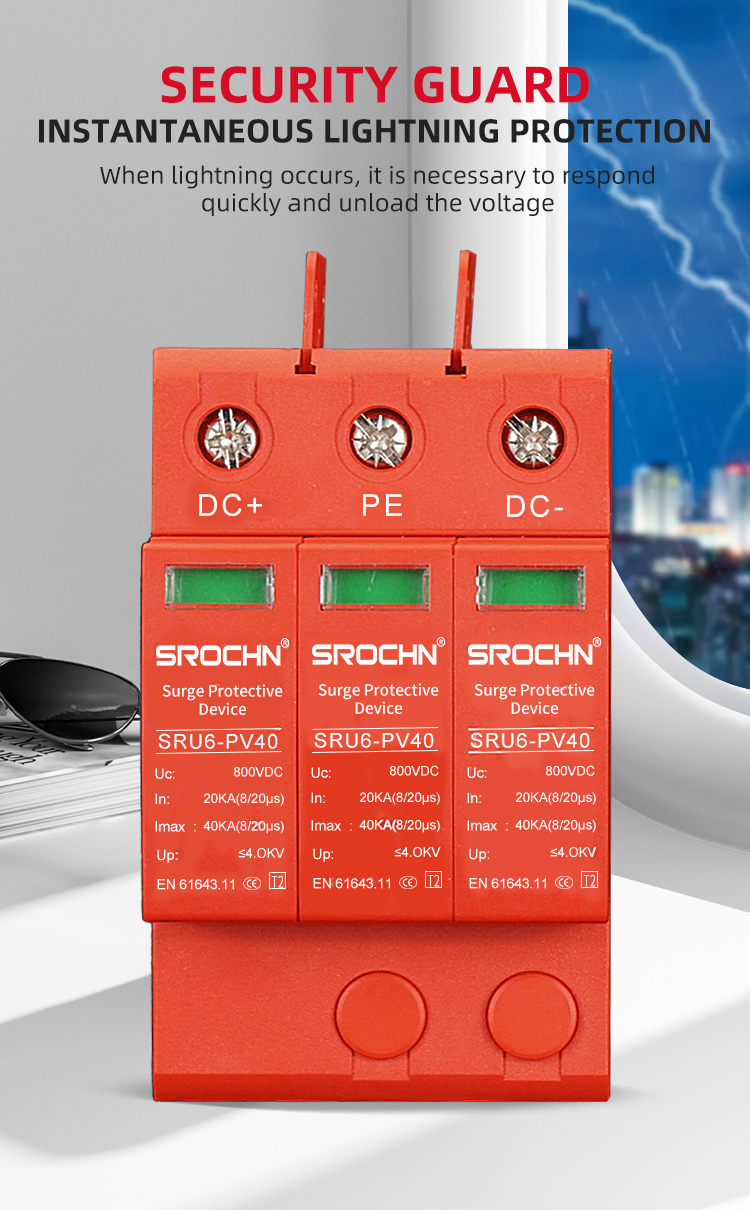

SPD Image 7
SPD Image 8
SPD Image 9
SPD Image 10
SPD Image 11
Frequently Asked Questions
What is the primary application for this 800VDC surge protector?
It is specifically designed for high voltage DC systems including electric vehicle infrastructure, renewable energy generation, and industrial power distribution networks.
How fast does the device respond to a surge?
The device features an ultra-fast response time of less than 25 nanoseconds, ensuring immediate voltage clamping during transient events.
Is the housing material fire-resistant?
Yes, the housing is constructed from high-quality plastic with a UL94 V0 rating, providing excellent flame retardancy for industrial environments.
Can this device operate in extreme weather conditions?
The unit is engineered to perform reliably within a wide temperature range from -45°C to +85°C.
What international standards does this SPD comply with?
It fully complies with the IEC 61643-11 international standards for surge protective devices.

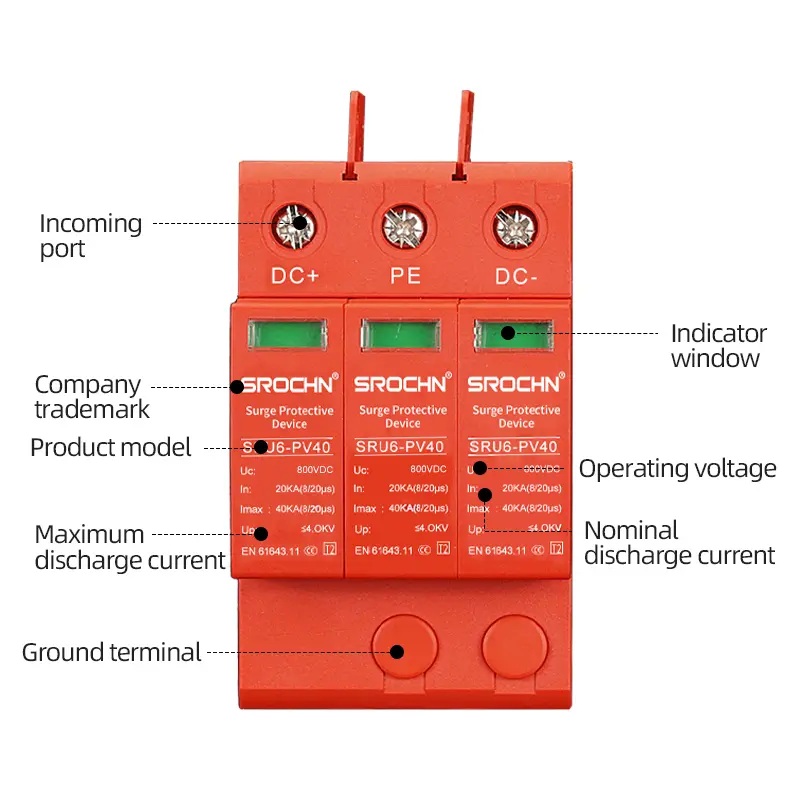

How is the operational status of the device monitored?
The unit includes clear visual status indicators on the front panel for easy operational monitoring and maintenance checks.
