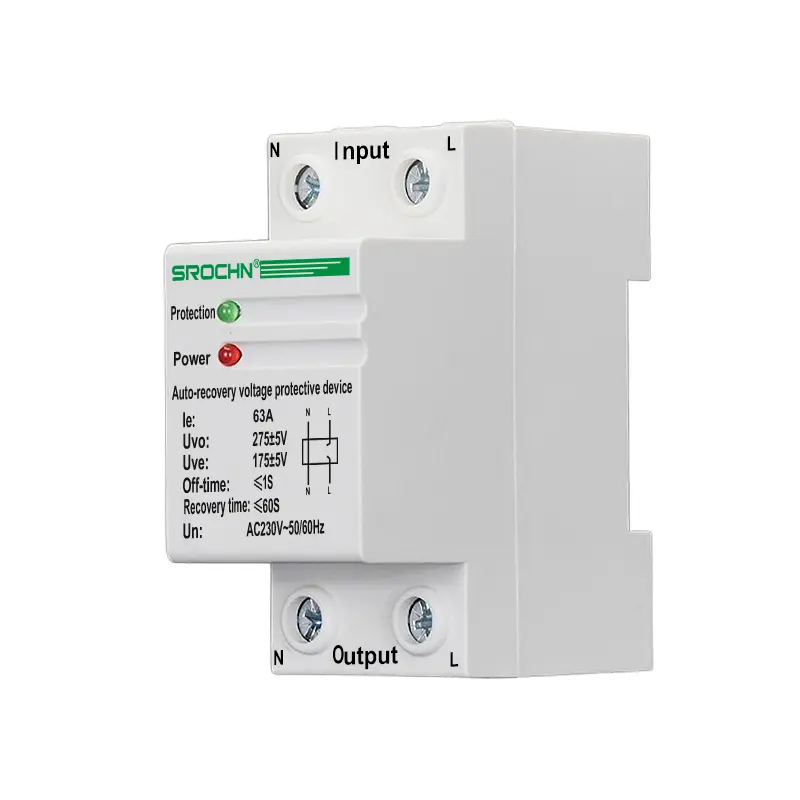

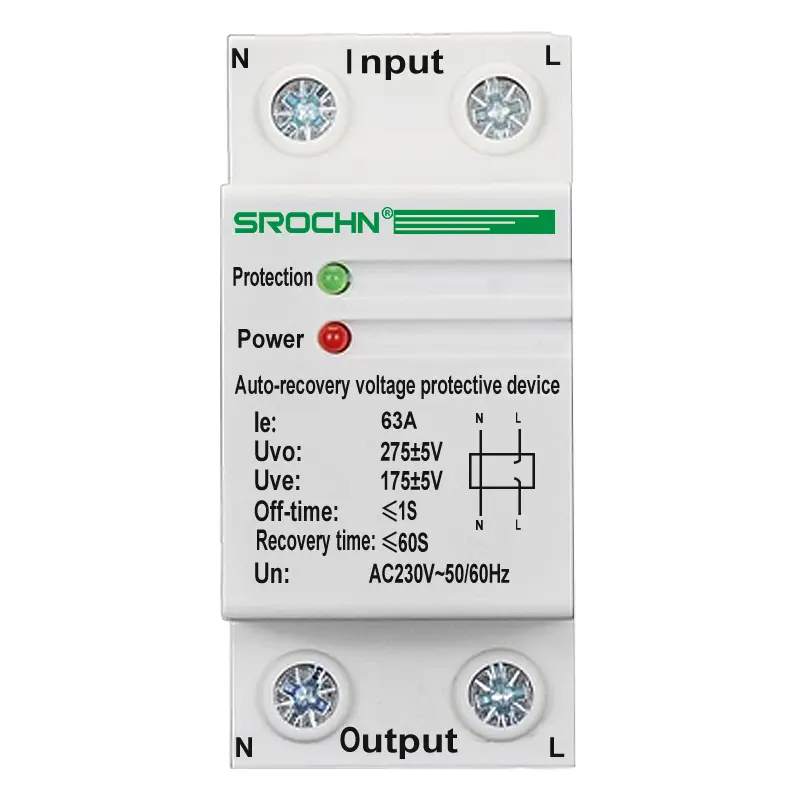

Wholesale 63A2P Overvoltage Automatic Reset Overvoltage and Undervoltage Protector Manufacturer, Factory

Overvoltage and undervoltage protectors are mainly used in the incoming lines of residential household distribution boxes or distribution lines that need to protect single-phase electrical equipment, such as power supply systems in homes and small offices, providing overvoltage and undervoltage protection for various electrical equipment such as air conditioners, refrigerators, and televisions.Generally installed at the incoming line of the household distribution box in a residential building or at the front end of the distribution line where single-phase electrical equipment needs to be protected.

Product Description

Product Description

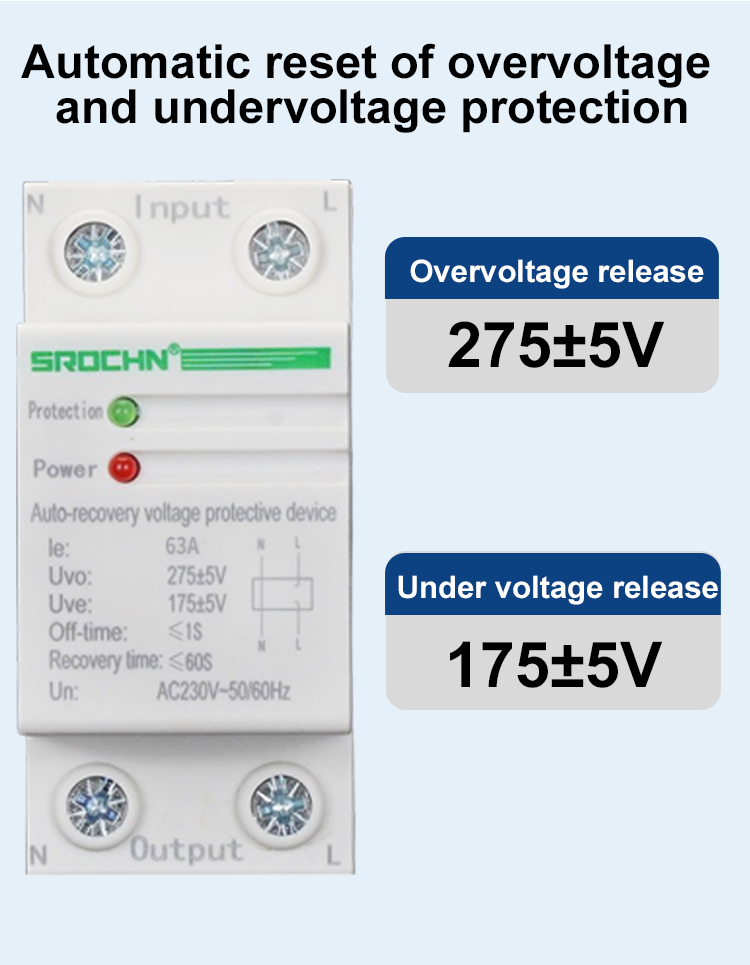

Overvoltage and undervoltage protection: When overvoltage or undervoltage occurs in the power supply line, it can quickly and safely cut off the circuit to prevent abnormal voltage from damaging terminal electrical appliances. Overvoltage action cut-off: AC270±5V; Undervoltage action cut-off: AC170±5V.

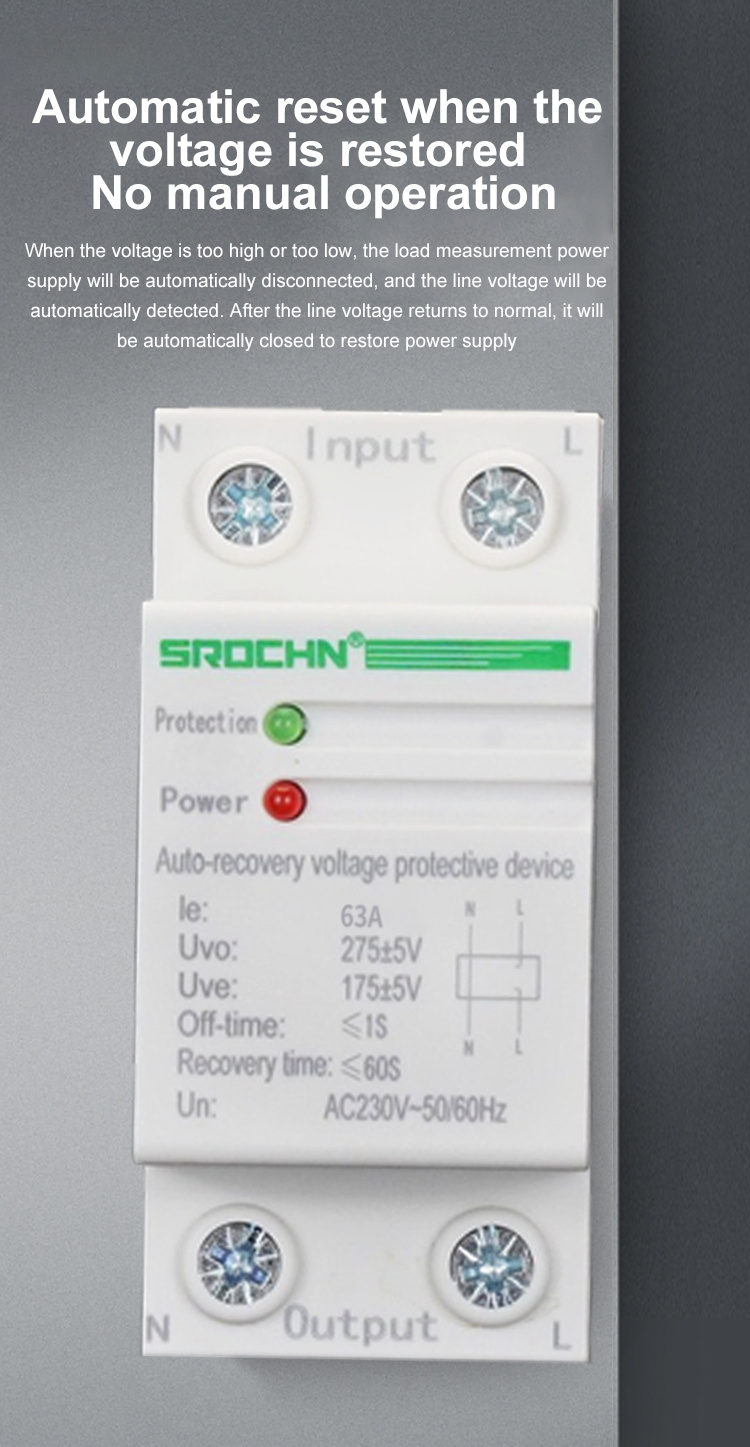

Automatic reset: Once the voltage returns to the normal value, the protector will automatically reconnect the circuit within the specified time. The power-off delay for power restoration is 30±5 seconds.
Reliability: When transient overvoltage occurs, the protector does not malfunction. It shows inverse-time action characteristics (≤1 second). The protector itself remains undamaged even under high fault voltage.

Working Principle

The interior is mainly composed of three parts: the voltage detection circuit, the control circuit, and the actuator. The voltage detection circuit monitors input voltage in real-time. When voltage exceeds or falls below set thresholds, the circuit transmits a signal to the control circuit, instructing the actuator to cut off the power supply. Once voltage stabilizes, the system automatically reconnects.

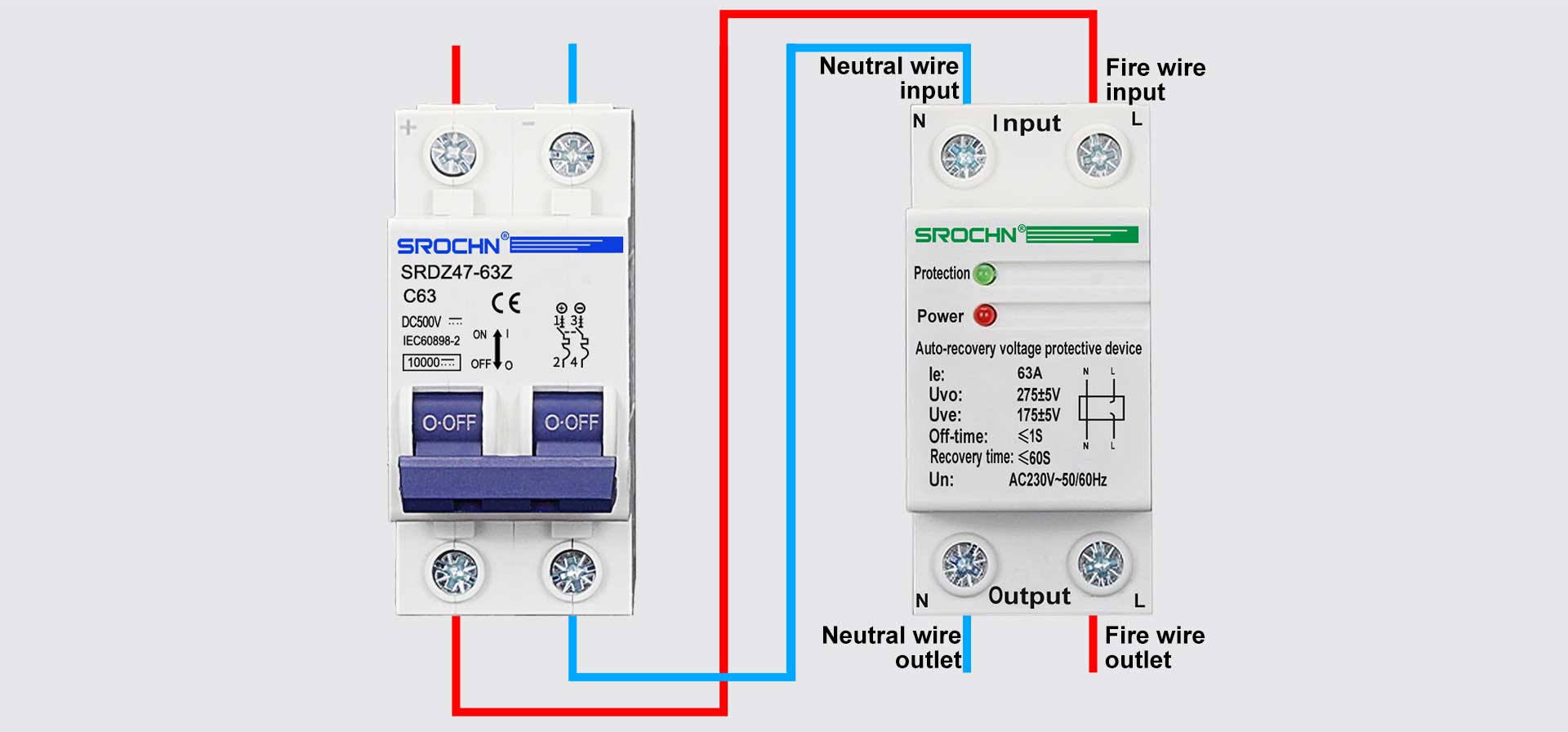

Wiring Method

Wiring Method

Parameter Information

Product name Auto-recovery voltage protective device Overvoltage starting value 275±5V
Rated current In 63A Undervoltage starting value 175±5V
The rated voltage AC230V A undervoltage Startup time ≤60s
The number of 2P Self power consumption <1W
Rated frequency 50/60Hz Electrical mechanical life >100,000 times

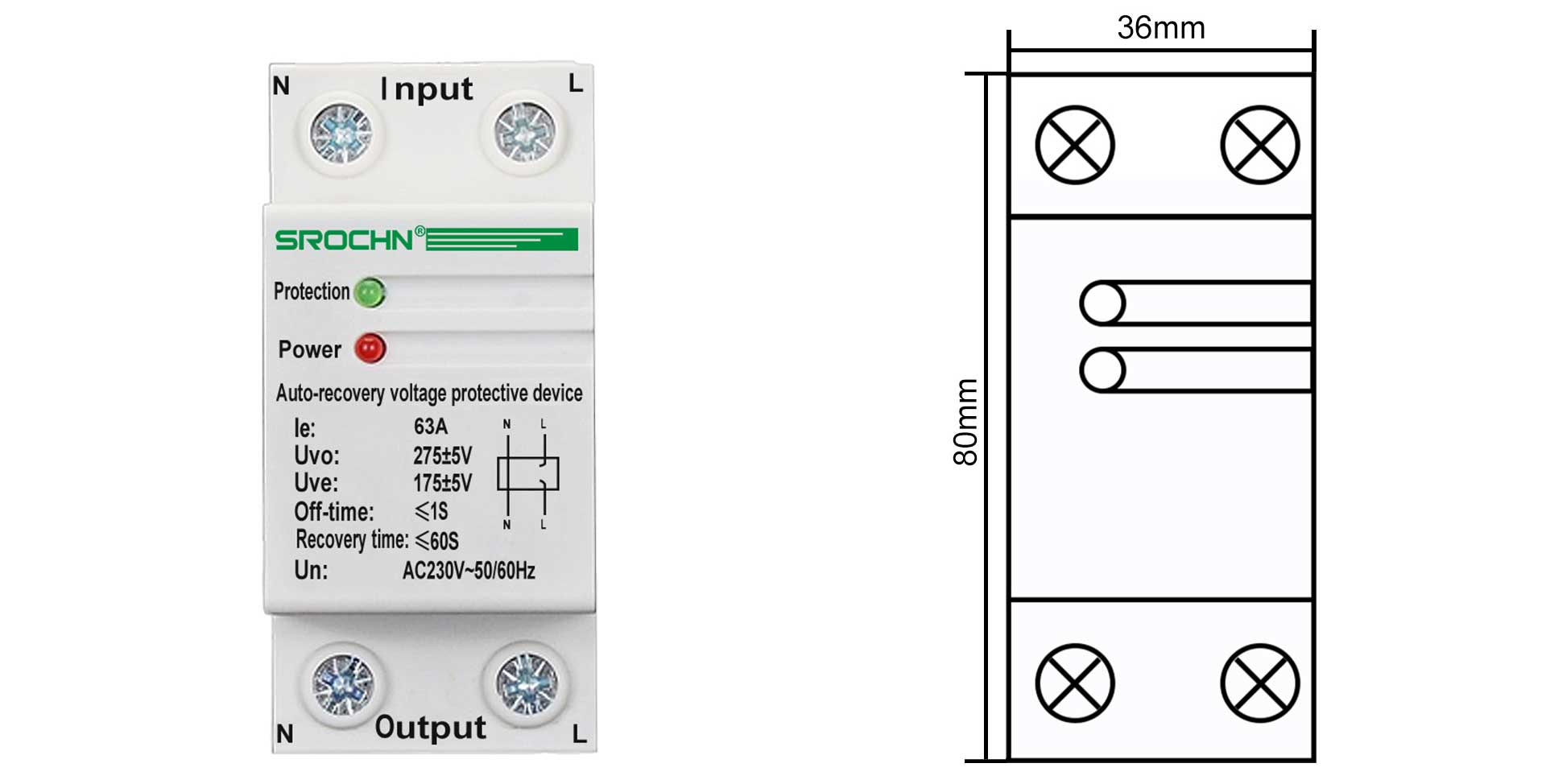

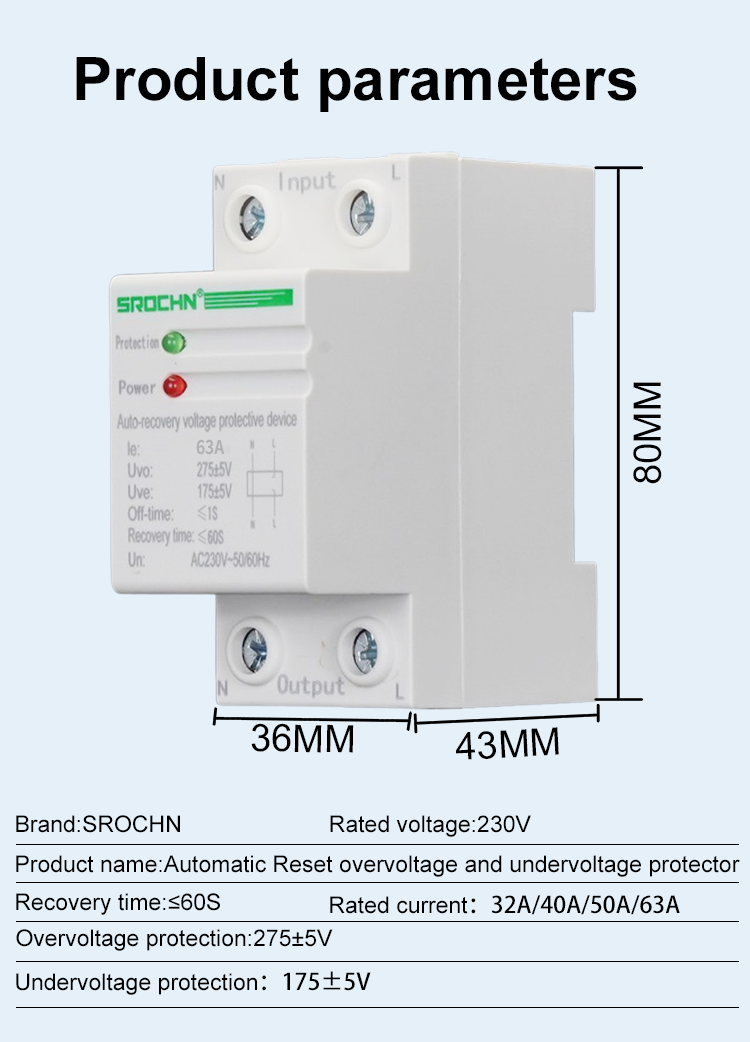

Product Size

Product Size

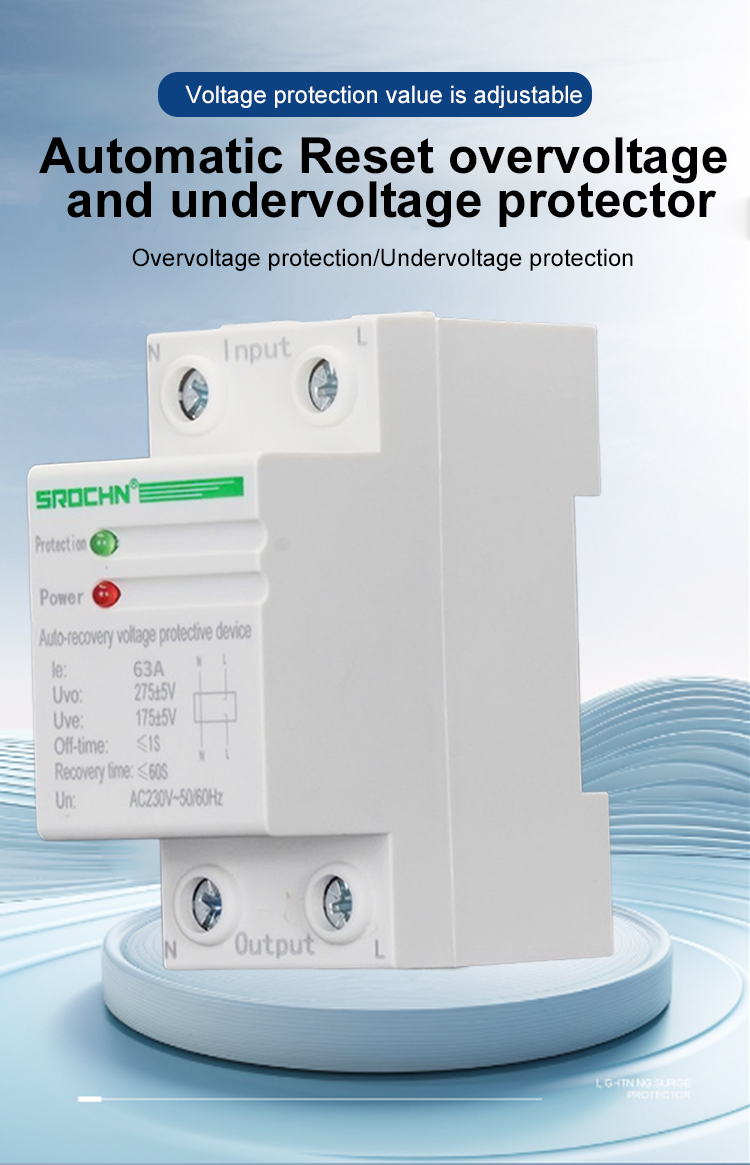

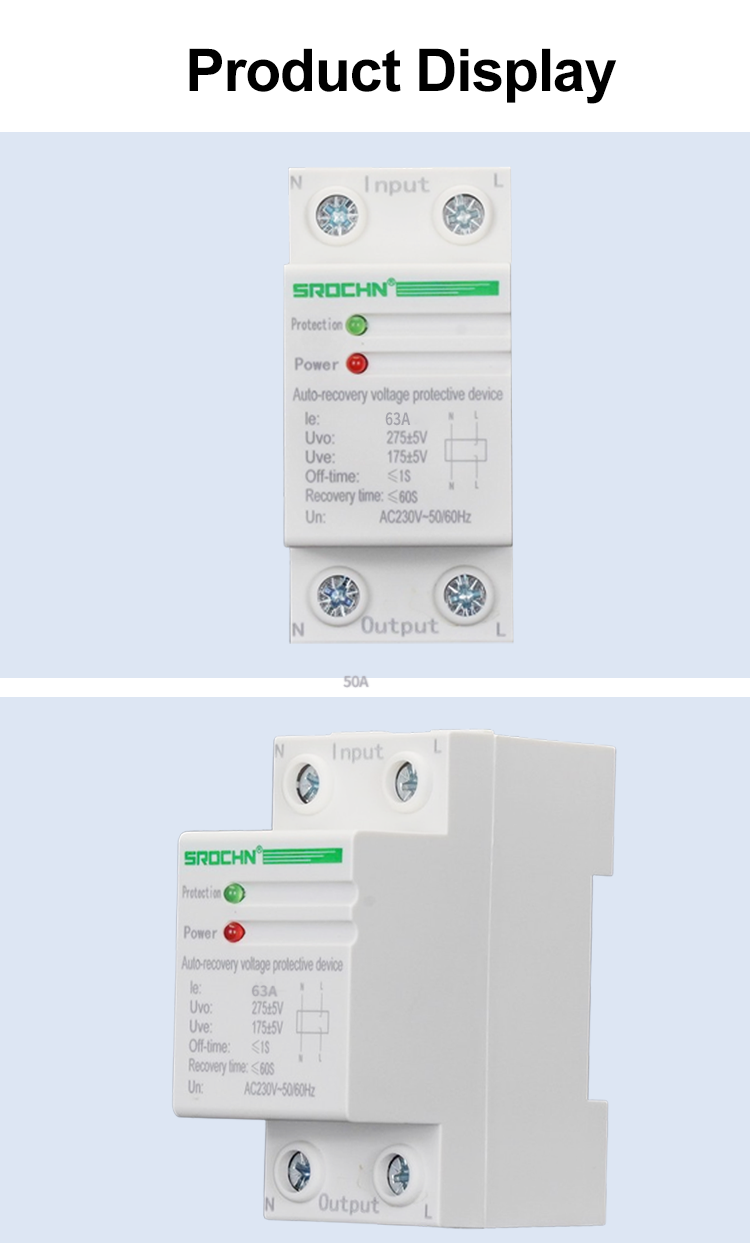

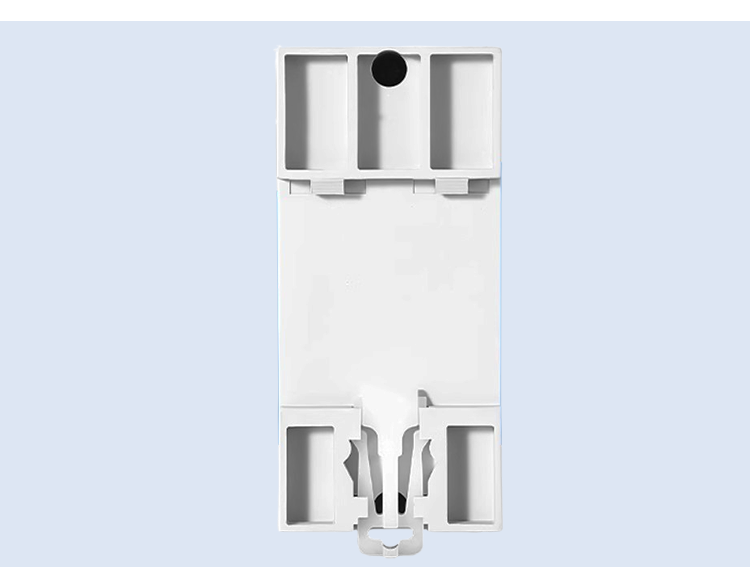

Detailed Pictures

Frequently Asked Questions

What is the main function of this device?
It protects electrical appliances by cutting off power during overvoltage (above 275V) or undervoltage (below 175V) conditions and automatically reconnecting when the voltage stabilizes.
How long does the automatic reset take?
The device features a power-off delay for restoration of approximately 30±5 seconds once the voltage returns to normal range.
What is the response time during a voltage fault?
The protector exhibits inverse-time action characteristics with an action time of ≤1 second for rapid circuit protection.
Can this device handle high-current applications?
Yes, the device is rated for a current (In) of up to 63A, making it suitable for various residential and commercial settings.
What is the expected lifespan of the protector?
The device is designed for high durability with an electrical and mechanical life exceeding 100,000 operations.
Does it consume a lot of power while monitoring?
No, the self-power consumption of the device is very efficient, rated at less than 1W.
