China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories
China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories
China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories
China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories
China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories
1 / 5
China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories
China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories
China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories
China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories
China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories

China 2P 500VDC T2 40kA Surge Protective Device 20kA SPD for Medium Voltage DC Systems Suppliers, Factories

2P 500VDC T2 Surge Protective Device is a highperformance solution specifically engineered to protect medium voltage DC systems against lightning strikes and transient overvoltages. This advanced twopole SPD features a durable plastic housing that provides excellent electrical insulation and mechanical protection while ensuring reliable performance in various environmental conditions. With a maximum discharge capacity of 40kA and nominal discharge current of 20kA, this device offers comprehensive surge protection for sensitive electronic equipment operating in 500VDC applications. The sophisticated design incorporates stateoftheart protection technology to prevent damage from electrical surges, ensuring operational continuity and equipment longevity in medium voltage DC environments.

Send Inquiry

Product Description

Key Features and Advantages

  • Medium Voltage DC Protection: Specifically designed for 500VDC systems, providing reliable two-pole protection for critical equipment.
  • High Surge Capacity: Maximum discharge current of 40kA (8/20μs) ensures robust defense against direct and indirect lightning strikes.
  • Advanced Protection Technology: Utilizes premium metal oxide varistors with ultra-fast response time (<25ns) for optimal voltage clamping performance.
  • Enhanced Safety Mechanisms: Integrated thermal disconnect protection and fail-safe operation system prevent catastrophic failures.
  • Visual Status Monitoring: Clear LED indicators provide real-time operational status and end-of-life indication.
  • Easy Installation: DIN rail mounting with screw terminal connections simplifies installation process.
  • Wide Temperature Operation: Maintains stable performance across -45°C to +85°C temperature range.
  • International Standards Compliance: Meets IEC 61643-11 and EN 61643-11 safety standards.

Application Scenarios

Industrial Automation Systems
Protects PLCs, motor drives, and control equipment in manufacturing facilities.
Solar Power Applications
Safeguards solar inverters and monitoring systems in photovoltaic installations.
Telecommunications Infrastructure
Provides protection for communication equipment and network devices.
Transportation Systems
Ensures reliability of signaling and control equipment in railway applications.
Building Management
Protects security systems and automation equipment in commercial buildings.
Marine Applications
Suitable for marine electronics and navigation systems.
Energy Storage Systems
Provides protection for battery management systems in DC power applications.

Technical Specifications

Parameter Specification Value
Maximum Discharge Current 40kA (8/20μs)
Nominal Discharge Current 20kA (8/20μs)
Rated Voltage 500VDC
Protection Level ≤4.0kV
Protection Level Class T2 (Class II)
Number of Poles 2P
Housing Material Flame-Retardant Plastic (UL94 V0)
Response Time <25 nanoseconds
Operating Temperature Range -45°C to +85°C
Protection Mode L+/L-/PE
Connection Type Screw terminal
Mounting DIN Rail (35mm)
Protection Degree IP20
Standards Compliance IEC 61643-11, EN 61643-11
This surge protective device combines advanced technology with reliable performance, delivering comprehensive protection for medium voltage DC systems against lightning-induced surges and transient overvoltages. Its two-pole configuration, excellent protective characteristics, and robust construction make it an ideal choice for ensuring the safety and longevity of sensitive electronic equipment in various industrial applications. The device meets international standards and offers peace of mind through its proven performance in demanding electrical environments.

Detailed Pictures

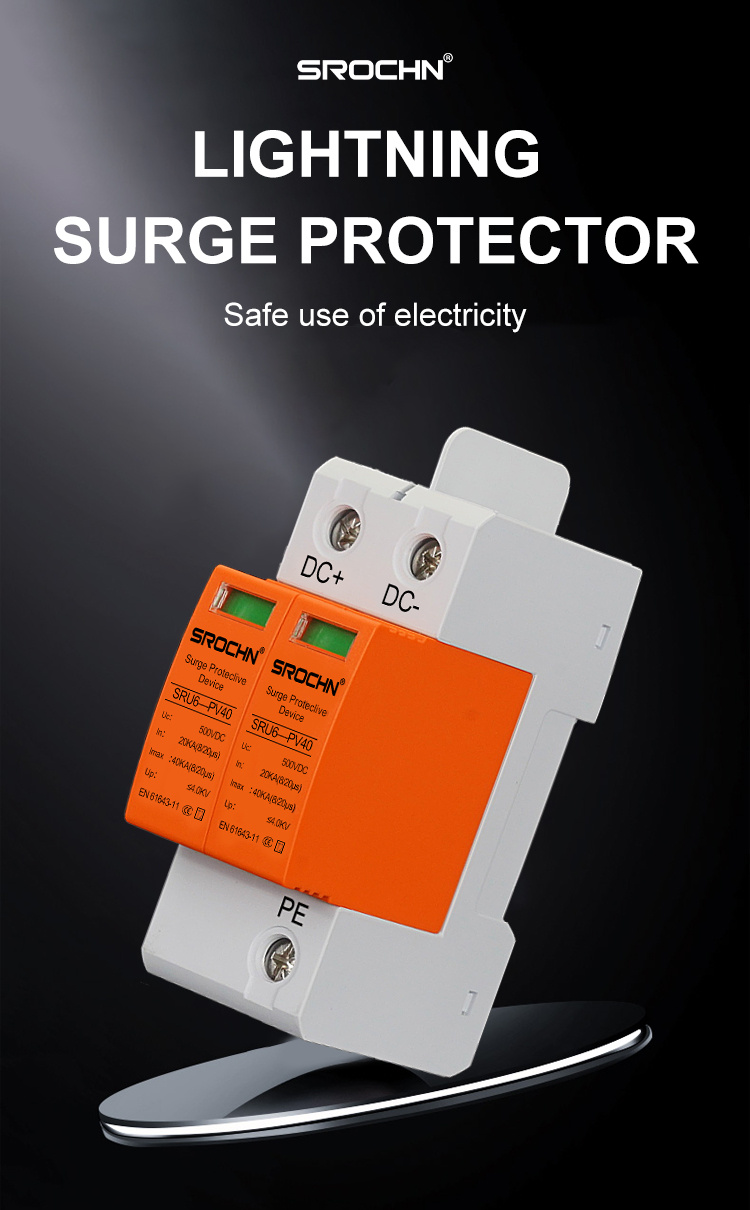

2P 500VDC T2 40kA Surge Protective Device 20kA SPD01
2P 24VDC T2 40kA Surge Protective Device02

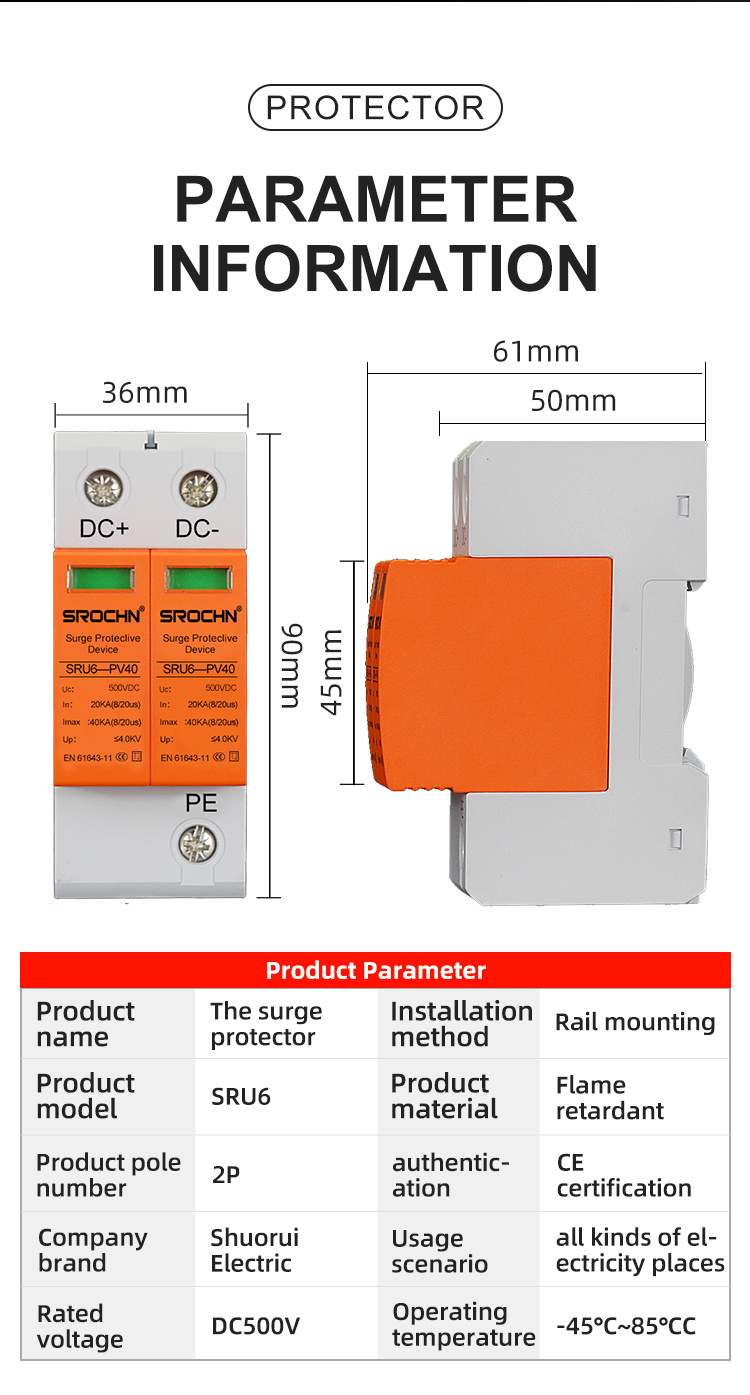

2P 500VDC T2 40kA Surge Protective Device 20kA SPD03

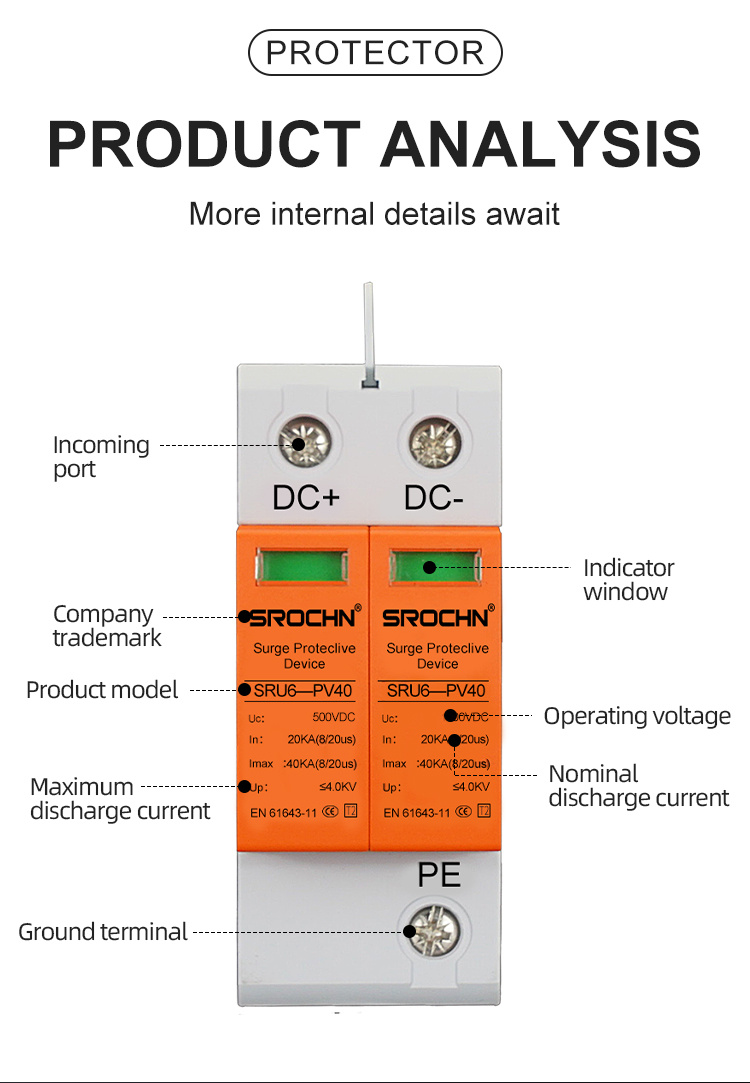

2P 500VDC T2 40kA Surge Protective Device 20kA SPD04

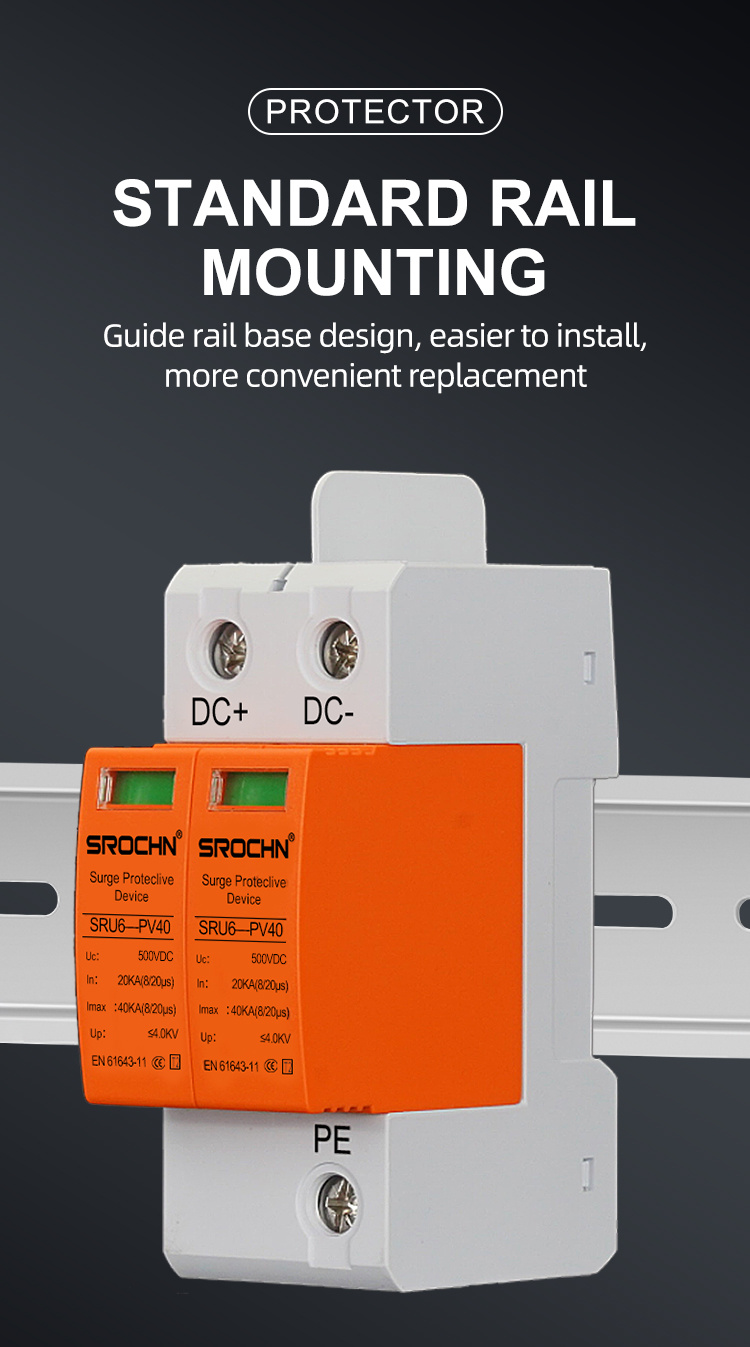

2P 500VDC T2 40kA Surge Protective Device 20kA SPD05

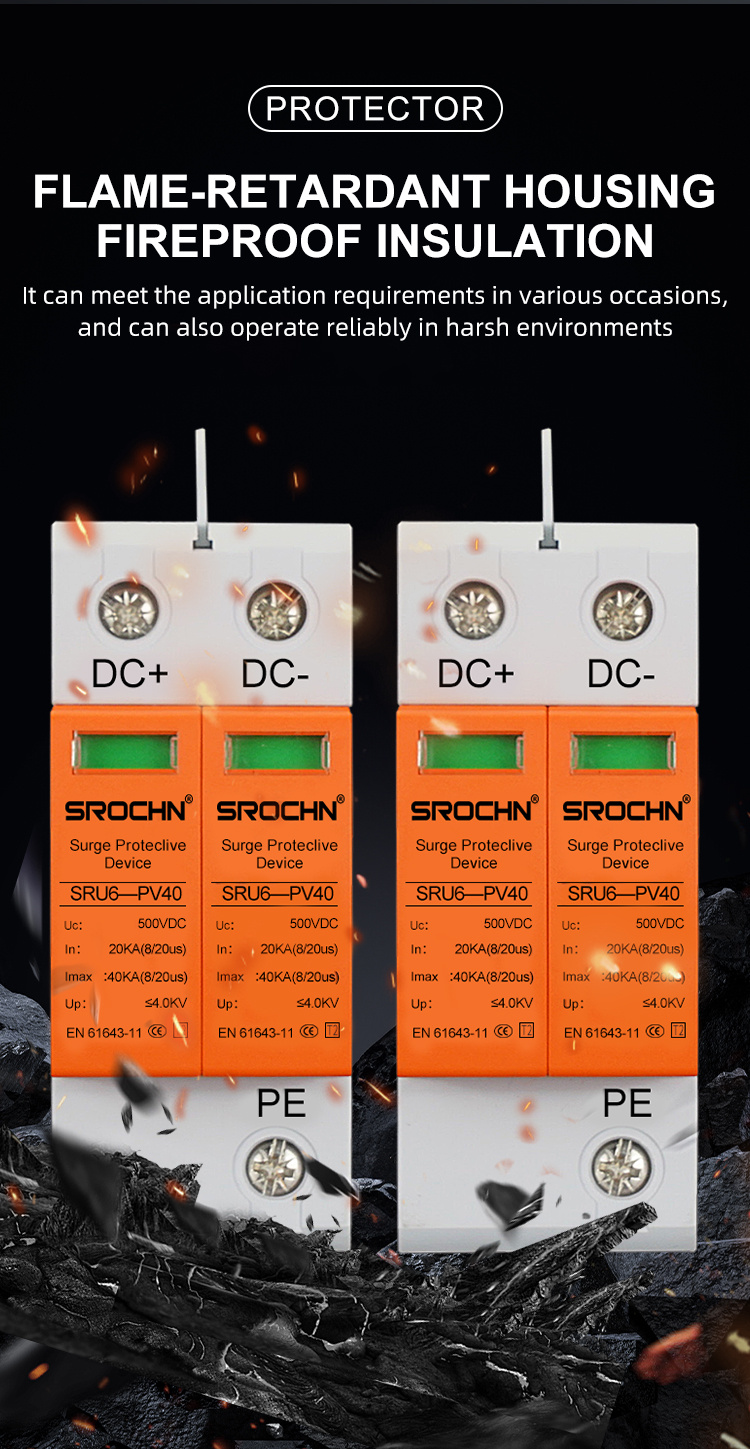

2P 500VDC T2 40kA Surge Protective Device 20kA SPD06

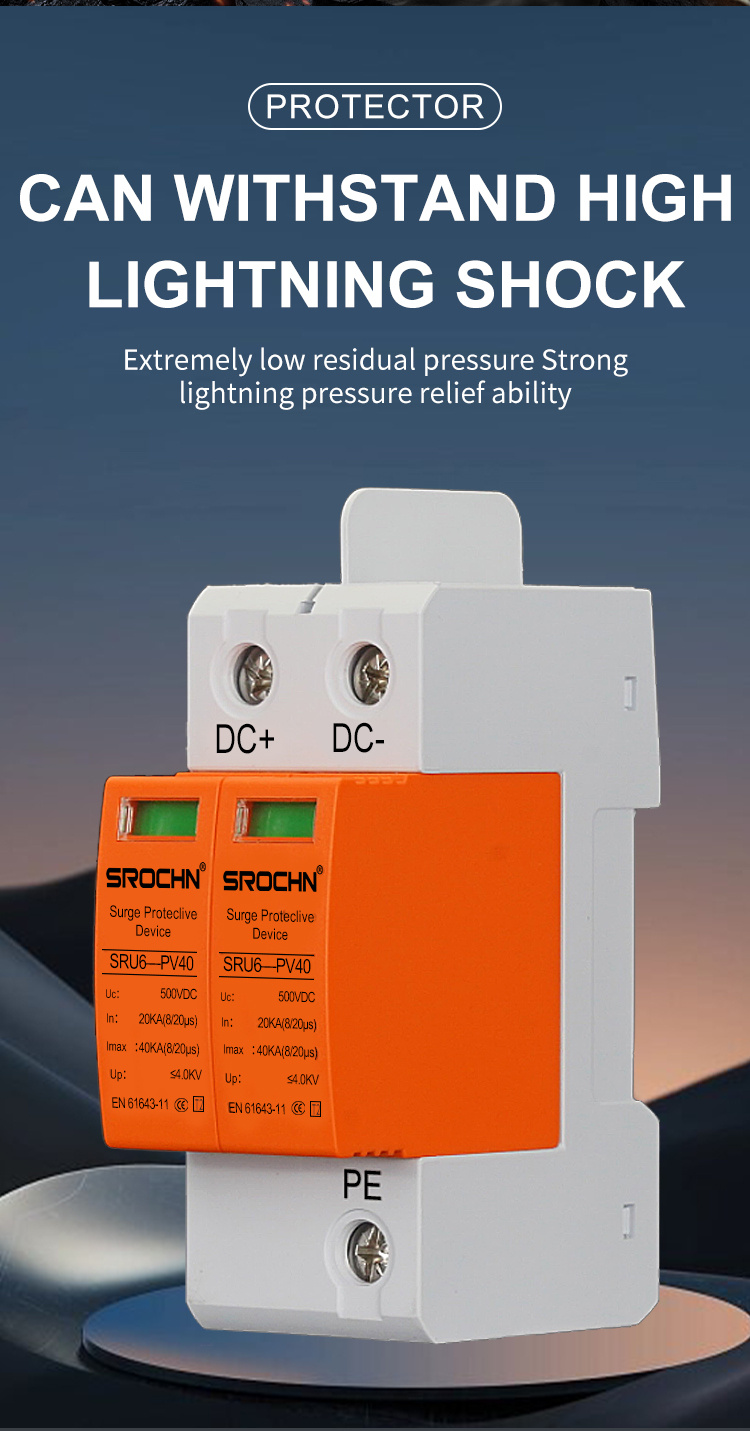

2P 500VDC T2 40kA Surge Protective Device 20kA SPD07
2P 24VDC T2 40kA Surge Protective Device08

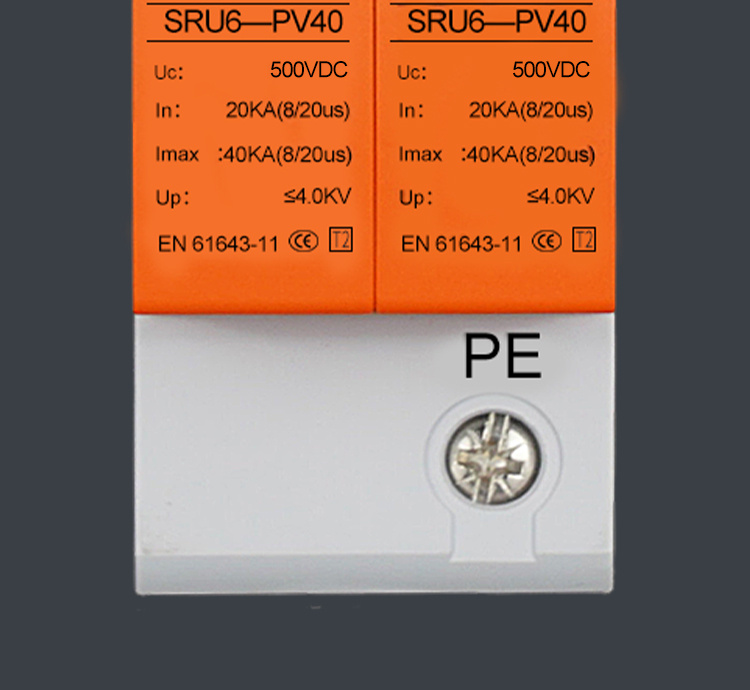

2P 500VDC T2 40kA Surge Protective Device 20kA SPD09
2P 24VDC T2 40kA Surge Protective Device10
2P 24VDC T2 40kA Surge Protective Device11
2P 24VDC T2 40kA Surge Protective Device12

Frequently Asked Questions

Q1 What is the primary application of this 500VDC Surge Protective Device (SPD)?
This SPD is specifically engineered to protect medium voltage DC systems, including solar photovoltaic installations, industrial automation systems, and energy storage setups, against transient overvoltages and lightning-induced surges.
Q2 What does the 2P configuration mean for installation?
The 2P (two-pole) configuration provides dedicated protection for both the positive (+) and negative (-) lines of your DC system relative to the protective earth (PE), ensuring comprehensive safety coverage.
Q3 How does the visual status indicator work?
The device features a clear front-panel indicator. Green indicates the device is operating normally and providing full protection. When the indicator changes color (typically to red), it means the module has reached its end-of-life and must be replaced.
Q4 Is this surge protector easy to install on standard panels?
Yes, it features standard 35mm DIN rail mounting and secure screw terminal connections, making it extremely easy to integrate into standard industrial control panels and distribution boxes.
Q5 What safety standards does this device comply with?
This surge protective device fully complies with international safety and performance standards, specifically meeting the rigorous requirements of IEC 61643-11 and EN 61643-11.
Q6 What is the response time of this surge protector?
Equipped with premium metal oxide varistors (MOVs), the device reacts in less than 25 nanoseconds, rapidly clamping high-voltage surges before they can reach and damage your sensitive downstream equipment.
