Wholesale 3P 500VDC T2 Surge Protective Device 40kA 20kA SPD for Lightning Protection in DC Systems Manufacturers, Suppliers

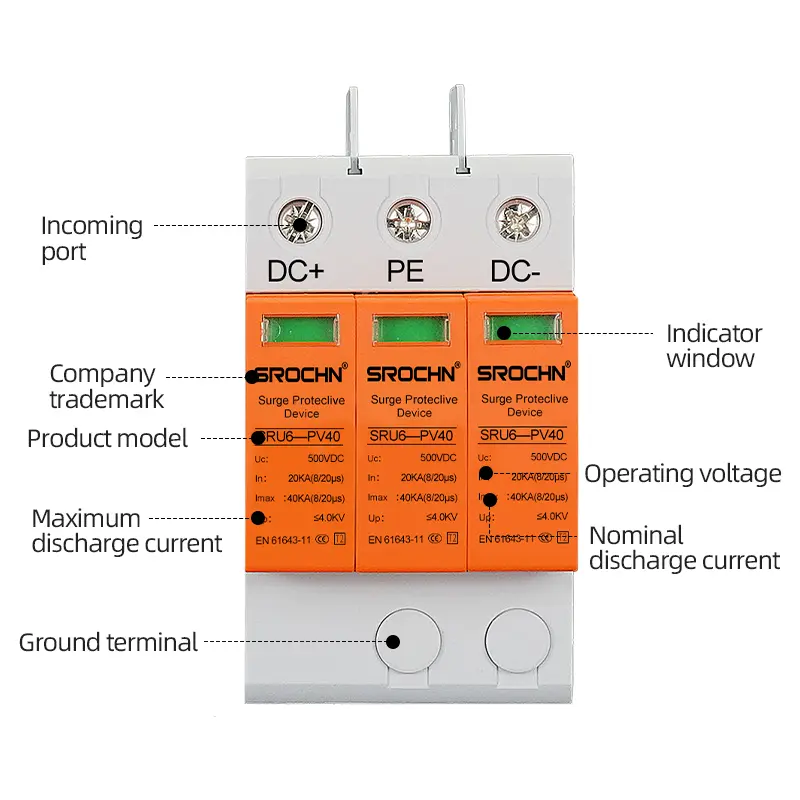

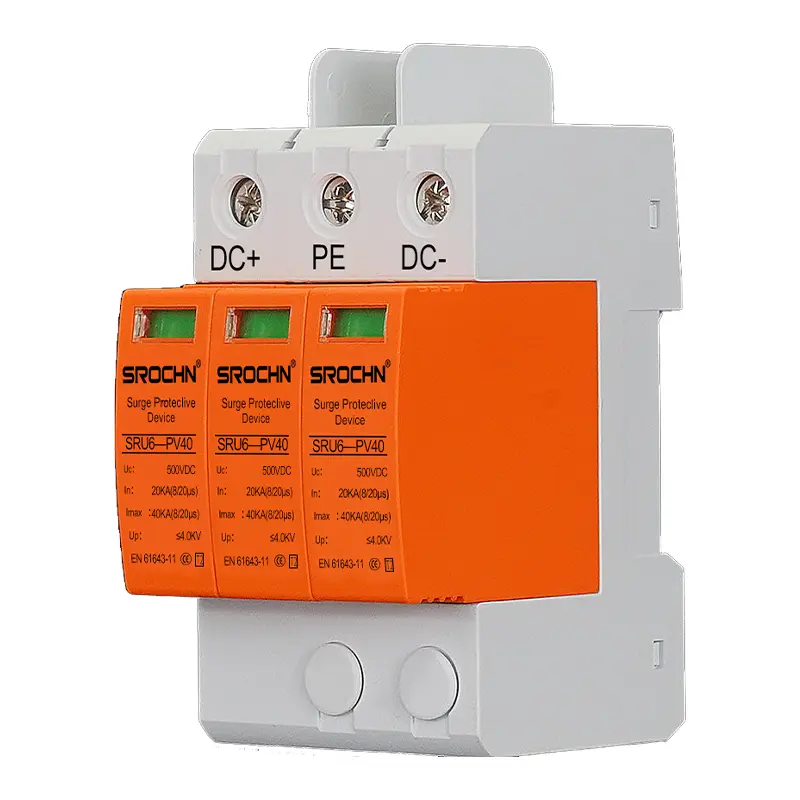

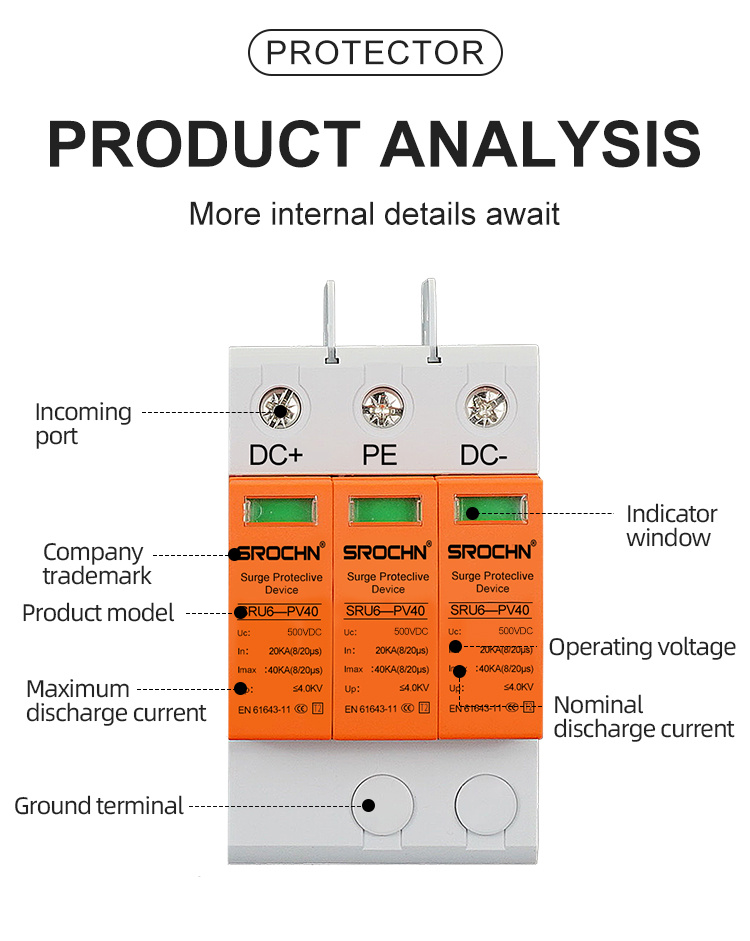

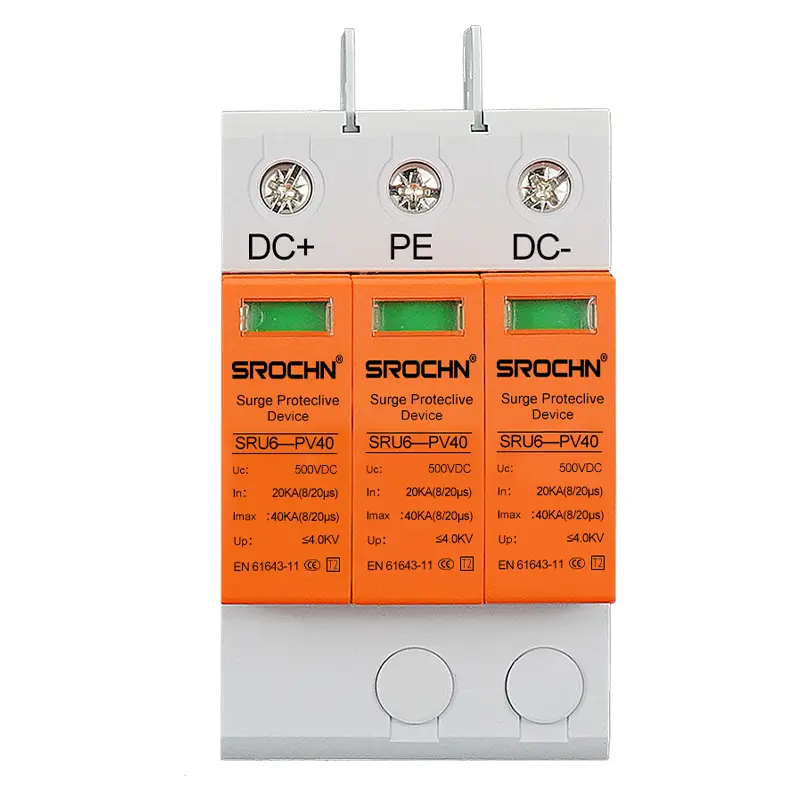

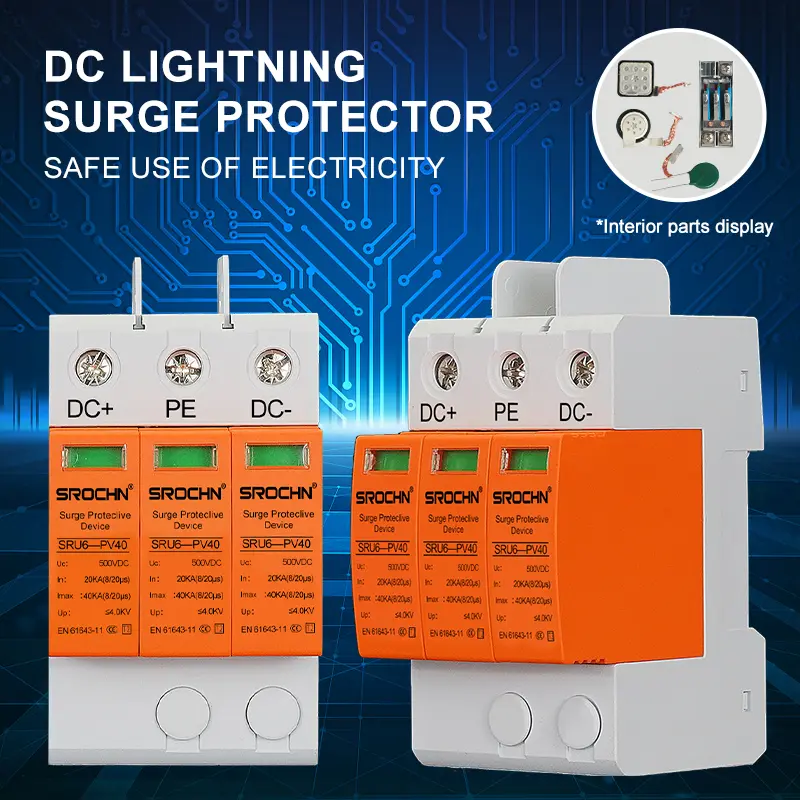

This 3P 500VDC T2 Surge Protective Device is a highperformance lightning protection solution specifically engineered for DC power systems. Designed with advanced surge suppression technology, this device provides reliable protection against lightninginduced surges and transient overvoltages. The unit features a robust plastic housing in professional gray color, offering excellent electrical insulation and durability for harsh environmental conditions. With its maximum discharge capacity of 40kA and standard discharge current of 20kA, this SPD ensures the safety and reliability of critical DC equipment.

Product Description

Key Features and Advantages

Superior Lightning Protection Maximum discharge capacity of 40kA (8/20μs) provides robust protection against direct and indirect lightning strikes.
High Voltage DC Compatibility Specifically designed for 500VDC systems, making it ideal for solar farms and industrial DC infrastructure.
Advanced Thermal Protection Integrated thermal disconnect mechanism automatically disconnects during overload conditions, preventing fire hazards.
Visual Status Indication Clear LED indicators show operational status and end-of-life condition for easy maintenance monitoring.
Remote Signaling Capability Auxiliary contacts enable remote monitoring and integration with building management systems.

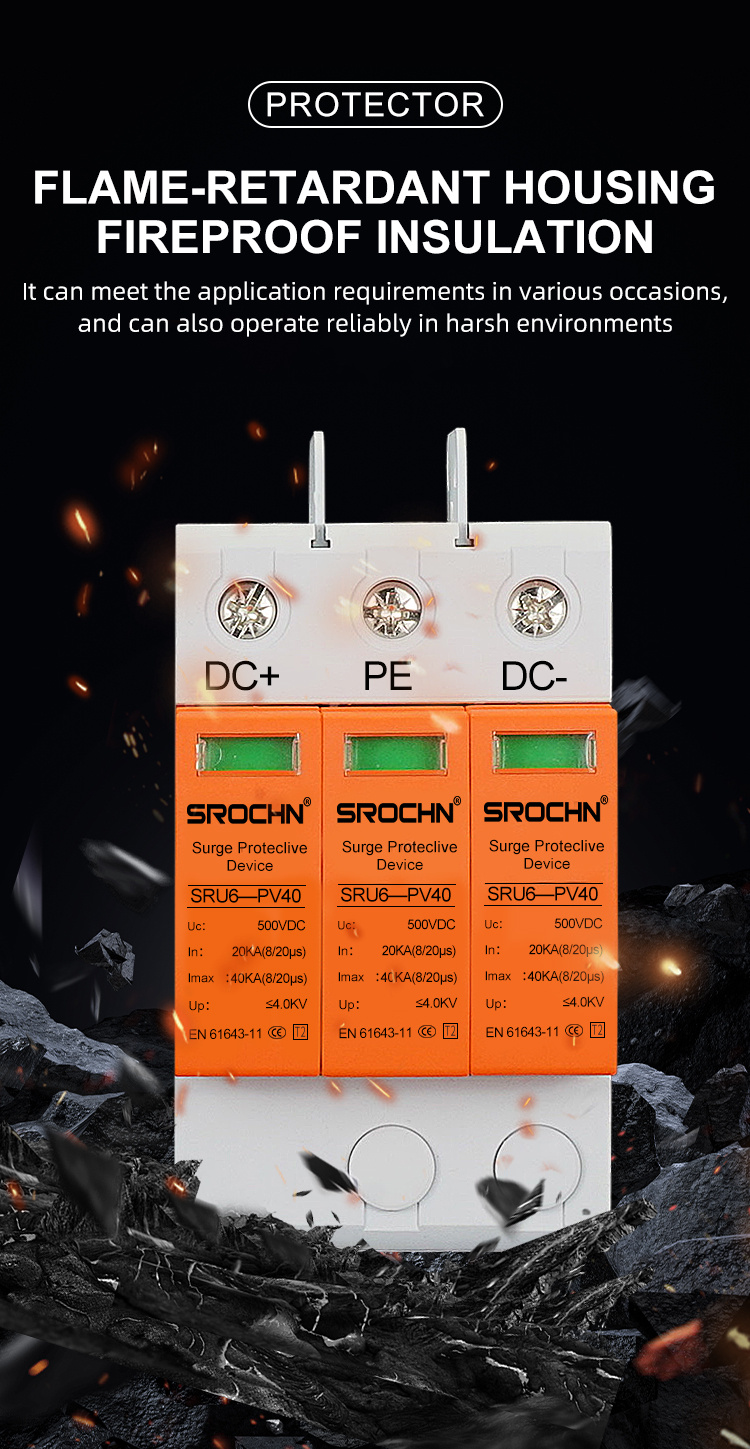

Robust Construction UL94 V0 rated plastic housing ensures excellent flame retardancy and mechanical protection.

Application Scenarios

Solar Power Plants
Industrial DC Systems
EV Charging Stations
Telecommunications
Railway & Transportation
Energy Storage Systems

Technical Specifications

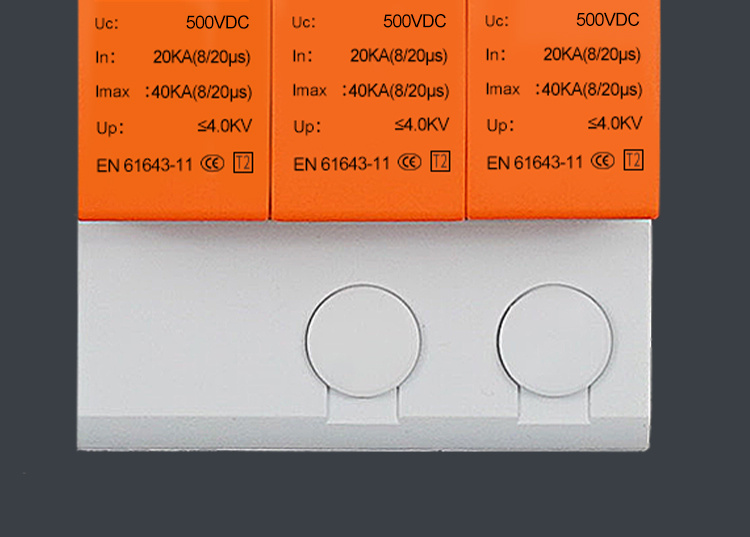

Maximum Discharge Current40kA (8/20μs)
Nominal Discharge Current20kA (8/20μs)
Protection Level (Up)≤4.0kV
Rated Voltage500VDC
Type / PolesT2 (Class II) / 3P
Housing MaterialPlastic (UL94 V0) - Gray
Response Time<25ns
Protection ModeL+/L-/PE
Operating Temperature-45°C to +85°C
Protection LevelIP20
StandardsIEC 61643-11, EN 61643-11

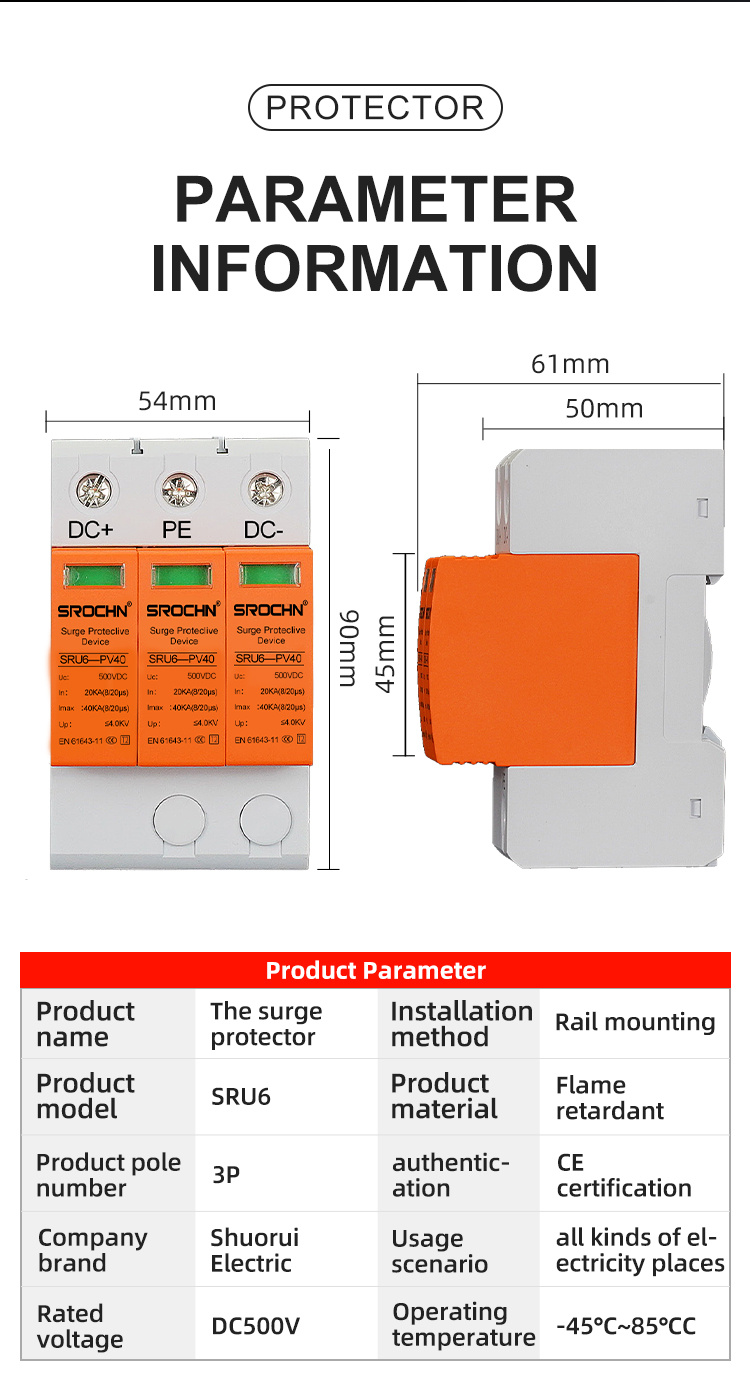

Dimensions / Weight90x72x65mm / 450g
This surge protective device offers comprehensive lightning protection for high-voltage DC systems, combining advanced technology with reliable performance. Its robust design and excellent technical characteristics make it an ideal choice for ensuring system reliability and equipment protection in various demanding applications.

Product Gallery

Frequently Asked Questions (FAQ)

What is the maximum discharge capacity of this SPD?
This device features a maximum discharge current (Imax) of 40kA (8/20μs), providing superior protection against surge events.
Is it suitable for solar power systems?
Yes, it is specifically designed for 500VDC systems, making it perfect for solar inverters, combiner boxes, and PV installations.
How do I know if the device needs replacement?
The SPD is equipped with clear visual LED indicators that show its operational status and signal when it has reached its end-of-life.
Does this SPD support remote monitoring?
Yes, it includes auxiliary contacts that allow for remote signaling and integration into building management or monitoring systems.
What is the fire safety rating of the housing?
The device is housed in a UL94 V0 rated plastic material, which provides the highest level of flame retardancy for electrical safety.
What standards does this device comply with?
It fully complies with international standards IEC 61643-11 and EN 61643-11 for surge protective devices.
