Our 3P 1500VDC T2 Surge Protective Device represents the cutting edge of surge protection technology for ultrahigh voltage direct current systems. This advanced SPD is specifically engineered to provide comprehensive protection against lightninginduced surges and transient overvoltages in demanding 1500VDC applications. The device features a highperformance plastic housing in professional gray color, offering superior electrical insulation and mechanical durability. With an impressive maximum discharge capacity of 40kA and nominal discharge current of 20kA, this threepole protector delivers unmatched reliability in extreme electrical environments, ensuring complete protection for critical highvoltage equipment and systems.

Send Inquiry

Product Description

Key Features and Advantages
Ultra-High Voltage Protection: Designed for 1500VDC systems in demanding industrial applications.
Superior Surge Handling: 40kA (8/20μs) max discharge capacity for lightning defense.
Advanced Multistage Protection: Premium metal oxide varistors for optimal voltage clamping.
Thermal Management: Integrated thermal disconnect prevents overheating for failsafe operation.
Comprehensive Monitoring: Multicolor LED indicators for real-time operational status.
Remote Interface: Dry contact terminals for building management system integration.
Robust Safety: Arc-quenching technology and flame-retardant housing.
Ultra-Fast Response: Nanosecond-level reaction speed (<25ns) for immediate protection.
Application Scenarios
  • Utility-Scale Solar Power Plants: Inverters, combiner boxes, and grid-tie equipment.
  • Industrial High-Voltage Systems: Motor drives, power supplies, and control systems.
  • EV Ultra-Fast Charging: Next-generation DC charging stations and power networks.
  • Railway and Metro Systems: Traction power systems and signaling equipment.
  • Large-Scale Energy Storage: Battery banks and power conversion systems.
  • Industrial Manufacturing: Automotive, aerospace, and semiconductor industries.
  • Telecommunications: DC power systems in data centers and communication networks.
Technical Specifications
Maximum Discharge Current40kA (8/20μs)
Nominal Discharge Current20kA (8/20μs)
Protection Level (Up)≤ 4.0kV
Rated Voltage1500VDC
Protection LevelT2 (Class II)
Number of Poles3P
Response Time< 25 nanoseconds
Operating Temperature-45°C to +85°C
Protection ModeL+/L-/PE
Protection DegreeIP20
Standards ComplianceIEC 61643-11, EN 61643-11
This surge protective device combines cutting-edge technology with robust engineering, delivering comprehensive lightning and surge protection for ultra-high voltage DC systems. Its exceptional performance characteristics, advanced safety features, and reliable operation make it the ideal choice for critical applications where system integrity and equipment protection are of utmost importance.
Detailed Product Display

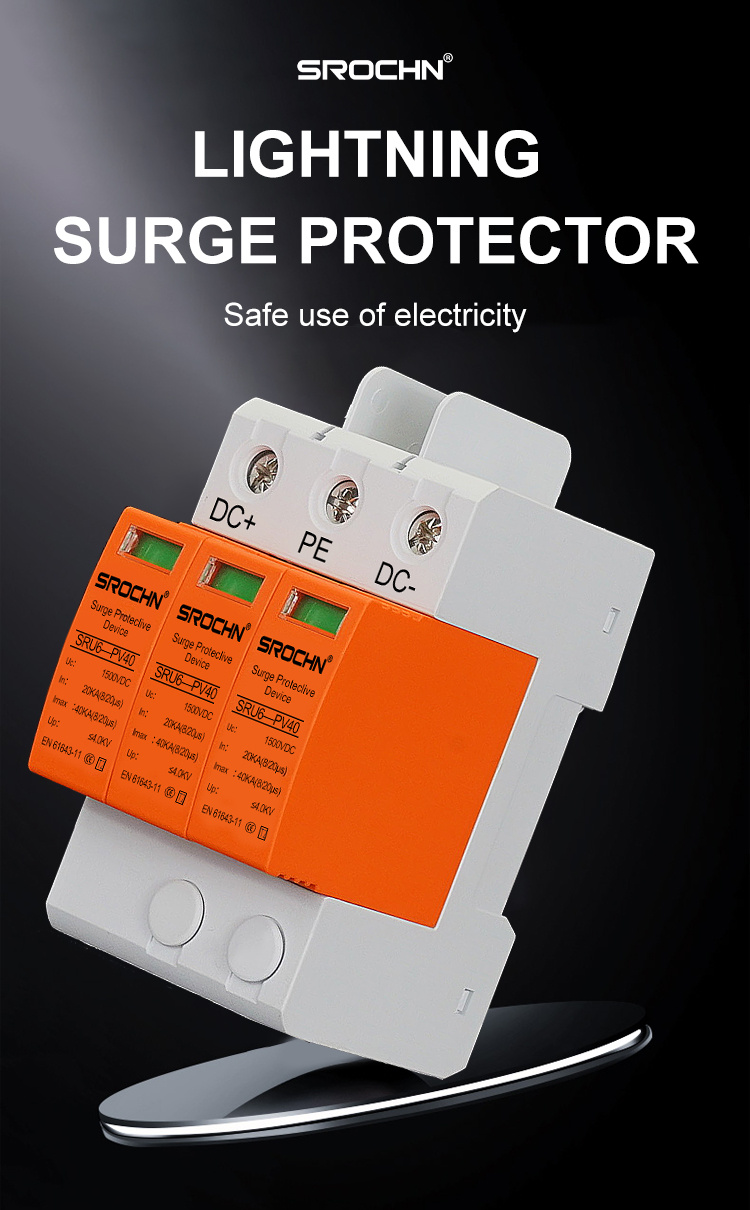

3P 1500VDC SPD 01
3P 1500VDC SPD 02

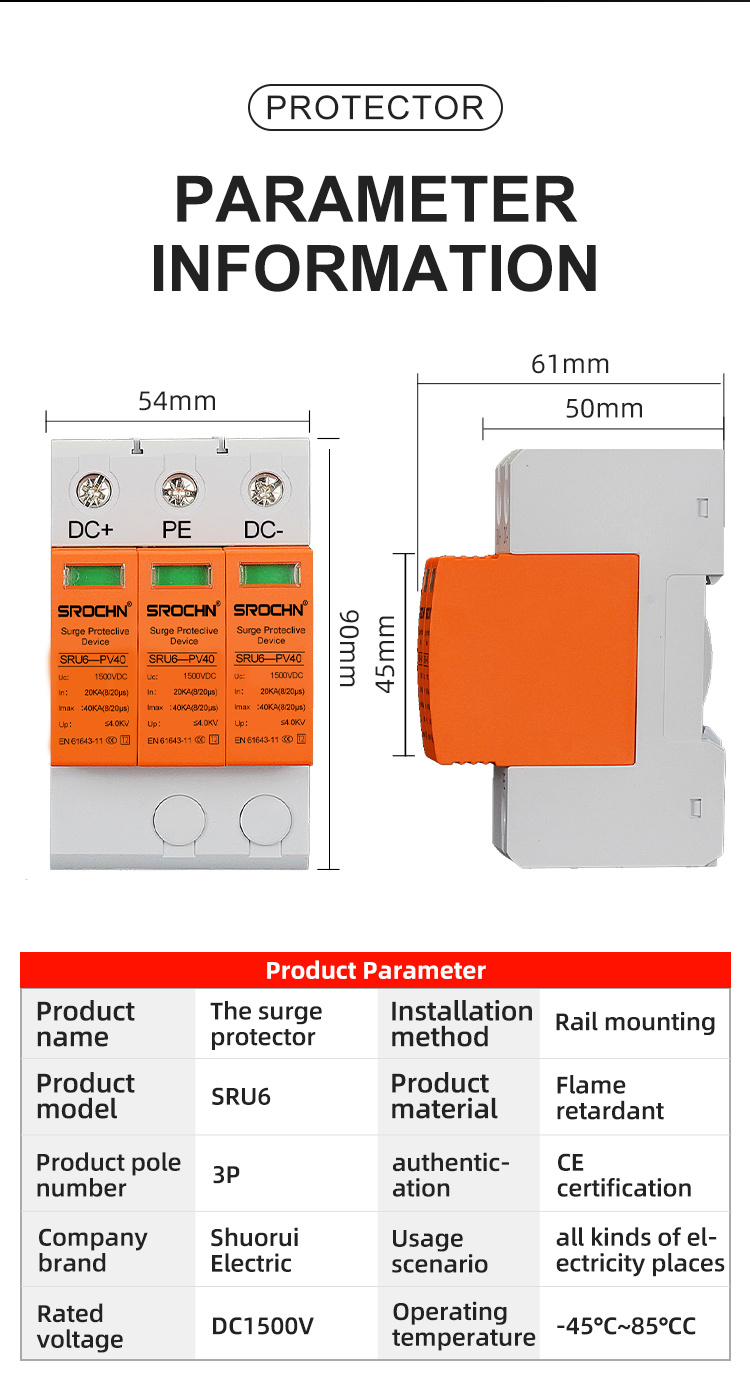

3P 1500VDC SPD 03

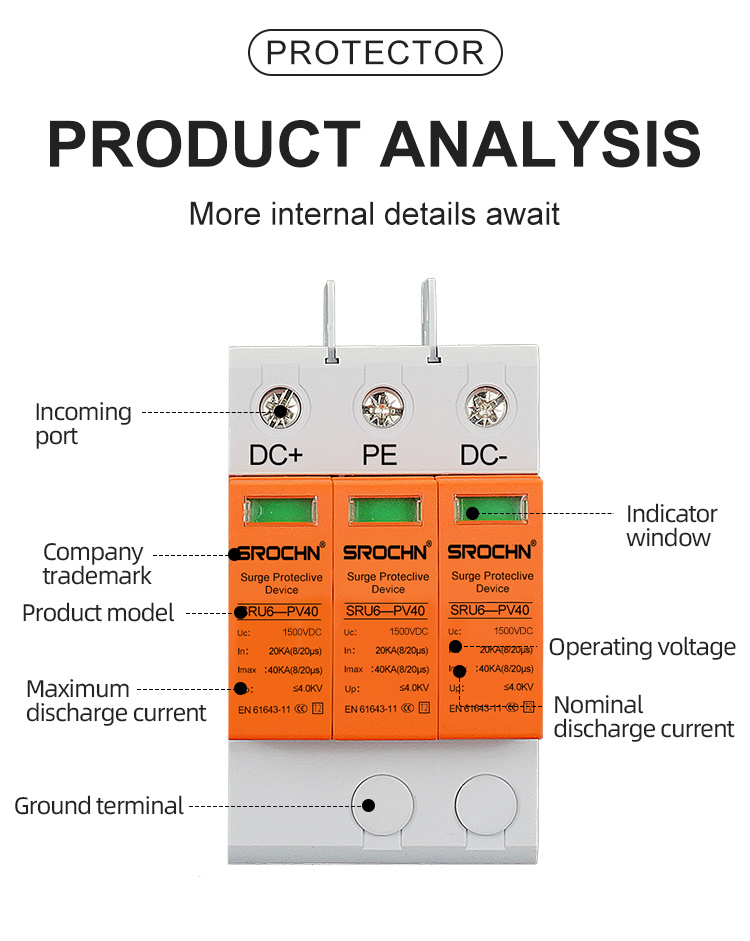

3P 1500VDC SPD 04

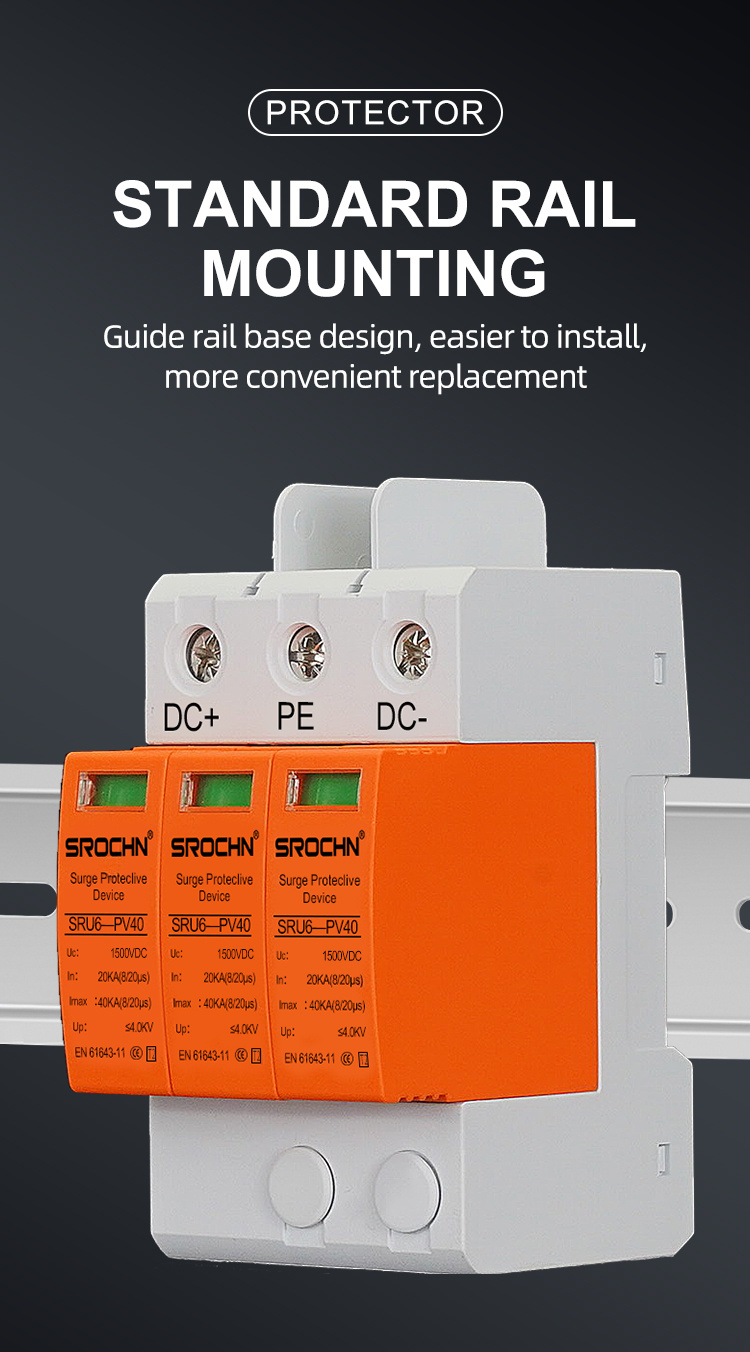

3P 1500VDC SPD 05

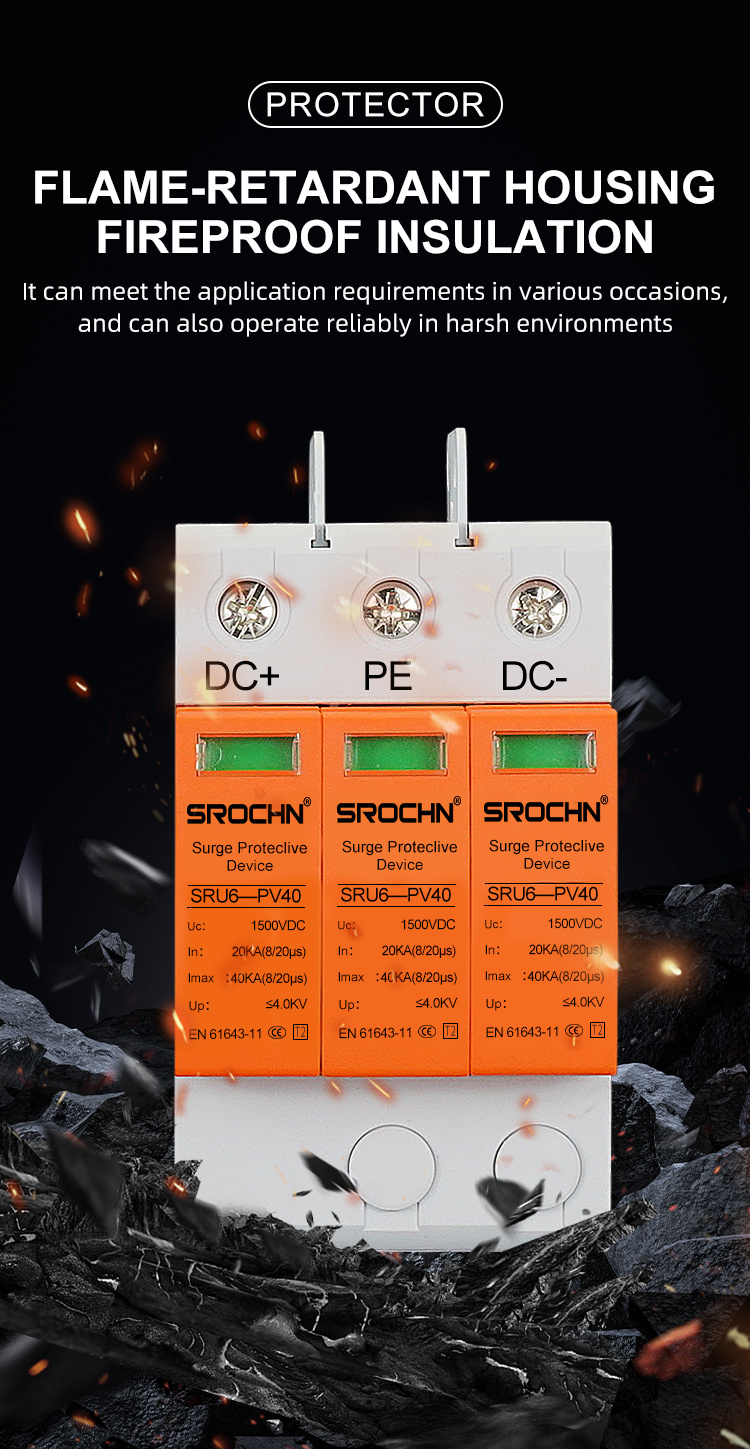

3P 1500VDC SPD 06

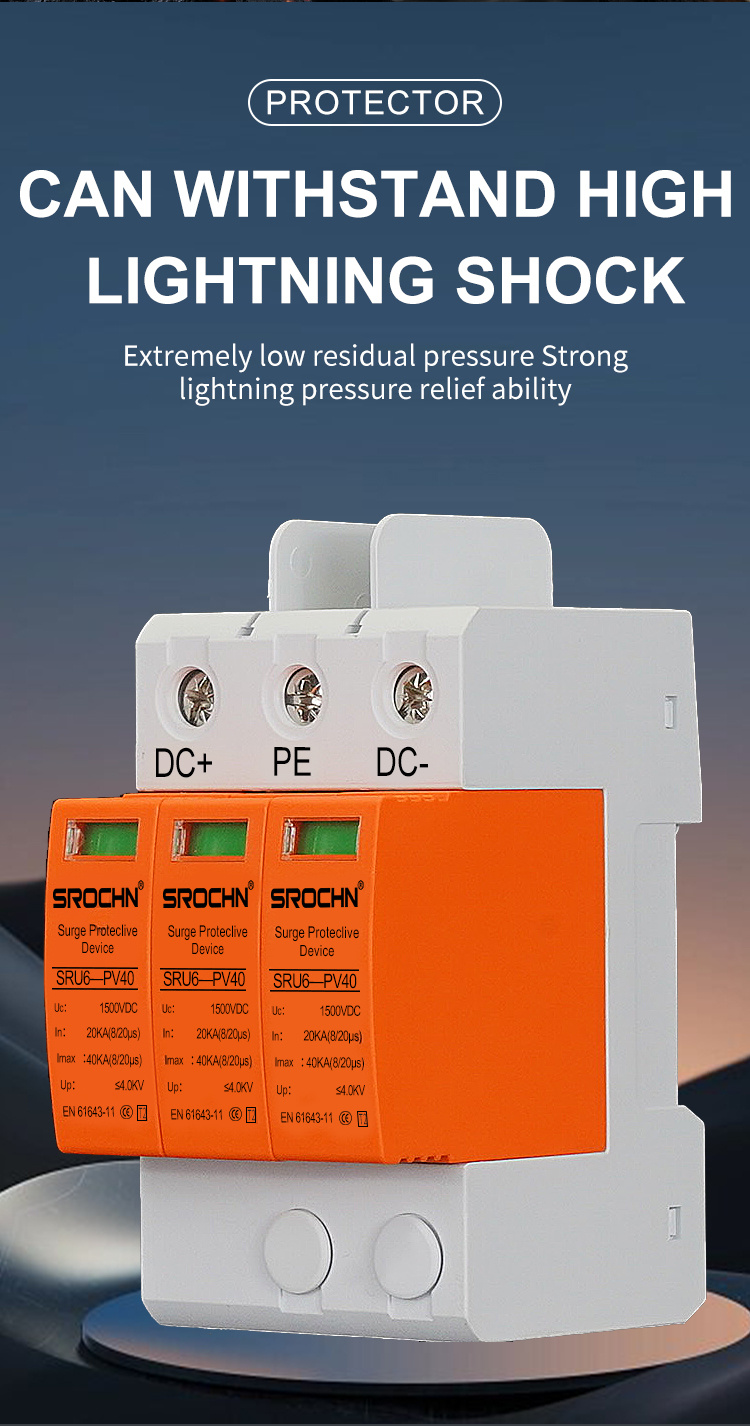

3P 1500VDC SPD 07
3P 1500VDC SPD 08

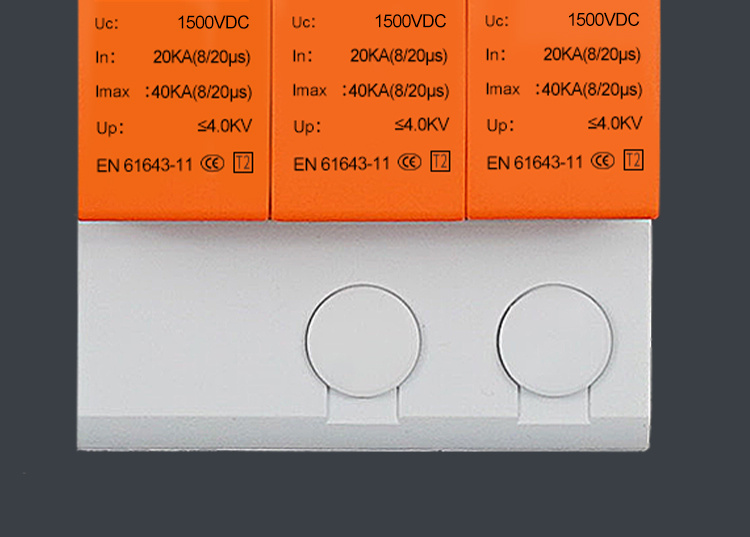

3P 1500VDC SPD 09
3P 1500VDC SPD 10
3P 1500VDC SPD 11
3P 1500VDC SPD 12
Frequently Asked Questions
What is the main purpose of this 1500VDC Surge Protective Device?
This device is specifically designed to provide exceptional surge and lightning protection for ultra-high voltage DC systems, such as utility-scale solar plants and EV charging networks.
How quickly does the SPD react to a voltage surge?
The device features nanosecond-level response speeds, reacting in less than 25 nanoseconds to clamp voltage and protect sensitive equipment.
What safety mechanisms are built into the device?
It includes integrated thermal disconnect protection, advanced arc-quenching technology, and flame-retardant housing to ensure failsafe operation and maximum safety.
Can this SPD be integrated into a remote monitoring system?
Yes, it features dry contact remote communication terminals that allow for seamless integration with building management systems (BMS) for real-time status tracking.
What are the international standards this product complies with?
This SPD fully complies with IEC 61643-11 and EN 61643-11 standards, meeting global requirements for Class II (T2) surge protection devices.
What is the operating temperature range for this unit?
The device is engineered to perform reliably in extreme environments, with an operating temperature range from -45°C to +85°C.
