This advanced Surge Protective Device (SPD) provides critical protection for DC electrical systems against damaging voltage transients caused by lightning strikes and switching surges. Engineered to meet rigorous international standards, this T2 class protector offers reliable performance in demanding applications where equipment safety and system uptime are paramount. With an elevated rated voltage of 800VDC and robust discharge capacity, this device is particularly suited for modern highvoltage DC systems requiring superior surge suppression capabilities.

Send Inquiry

Product Description

Key Features and Advantages

Exceptional Surge Handling Withstands impulse currents up to 40kA (maximum) and 20kA (nominal), ensuring reliable protection against high-energy transients.
Enhanced Voltage Rating 800VDC rating makes it ideal for contemporary high-voltage DC applications including commercial solar installations.
Type 2 Protection Provides coordinated surge protection at distribution boards, limiting overvoltages to safe levels for connected equipment.
Durable Construction High-quality plastic housing offers excellent electrical insulation, UV resistance, and corrosion protection.
Compact 2-Pole Design Comprehensive protection for both positive and negative lines in DC circuits with space-efficient packaging.
Maintenance-Friendly Visual status indicators allow for quick assessment of operational condition, reducing maintenance time and costs.

Application Scenarios

Large-scale solar photovoltaic systems and renewable energy farms.
Industrial DC power distribution and control systems.
Telecommunications infrastructure and data center power backup systems.
Electric vehicle charging stations and battery storage facilities.
Transportation systems and railway electrification applications.

Technical Specifications

Max Discharge Current:40kA (8/20μs)
Nominal Discharge Current:20kA (8/20μs)
Rated Voltage:800VDC
Protection Level:T2
Number of Poles:2P
Housing Material:Plastic (UL94 V0)
Response Time:<25 nanoseconds

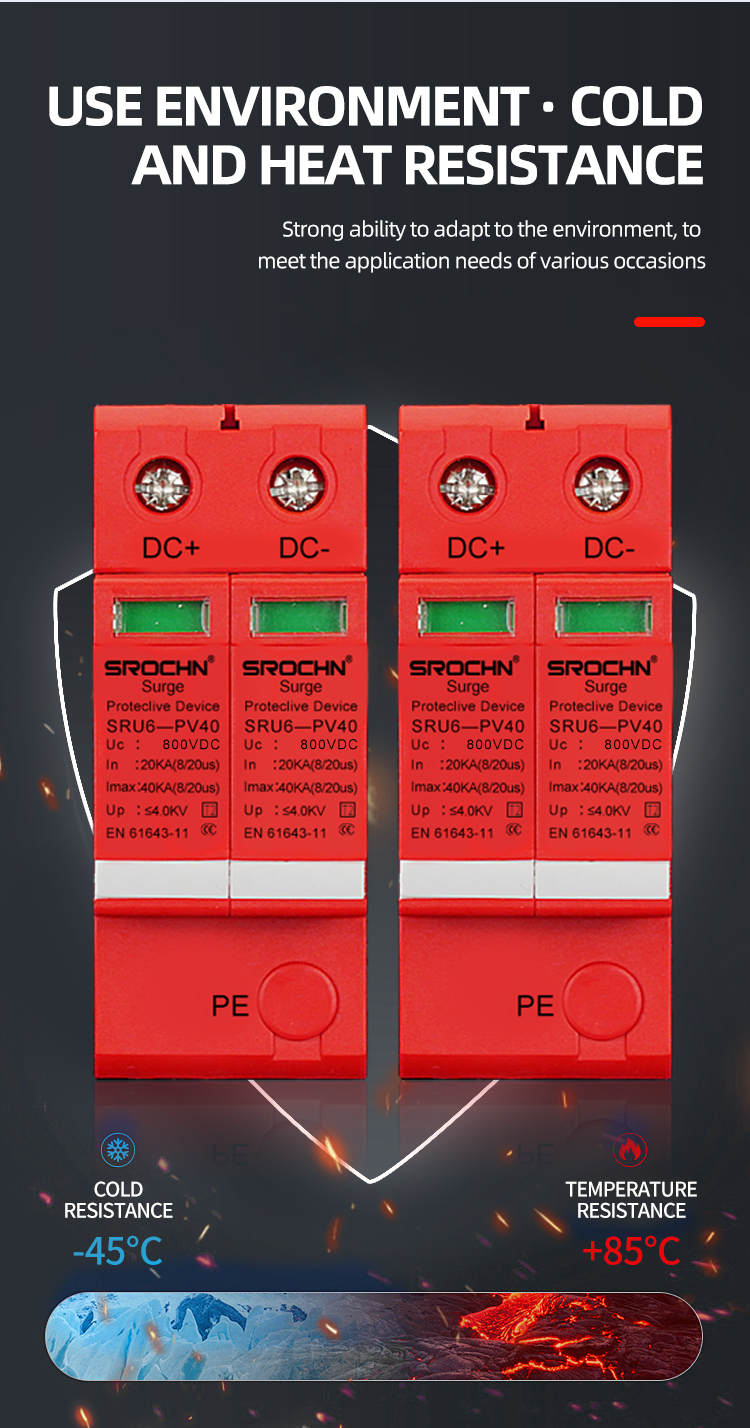

Operating Temp:-45°C to +85°C
Protection Mode:L+/L-/PE
Connection Type:Screw terminal

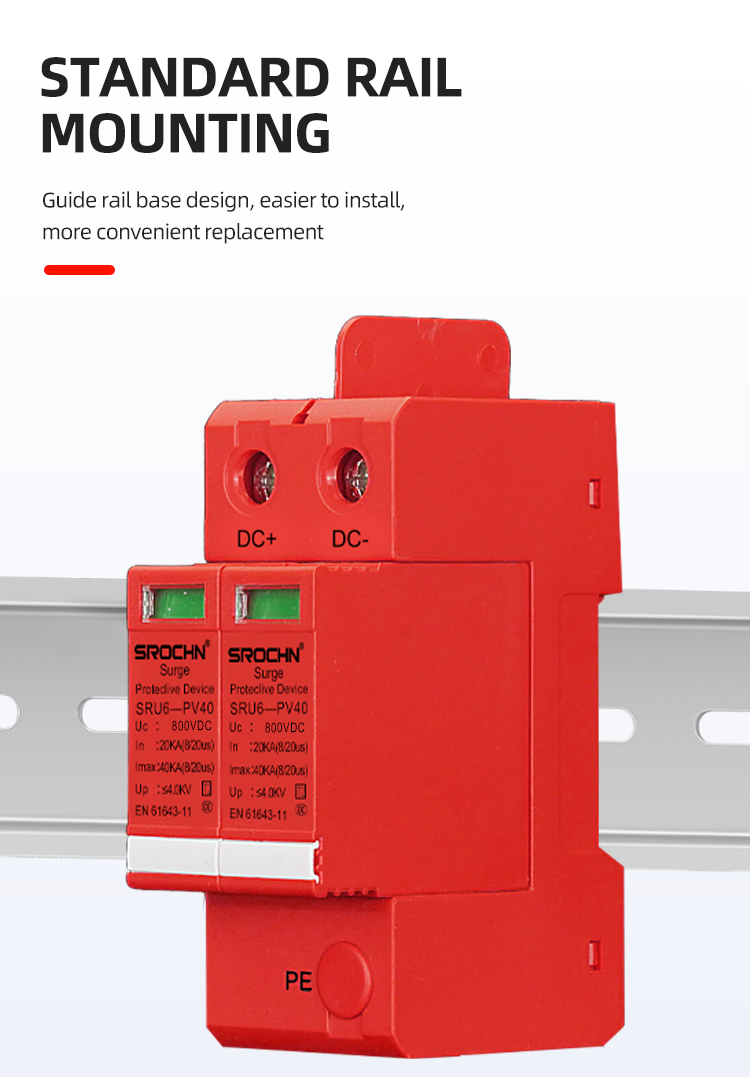

Mounting:35mm DIN rail
Compliance:IEC 61643-11
This high-performance surge protective device represents the latest in DC surge protection technology, offering exceptional reliability for critical infrastructure applications. Its enhanced voltage rating and robust discharge capacity make it an ideal choice for protecting valuable equipment in modern high-voltage DC systems.

Detailed Product Gallery

Surge Protective Device Detail 1
Surge Protective Device Detail 2

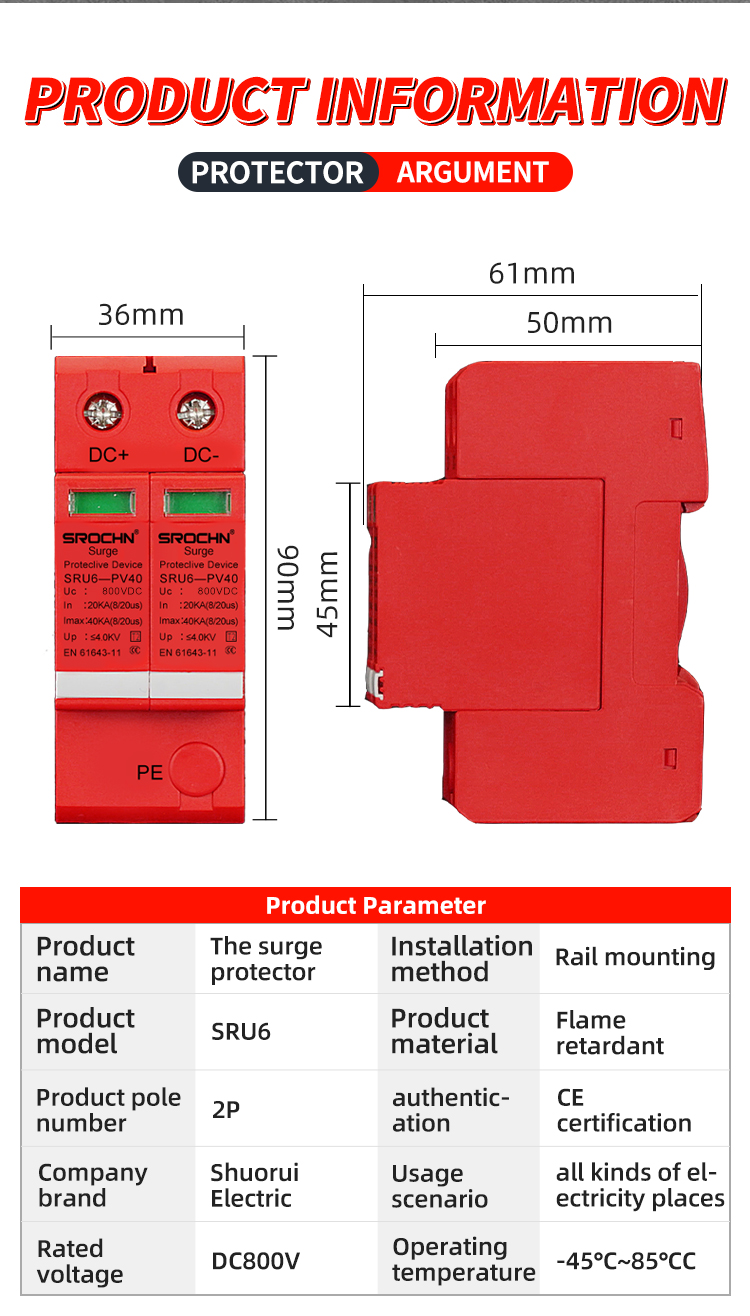

Surge Protective Device Detail 3
Surge Protective Device Detail 4

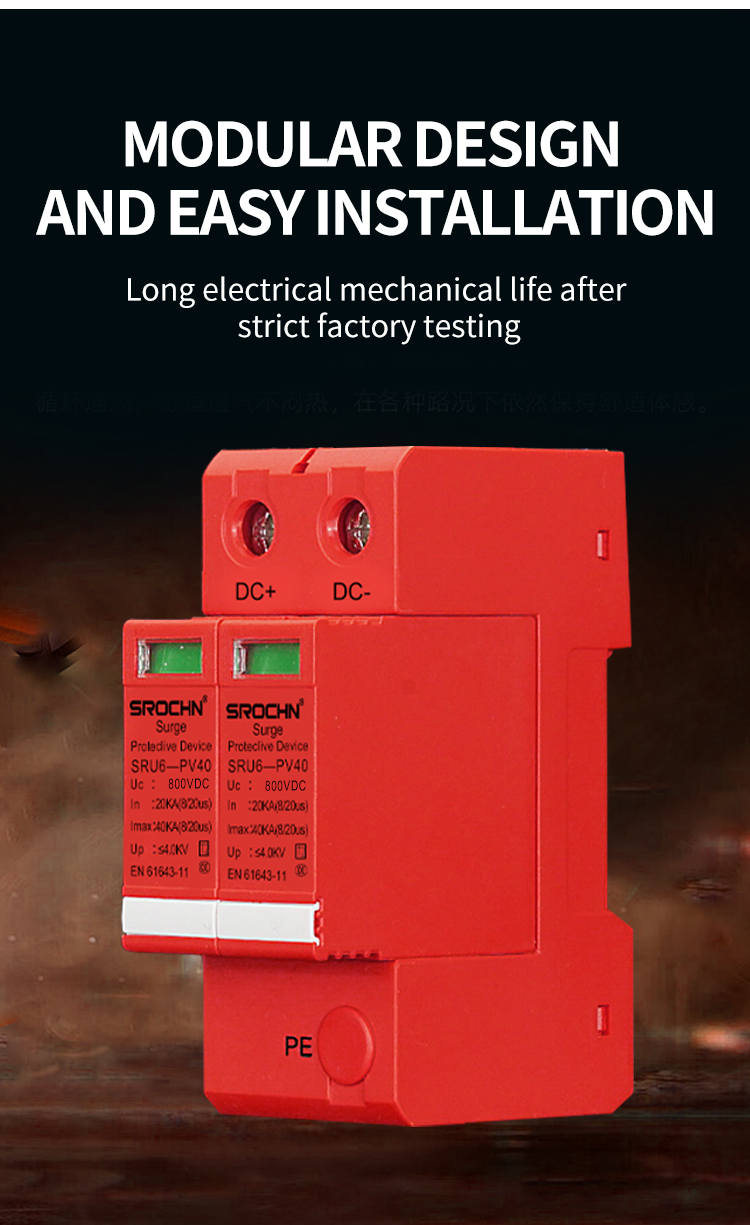

Surge Protective Device Detail 5
Surge Protective Device Detail 6
Surge Protective Device Detail 7
Surge Protective Device Detail 8
Surge Protective Device Detail 9
Surge Protective Device Detail 10
Surge Protective Device Detail 11
Surge Protective Device Detail 12

Frequently Asked Questions

What is the main function of this 800VDC SPD?
It is designed to protect DC-powered equipment, such as solar inverters and battery systems, from voltage spikes and lightning surges by limiting overvoltages to safe levels.
What does the "Type 2" (T2) classification mean?
Type 2 surge protectors are intended for installation at the distribution level. They protect against indirect lightning effects and switching transients within the electrical network.
Can this device handle outdoor environmental conditions?
The device itself has an IP20 rating and is made with UV-resistant material. It is typically mounted within an IP65-rated enclosure if used in outdoor solar combiner boxes or distributions.

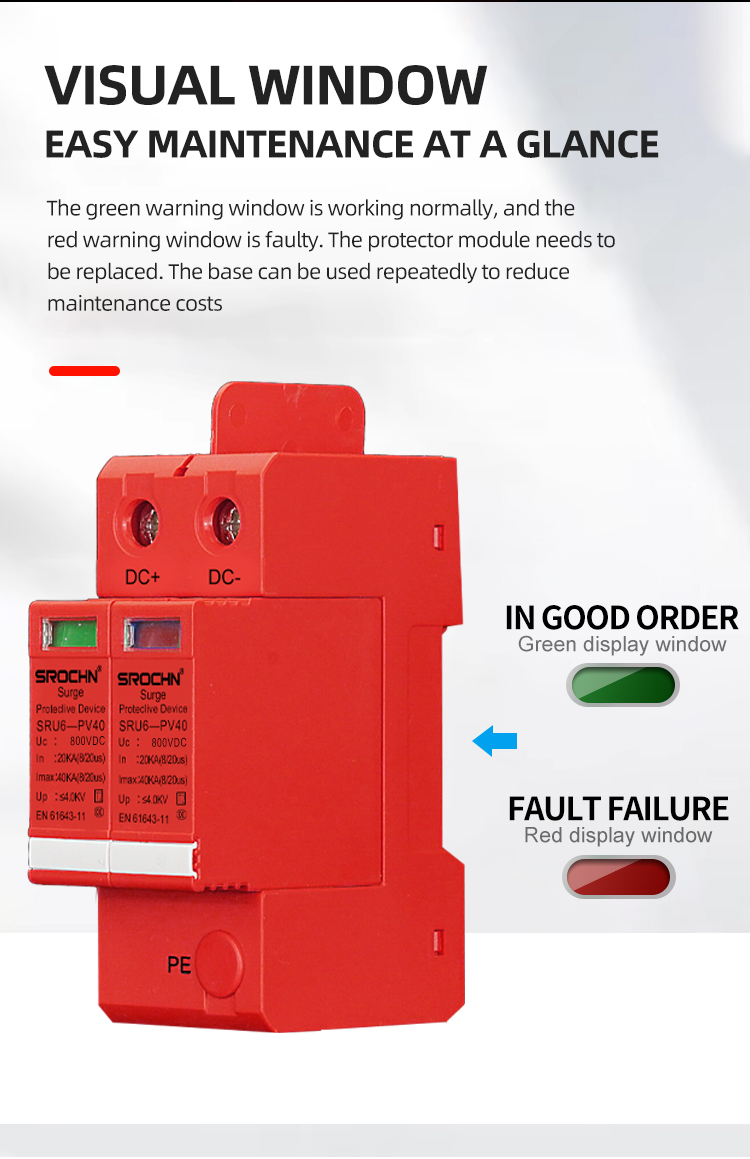

How do I monitor the health of the surge protector?
The device features a visual status indicator on the front panel. If the indicator changes color (usually from green to red), it signifies the module has reached its end of life and needs replacement.
What is the advantage of the 2-Pole (2P) design?
The 2P design provides dedicated protection paths for both the positive (L+) and negative (L-) lines relative to the ground (PE), ensuring comprehensive safety for DC circuits.
Is the installation of this SPD difficult?
No, it is designed for standard 35mm DIN rail mounting and uses standard screw terminals, making it compatible with most industrial and commercial distribution boards.
