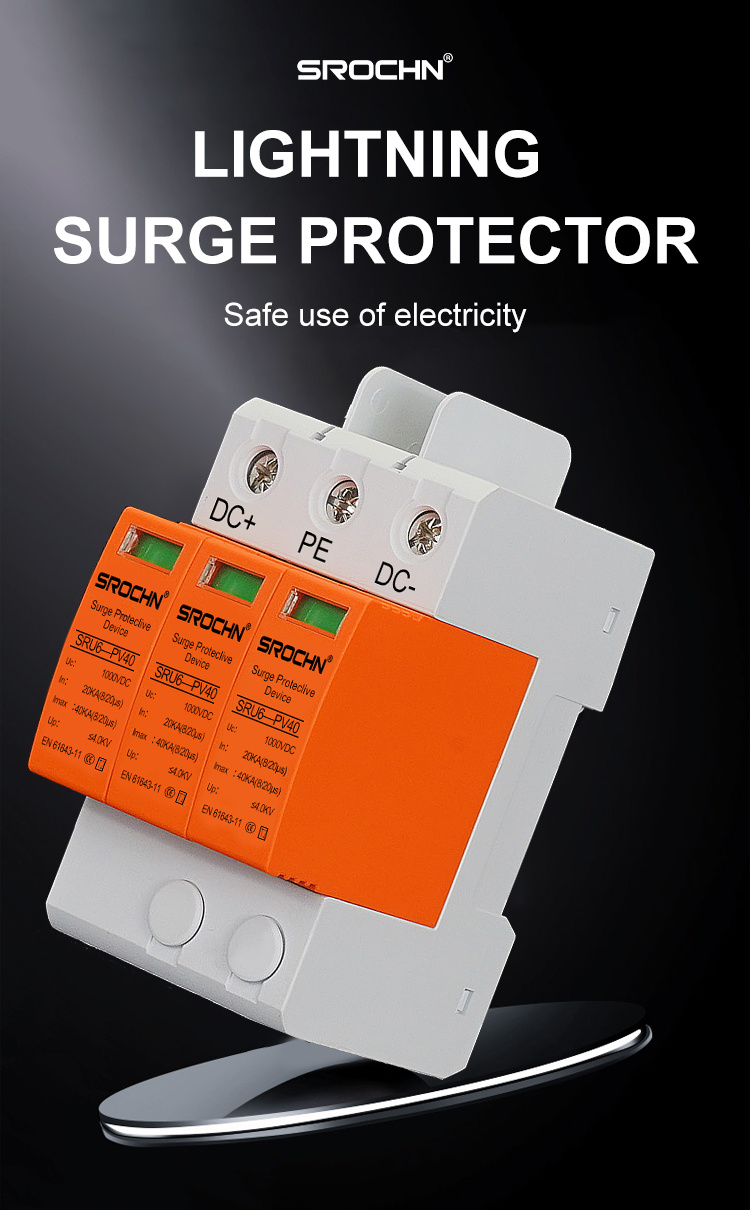

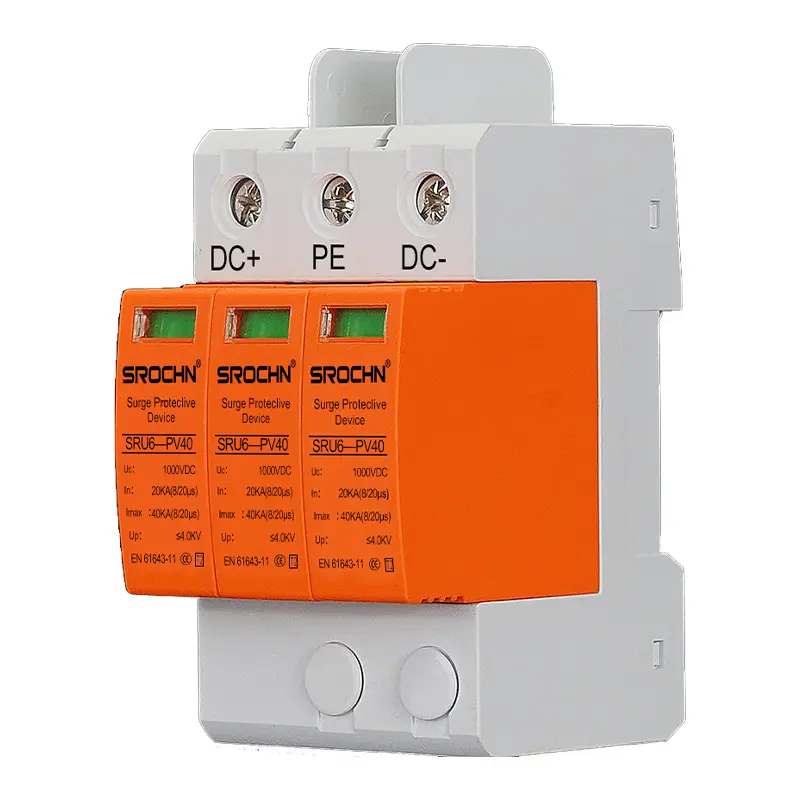

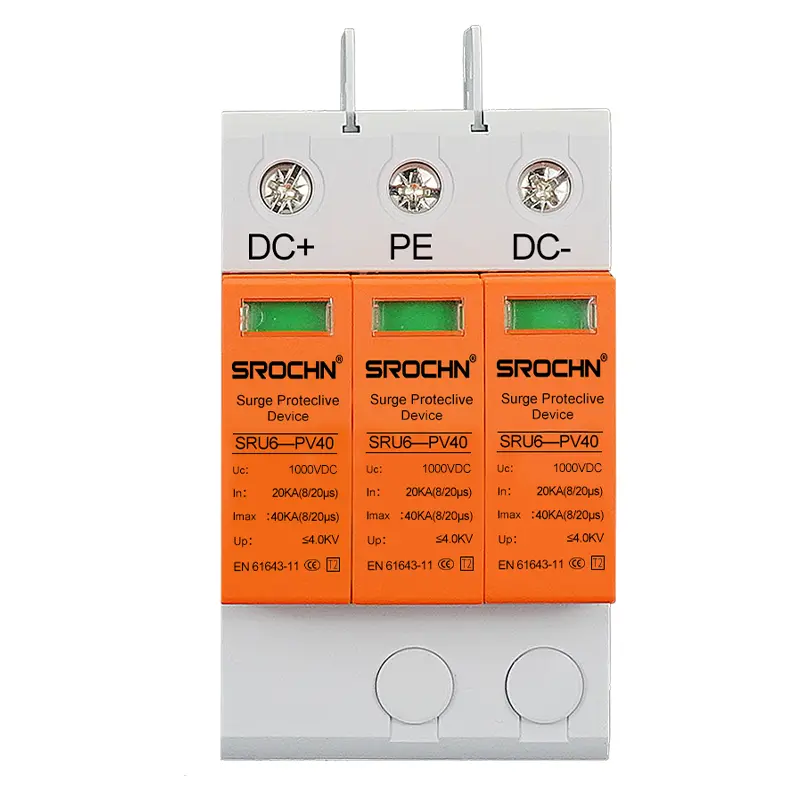

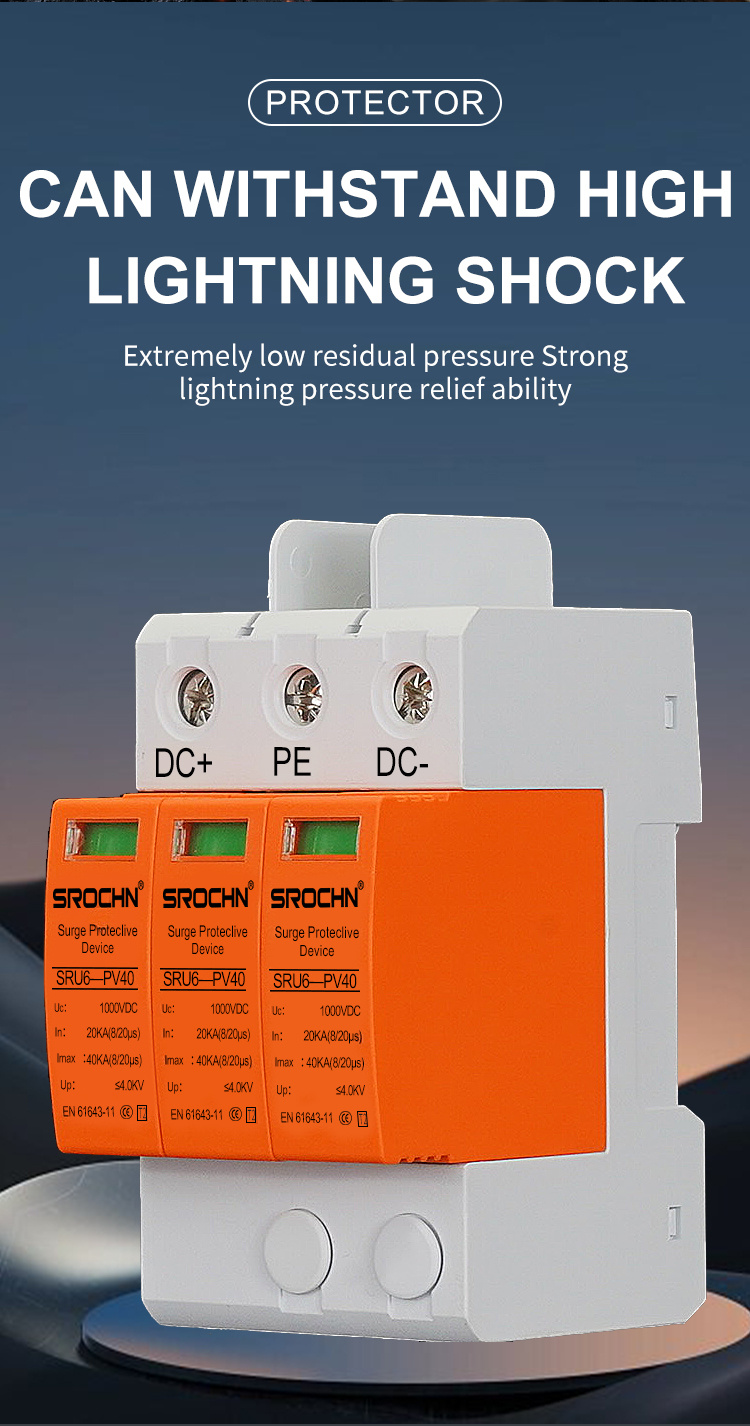

Capable of discharging up to 40kA (8/20μs) surge currents, providing reliable protection against direct and indirect lightning strikes.
Offers Type 2 (Class II) protection, balancing cost-effectiveness and performance for most electrical environments.

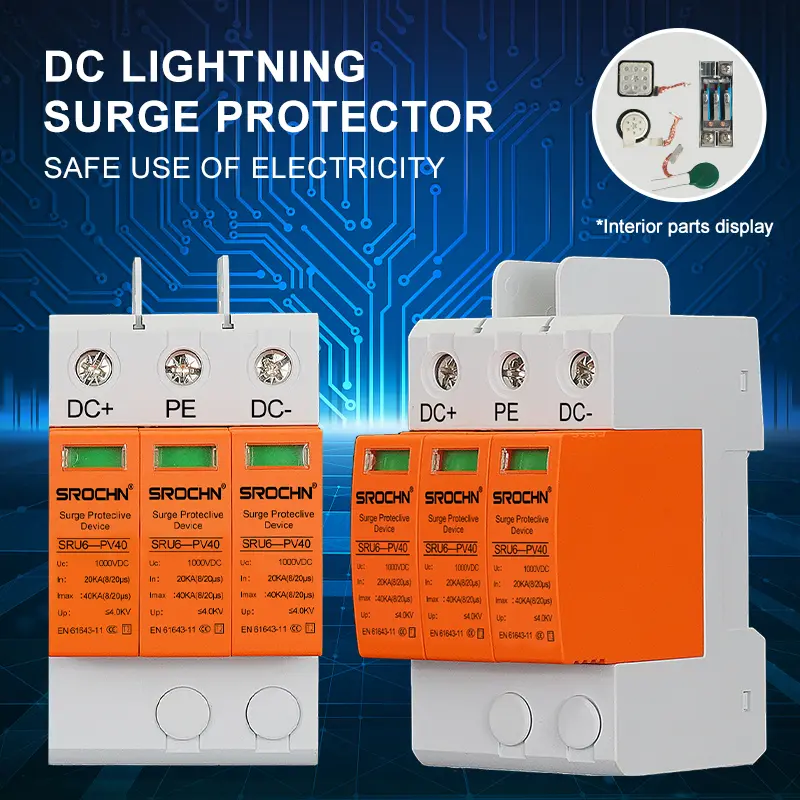

Designed for 1000VDC systems, making it highly suitable for solar farms, industrial machinery, and electric vehicle charging stations.

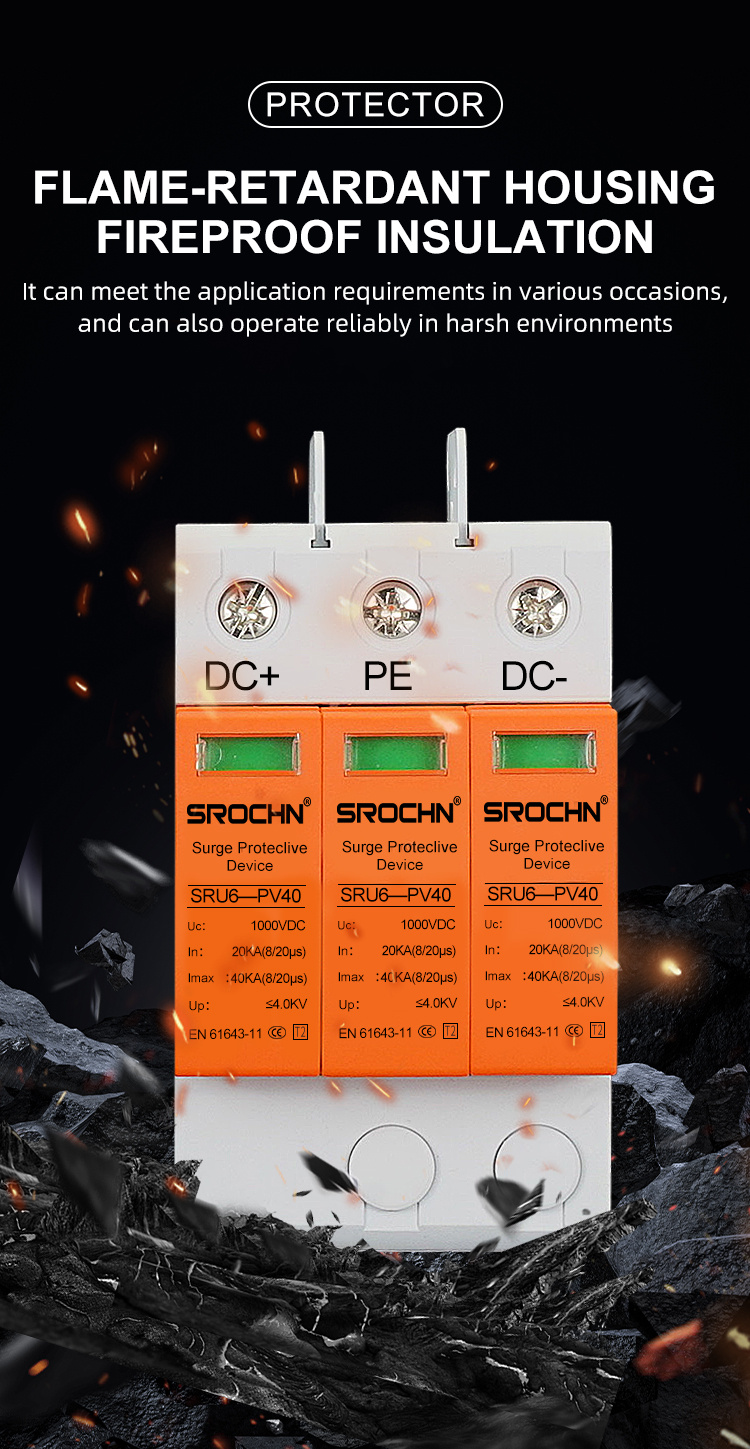

The plastic housing ensures lightweight yet durable protection, with flame-retardant properties enhancing overall safety.

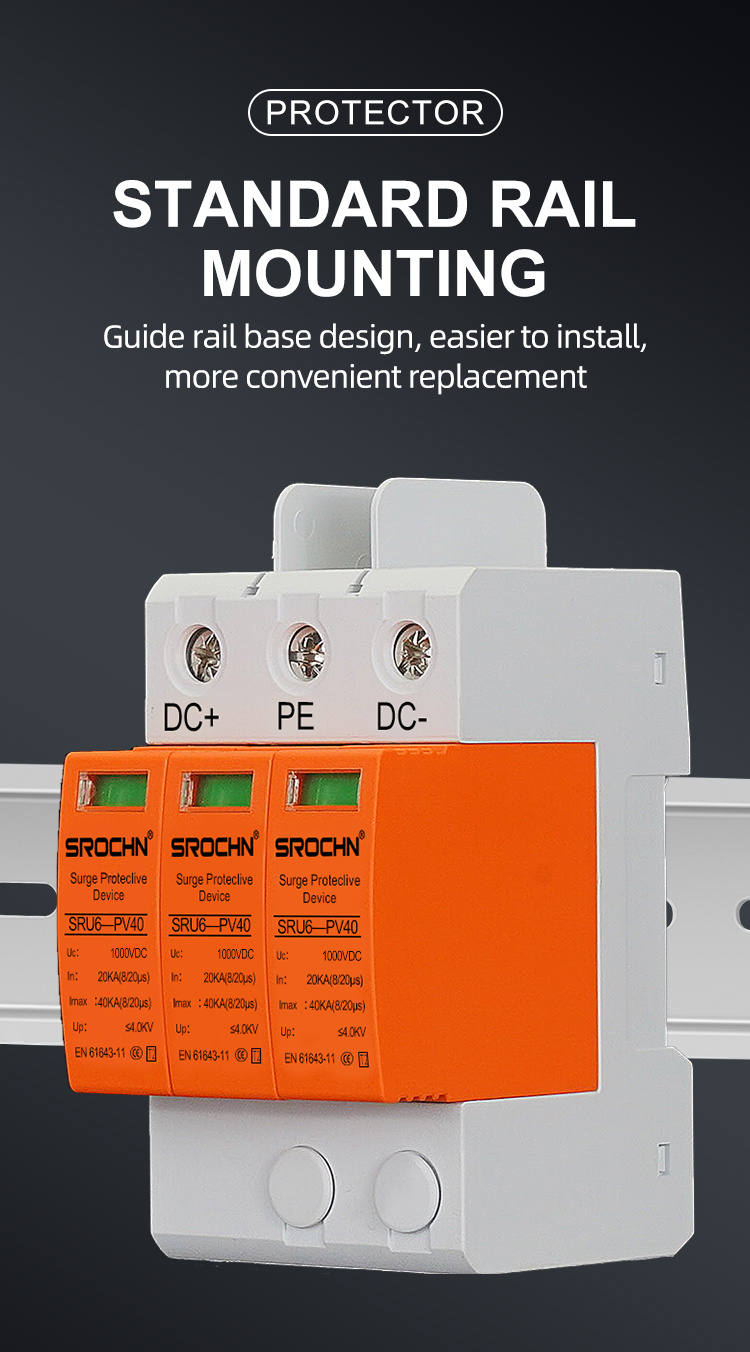

Modular design allows for straightforward standard DIN rail mounting, drastically reducing installation time and costs.

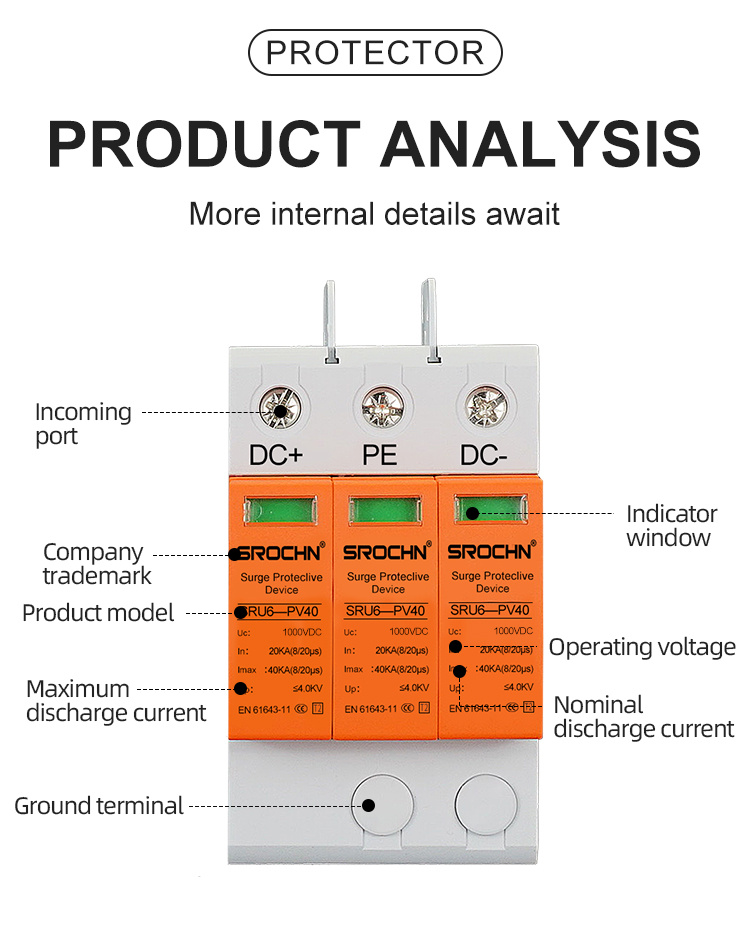

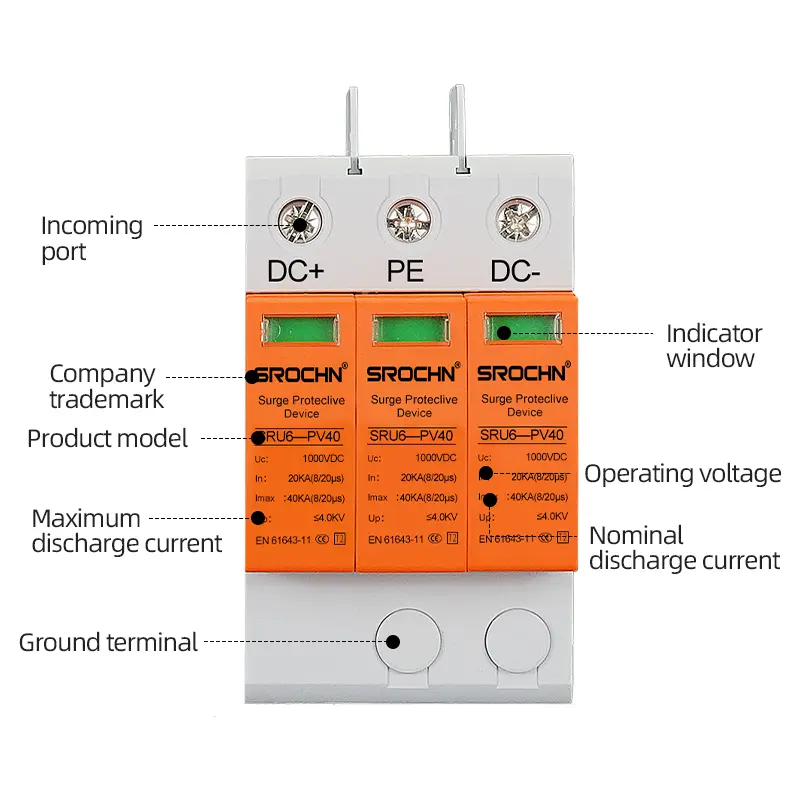

Integrated visual LEDs provide real-time operational status, including end-of-life alerts for timely maintenance.
Operates reliably in environments from -45°C to 85°C, ensuring consistent high performance in extreme conditions.
Protects inverters, combiner boxes, and monitoring equipment in large-scale photovoltaic installations.
Safeguards PLCs, variable speed motor drives, and delicate control systems in manufacturing plants.
Ensures the longevity and continuous service of DC fast-charging stations and local power distribution networks.
Provides robust surge protection for base transceiver stations, data centers, and advanced communication equipment.
Shields signaling systems, traction networks, and electrified rail infrastructure from electrical transients.
Protects battery management systems (BMS) and DC power converters in demanding ESS applications.

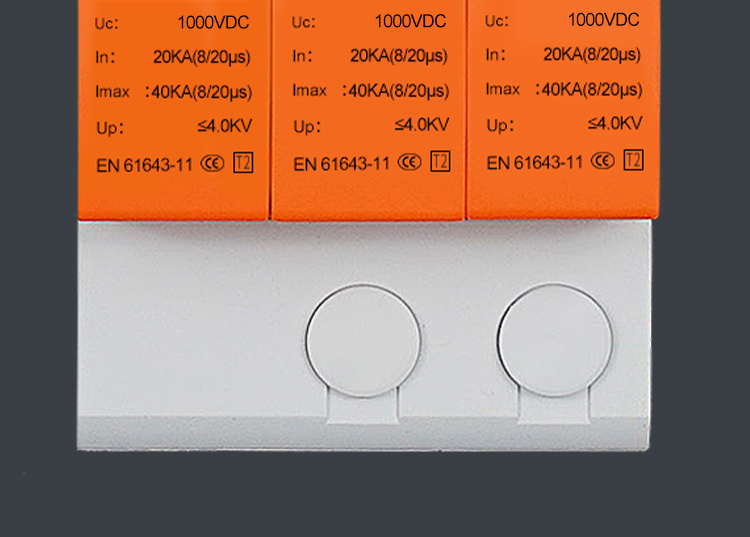

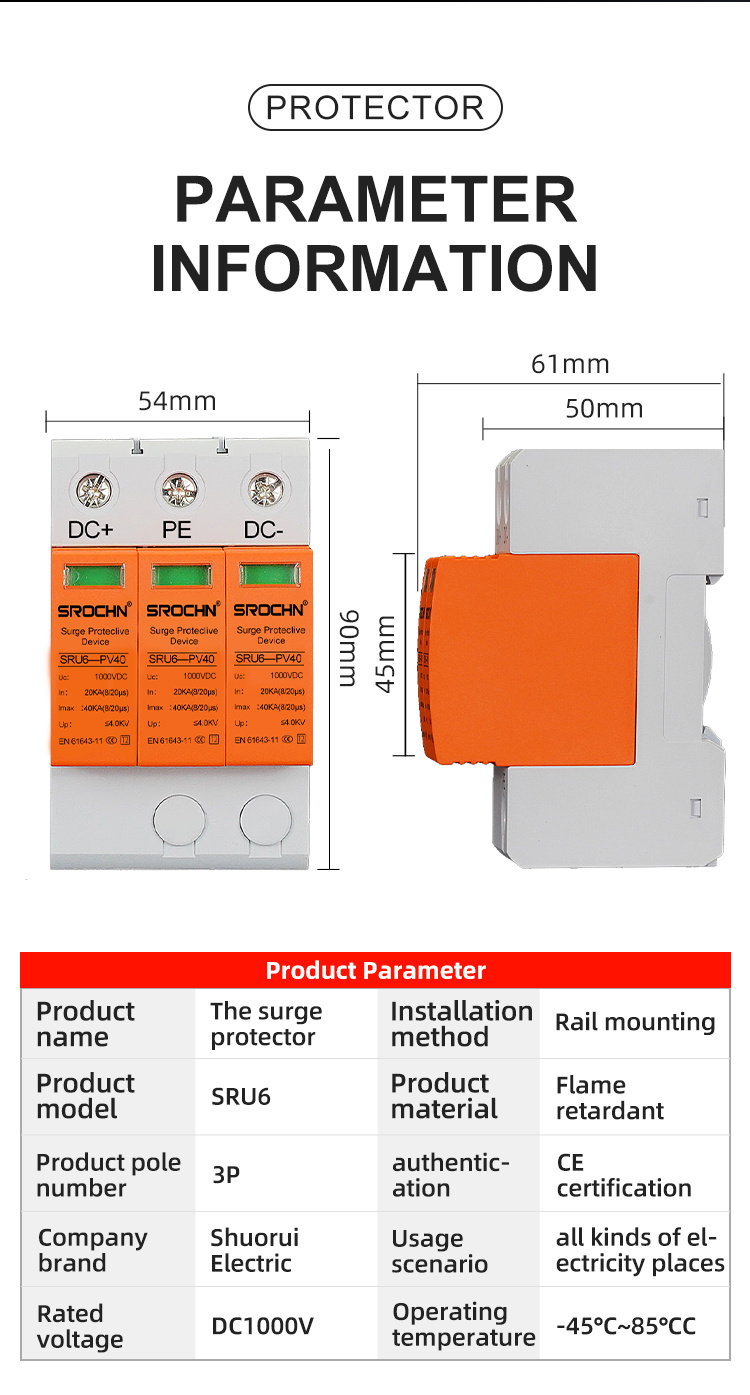

| Maximum Discharge Current (Imax) | 40kA (8/20μs) |
| Nominal Discharge Current (In) | 20kA (8/20μs) |
| Protection Level (Up) | ≤ 4.0kV |
| Rated Voltage | 1000VDC |
| Type | T2 (Class II) |
| Poles | 3P |
| Housing Material | Flame-Retardant Plastic (UL94 V0) |
| Color | Gray |
| Operating Temperature | -45°C to +85°C |
| Response Time | < 25ns |
| Protection Mode | L+ / L- / PE |
| Mounting | DIN Rail (35mm) |
| Standards Compliance | IEC 61643-11, EN 61643-11 |
This surge protector is designed with a high surge handling capacity, capable of discharging maximum surge currents of up to 40kA (8/20μs) and nominal currents of 20kA (8/20μs). It provides robust Class II protection against both direct and indirect lightning strikes.
Thanks to its 1000VDC system compatibility, it is ideal for high-voltage applications such as solar power systems (combiner boxes, inverters), industrial automation (PLCs, control cabinets), EV fast-charging infrastructures, telecommunications base stations, electrified transportation networks, and battery energy storage systems (BMS).
The device features integrated visual LEDs that show the real-time operational status. They provide immediate, clear diagnostics, including end-of-life warnings, allowing maintenance personnel to replace worn modules proactively and avoid system downtime.
The SPD features a modular design meant for straightforward 35mm DIN rail mounting. This design makes integration into standard electrical cabinets quick and cost-effective, saving setup time.
Yes, the unit is constructed using a high-quality flame-retardant plastic housing (UL94 V0 rating) and features an impressive operational temperature range from -45°C to +85°C, ensuring robust performance under harsh outdoor and industrial climates.
This product fully complies with international safety standards IEC 61643-11 and EN 61643-11, assuring users that it meets stringent specifications for surge protection and operational safety.
