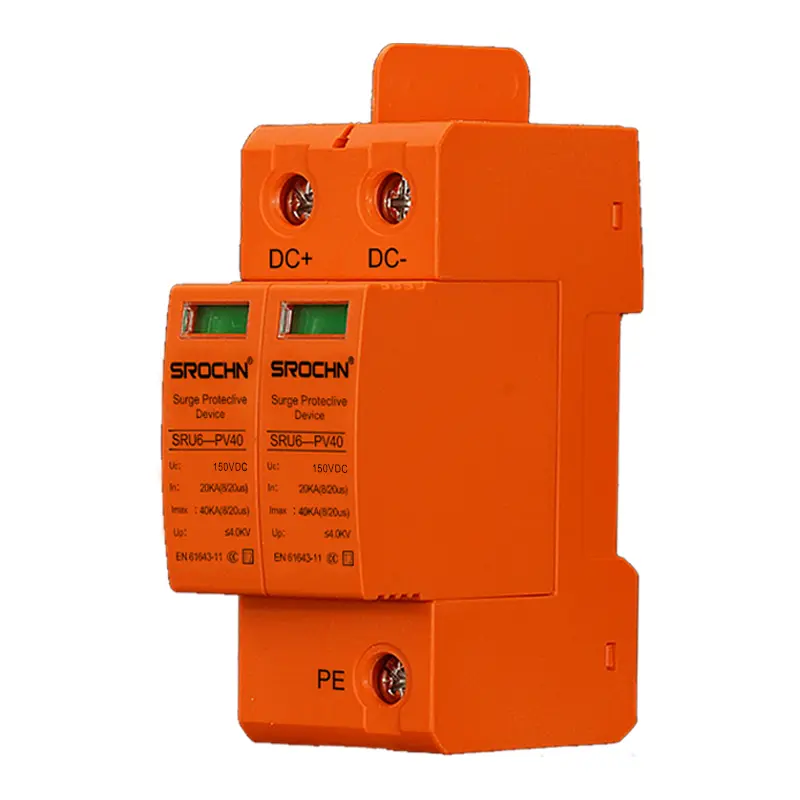

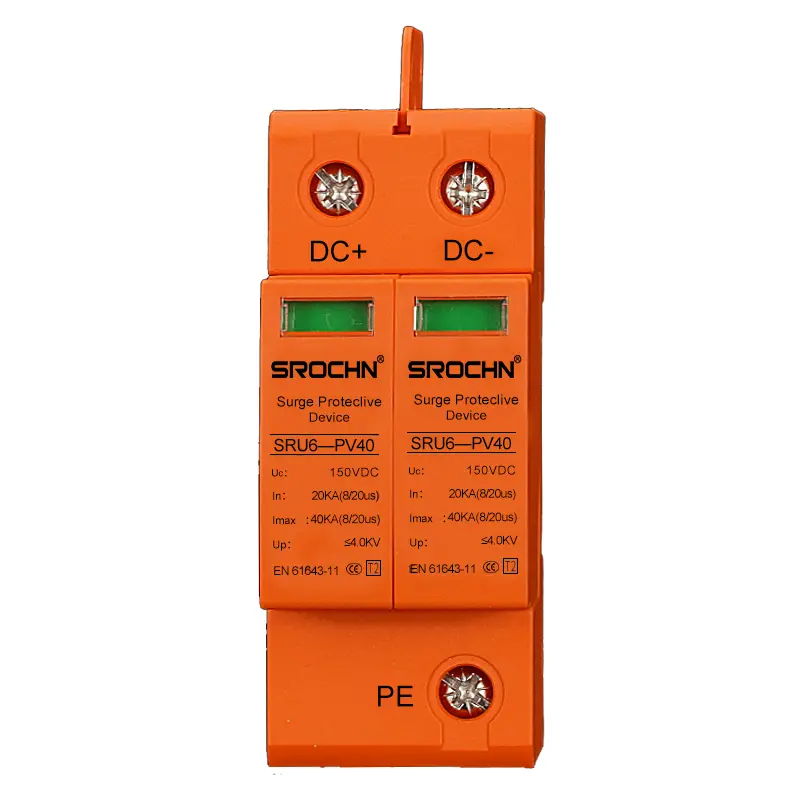

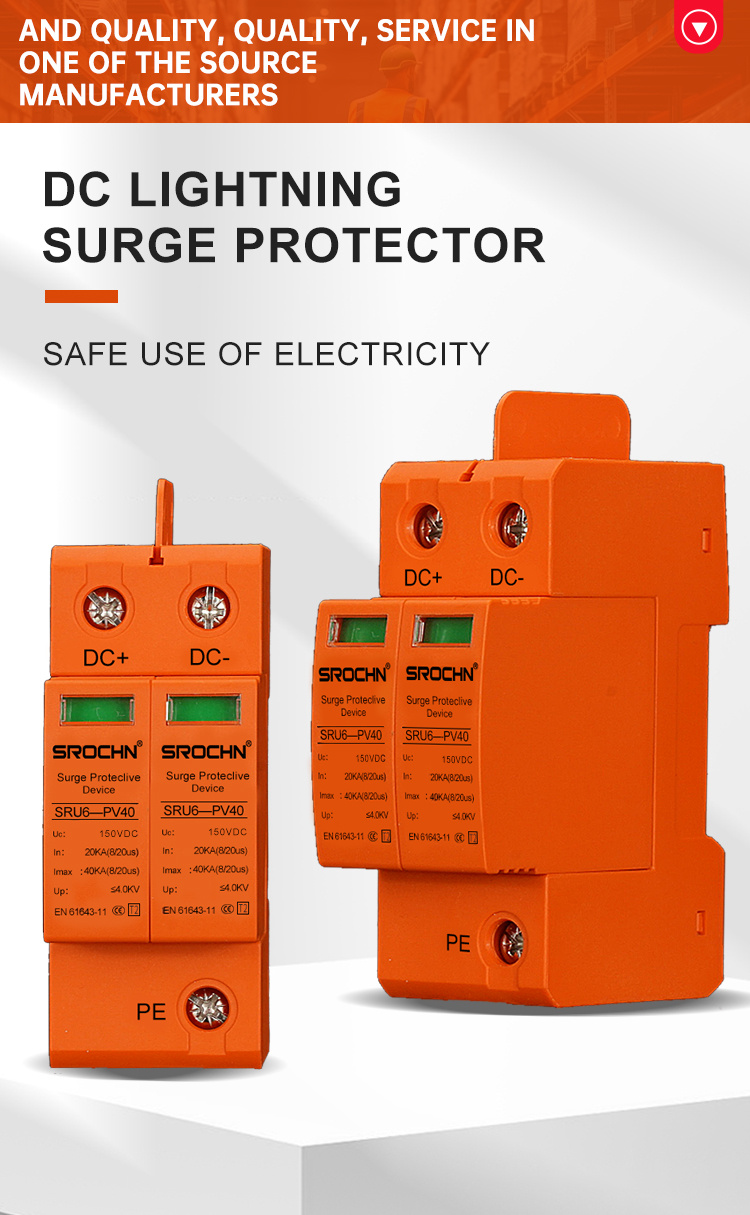

Specifically engineered for 150VDC systems, providing optimal surge protection for industrial applications.

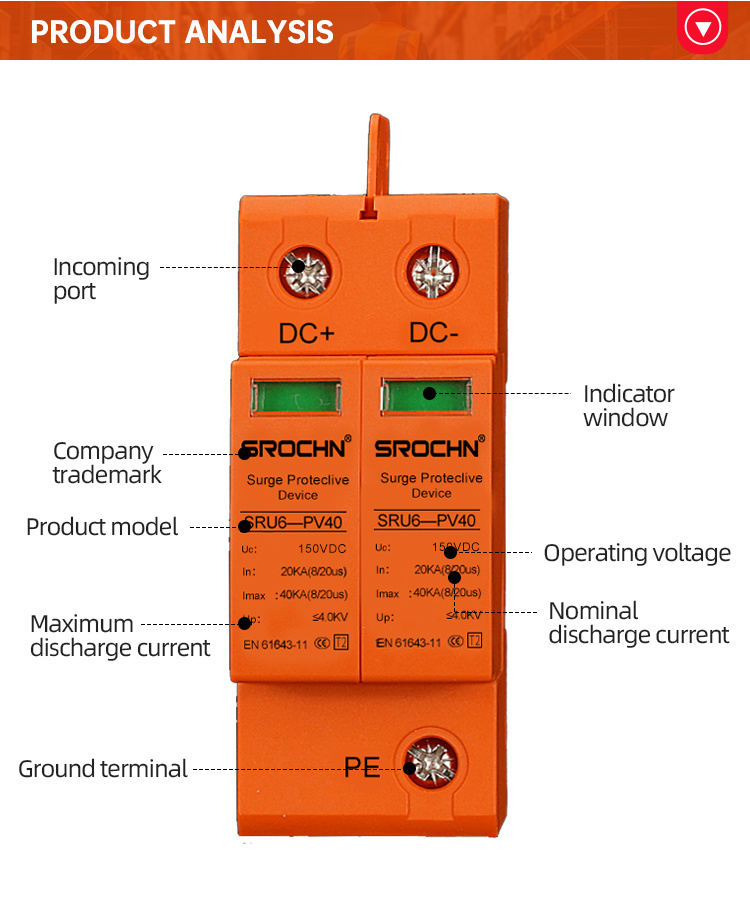

Bright orange housing ensures easy identification and maintenance in electrical panels.
40kA maximum discharge capacity (8/20µs) offers reliable protection against severe lightning strikes.
2-pole configuration saves valuable space in control cabinets and distribution panels.

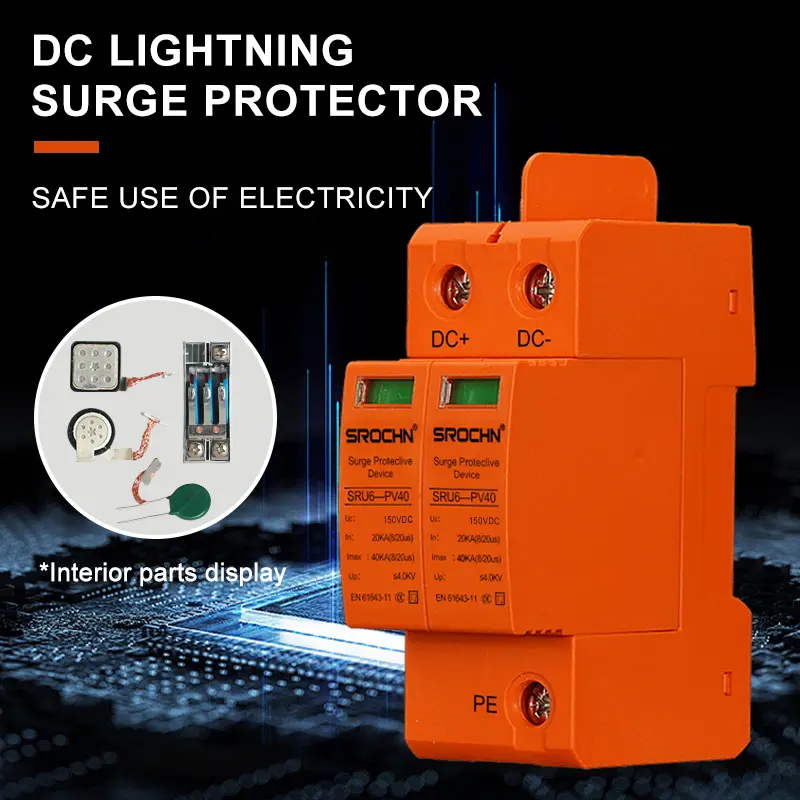

Utilizes premium metal oxide varistors with ultra-fast response time (<25ns).
Integrated thermal disconnect protection and fail-safe operation mechanism.

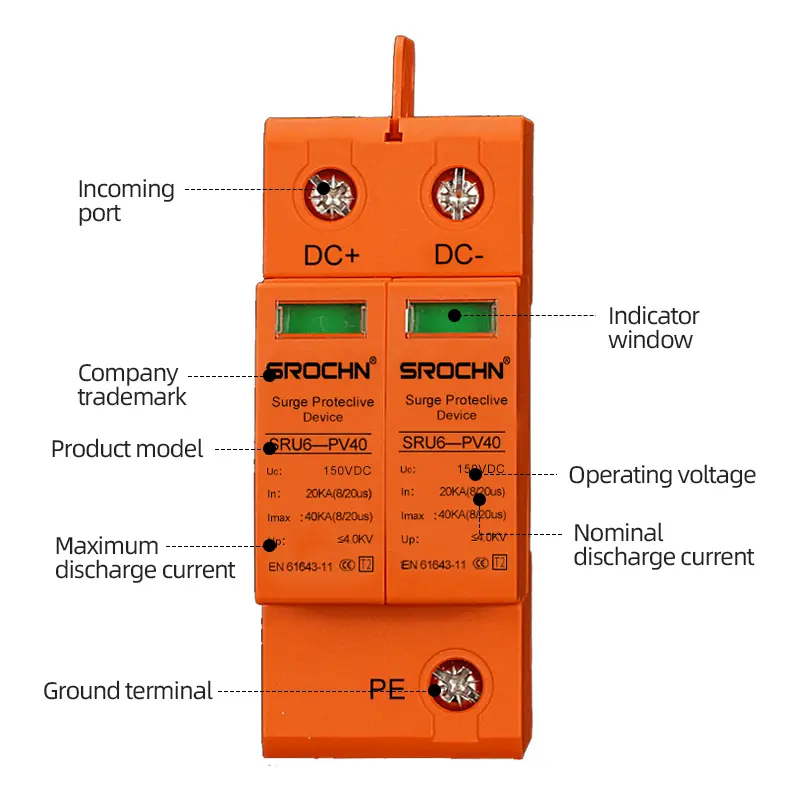

Visual LED indicators for instant monitoring of operational status.
DIN rail mounting system with secure screw terminal connections.
Protects PLCs, motor drives, and control systems in manufacturing facilities.
Safeguards solar inverters and monitoring equipment in photovoltaic installations.
Provides protection for communication equipment and DC power systems.
Ensures reliability of railway signaling and control systems.
Protects automation systems and security equipment in commercial buildings.
Suitable for marine electronics and shipboard power systems.
Ideal for wind power systems and energy storage applications.

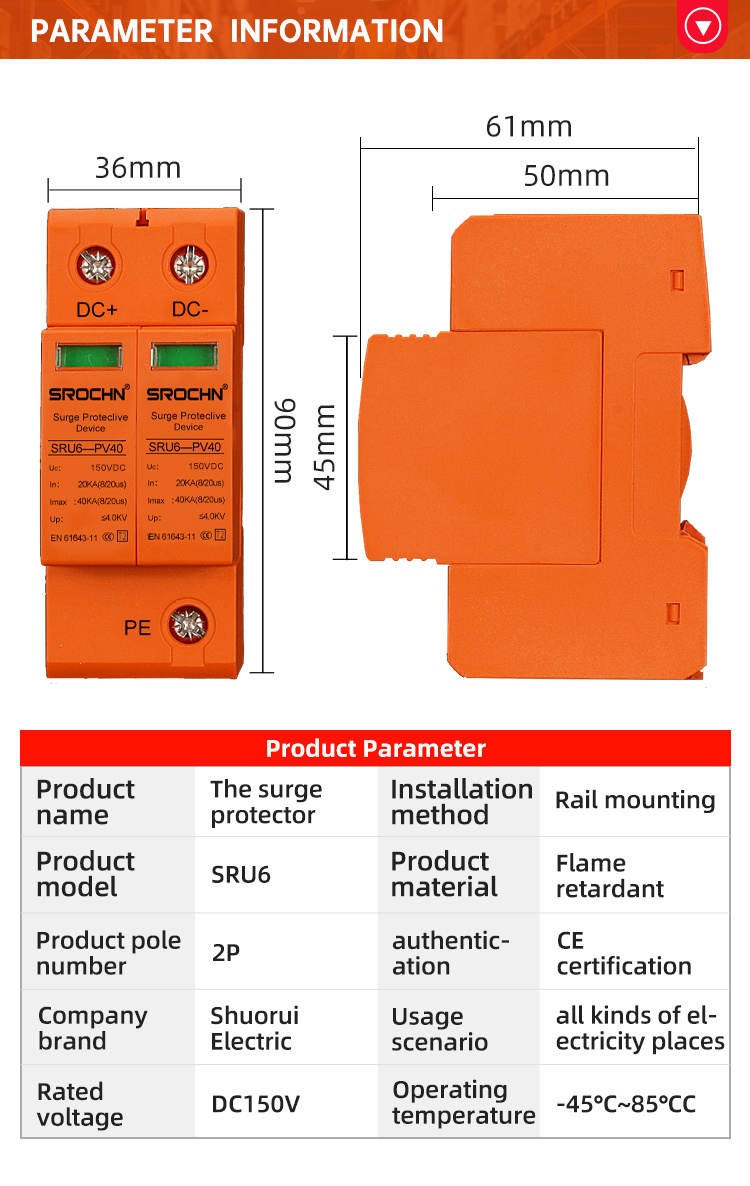

| Parameter | Specification Value |
|---|---|
| Maximum Discharge Current (Imax) | 40kA (8/20µs) |
| Nominal Discharge Current (In) | 20kA (8/20µs) |
| Protection Level (Up) | ≤ 4.0kV |
| Rated Voltage (Un) | 150VDC |
| Protection Level | T2 (Class II) |
| Number of Poles | 2P |

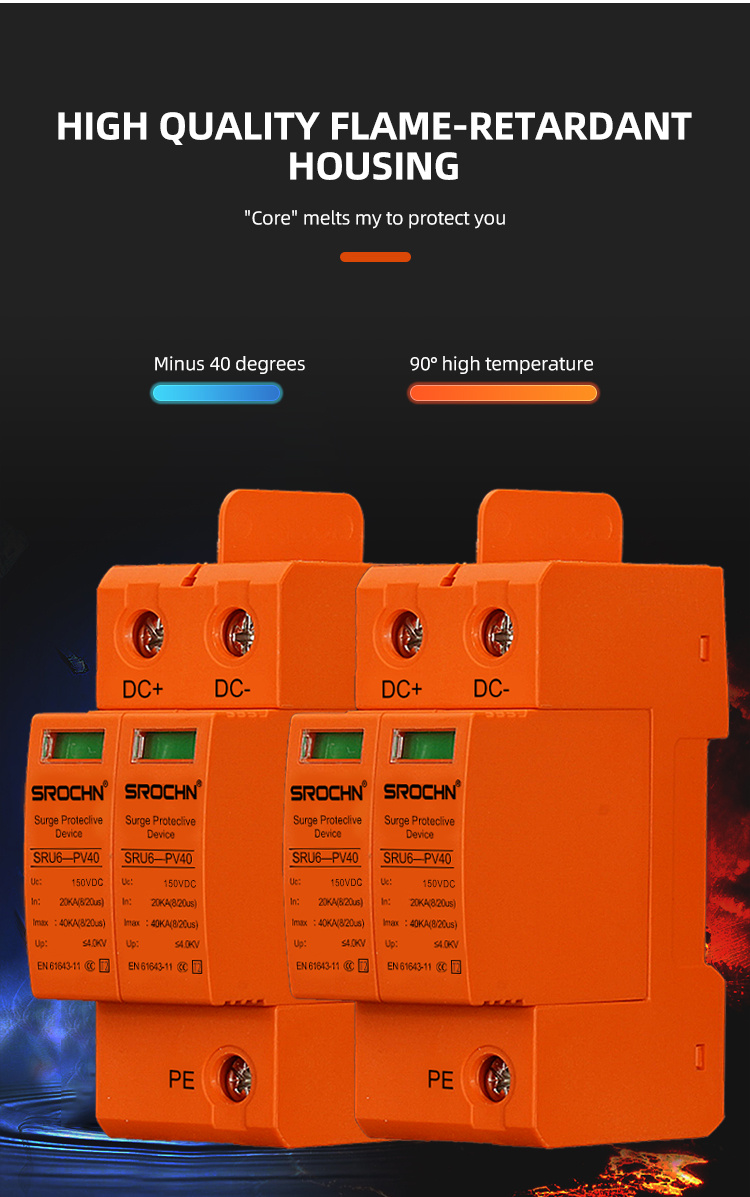

| Housing Material | Flame-Retardant Plastic (UL94 V0) |
| Color | Orange (High Visibility) |
| Response Time (tA) | < 25 nanoseconds |
| Operating Temperature | -45°C to +85°C |
| Protection Mode | L+ / L- / PE |
| Connection Type | Screw terminal |
| Mounting Type | 35mm DIN Rail |
| Protection Degree | IP20 |
| Standards Compliance | IEC 61643-11, EN 61643-11 |
This device is specifically engineered to provide optimal transient overvoltage and surge protection for medium voltage DC systems up to 150VDC. It is widely used in industrial automation, solar photovoltaic systems, telecommunications, and wind power setups.
The high-visibility orange housing is designed for quick identification and easy maintenance. It allows technicians to instantly locate the surge protective device inside crowded electrical panels and distribution boards.

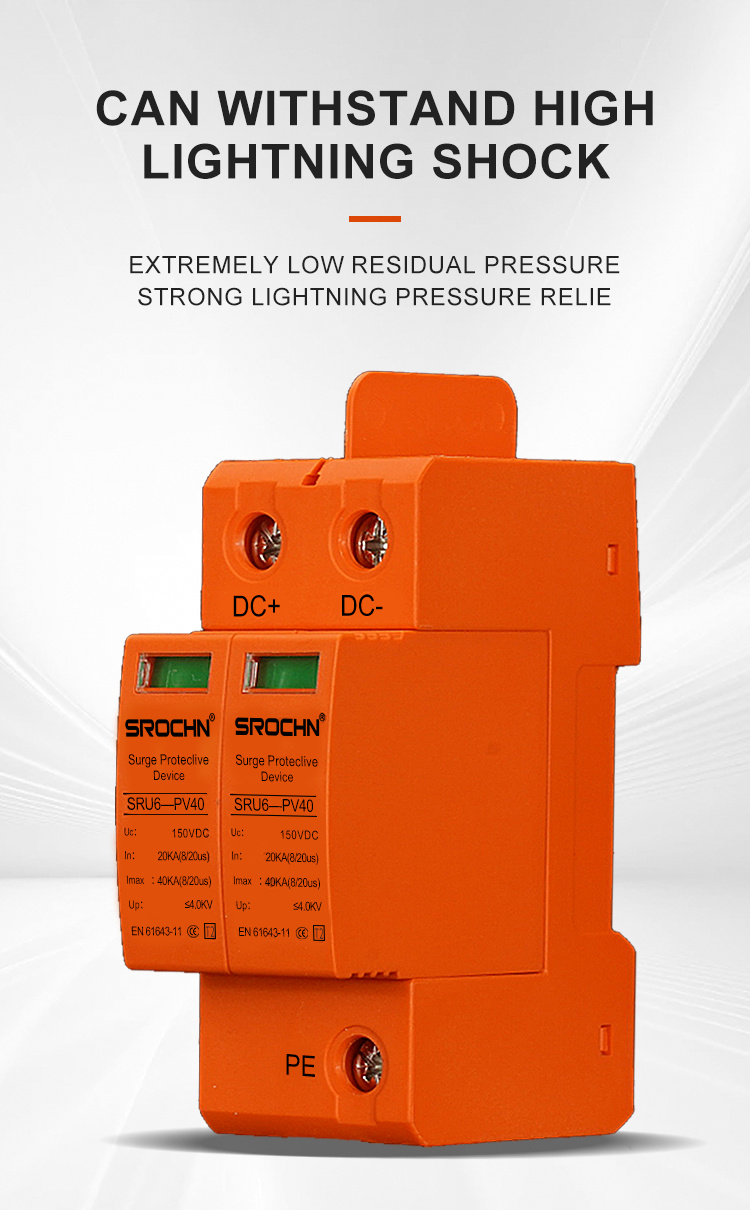

The 40kA rating (8/20µs wave) represents the maximum amount of surge current the device can safely divert to the ground during a single transient event, such as an indirect lightning strike, ensuring robust protection for downstream equipment.

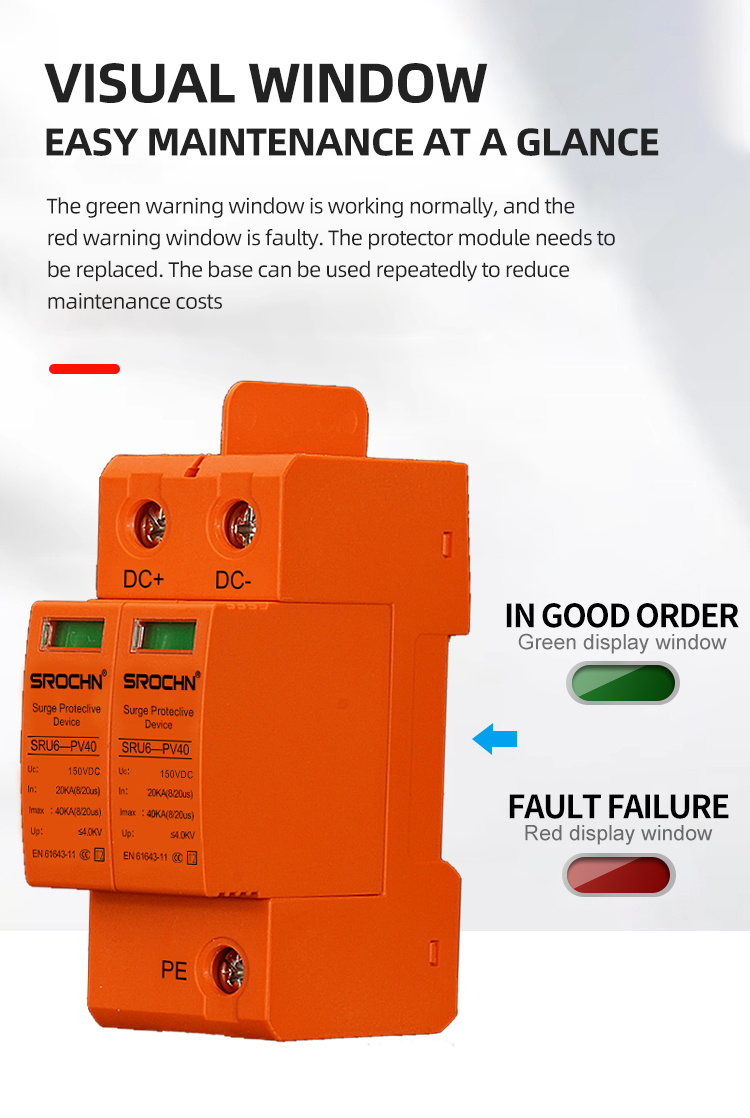

The integrated visual indicator provides real-time status monitoring. When the device is operating normally, the indicator shows a clear status; if the internal protection components degrade due to surge events, the indicator changes color, signaling that the module needs replacement.
The device features a standard DIN rail mounting system (35mm), allowing it to be easily and securely installed in standard control cabinets, distribution boxes, and switchboards without requiring specialized tools.
