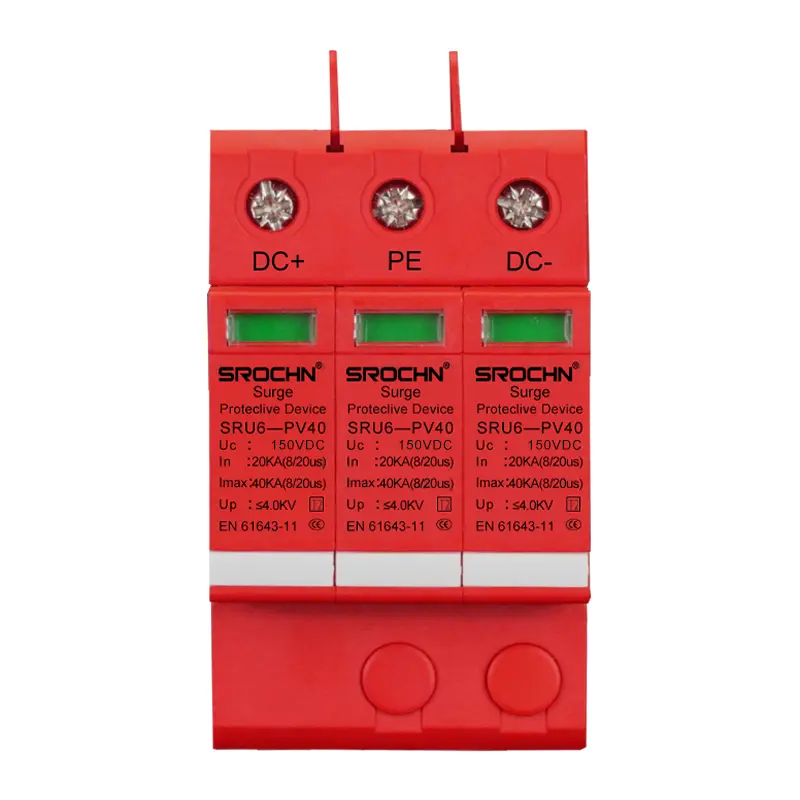

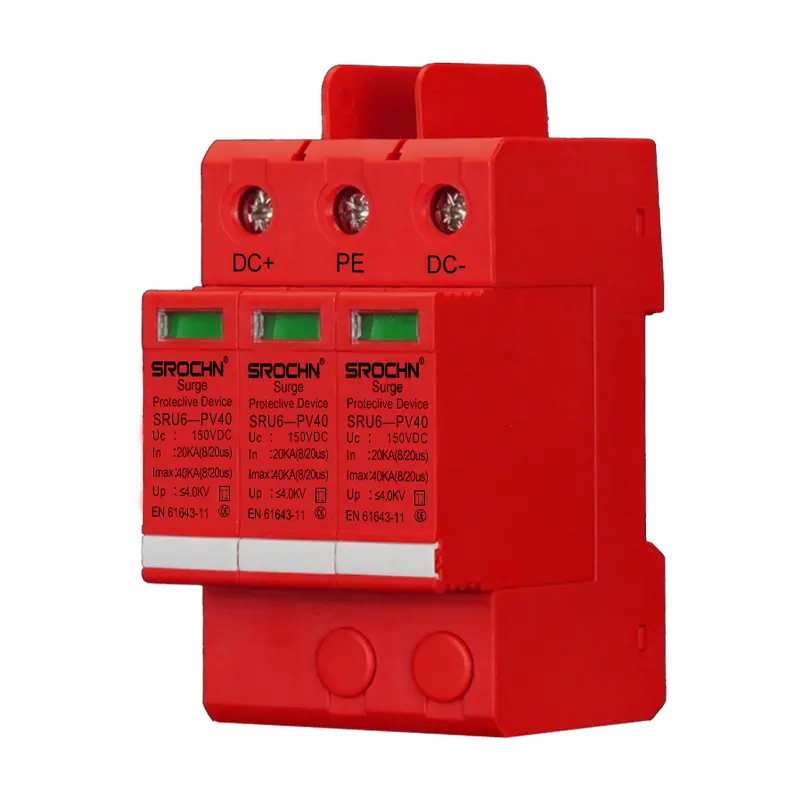

This 3pole surge protective device is designed for 150VDC electrical systems, providing reliable protection against transient overvoltages and lightninginduced surges. With a maximum discharge current of 40kA and T2 classification, the device offers robust surge protection for various DC applications. The red plastic housing ensures easy identification while maintaining electrical insulation properties. Suitable for both industrial and commercial use, this protector helps prevent equipment damage caused by electrical surges.

Send Inquiry

Product Description

Technical Features
The device incorporates a threepole design that provides comprehensive protection for positive, negative, and ground lines in DC systems. Its 20kA standard discharge capacity ensures consistent performance under normal surge conditions, while the 40kA maximum rating offers protection against more severe electrical events. The T2 classification indicates compliance with international standards for surge protective devices, particularly for handling indirect lightning effects.
The builtin thermal disconnect mechanism enhances safety by automatically isolating the device during overload situations. A visual status indicator allows for quick operational assessment, while the DIN rail mounting design facilitates straightforward installation in standard electrical enclosures. The screw terminal connections provide secure wiring implementation for reliable longterm performance.
Application Scenarios
This protective device is suitable for use in photovoltaic systems, particularly for protecting DC sides of solar installations and charge controllers. Industrial applications include protection for motor drives, control systems, and automation equipment operating at 150VDC. The device also provides effective surge protection for telecommunications infrastructure, base station power systems, and various industrial DC power supplies.
Additional applications include electric vehicle charging equipment, railway signaling systems, and backup power installations. The unit can be used in both indoor and sheltered outdoor environments when installed in appropriate enclosures, providing versatile protection solutions for different electrical systems.

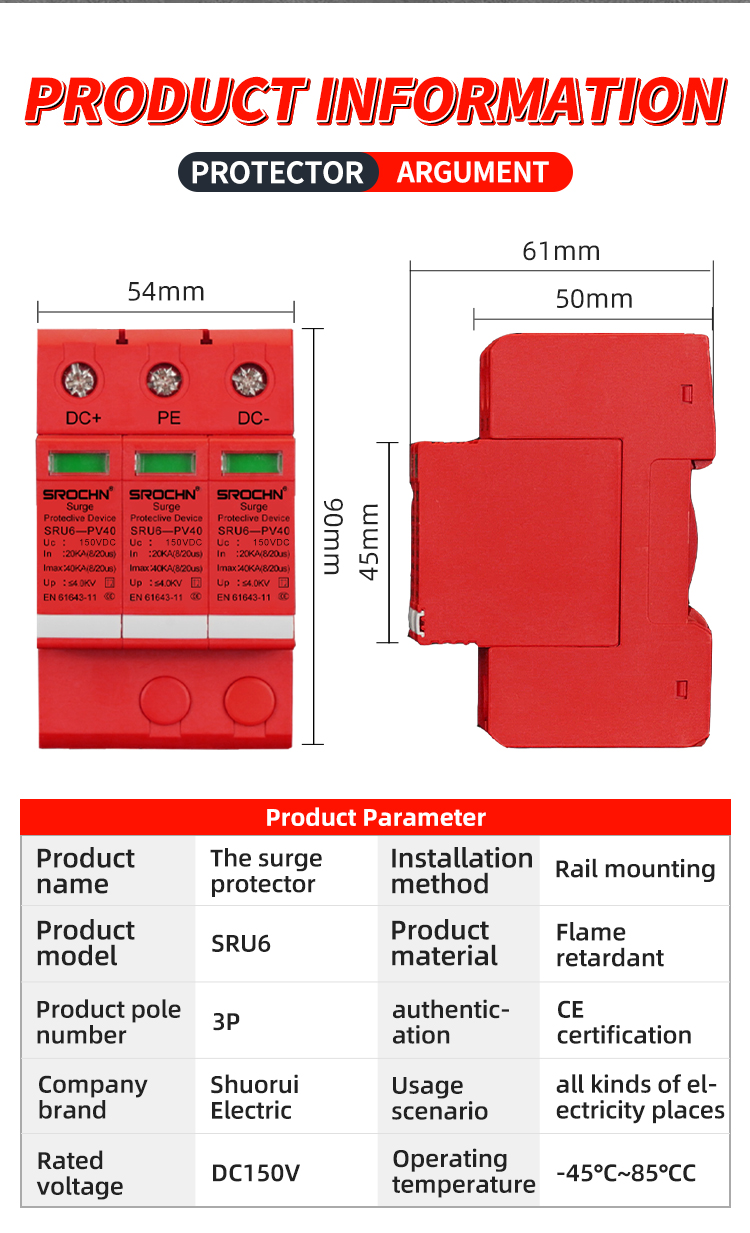

Technical Specifications
Maximum discharge current
40kA (8/20μs)
Standard discharge current
20kA (8/20μs)
Type
T2
Rated voltage
150VDC
Protection Level
≤4.0kV
Number of poles
3P
Housing material
Plastic
Protection mode
Linetoline and linetoground
Response time
<25ns
Operating temperature
-45°C to +85°C
Mounting
DIN rail (35mm)
Connection
Screw terminals
Status indication
Visual indicator
Standards
IEC 6164311
Performance Characteristics
The device maintains stable operational characteristics across its specified temperature range, providing consistent surge protection throughout its service life. The design focuses on reliability and safety, with particular attention to proper operation under DC voltage conditions. The product meets relevant international standards for surge protective devices, ensuring quality and performance for electrical system protection applications.
Detailed Product Gallery
150VDC T2 Surge Protector View 1 150VDC T2 Surge Protector View 2 150VDC T2 Surge Protector View 3 150VDC T2 Surge Protector View 4 150VDC T2 Surge Protector View 5 150VDC T2 Surge Protector View 6 150VDC T2 Surge Protector View 7 150VDC T2 Surge Protector View 8 150VDC T2 Surge Protector View 9 150VDC T2 Surge Protector View 10 150VDC T2 Surge Protector View 11 150VDC T2 Surge Protector View 12
Frequently Asked Questions
What is the primary function of this 150VDC Surge Protective Device?
It is designed to protect DC electrical systems, such as solar photovoltaic installations and industrial control systems, from voltage surges caused by indirect lightning or switching events.
What does the Type 2 (T2) classification mean?
T2 indicates that the device is a secondary surge protector, tested with an 8/20μs current waveform, suitable for installation in sub-distribution boards to protect sensitive electronics.

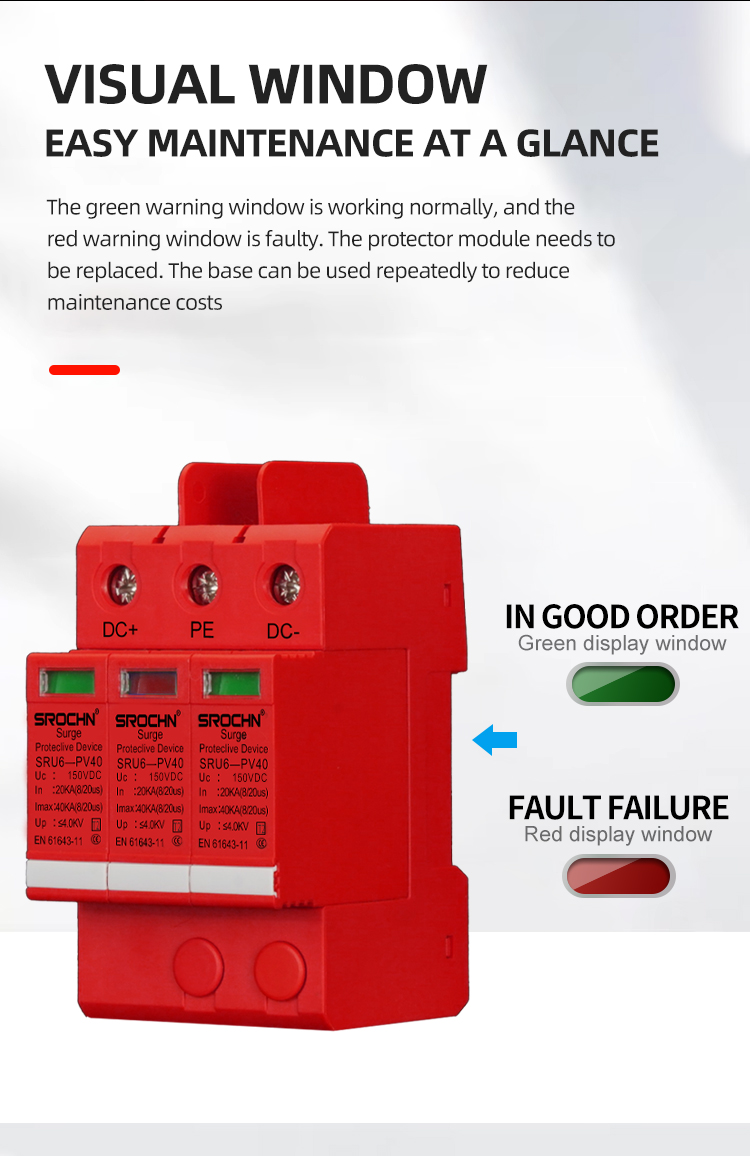

How do I know if the device needs to be replaced?
The device features a built-in visual status indicator. When the indicator changes color (typically from green to red), it signifies that the protective component has reached its end of life and the module should be replaced.

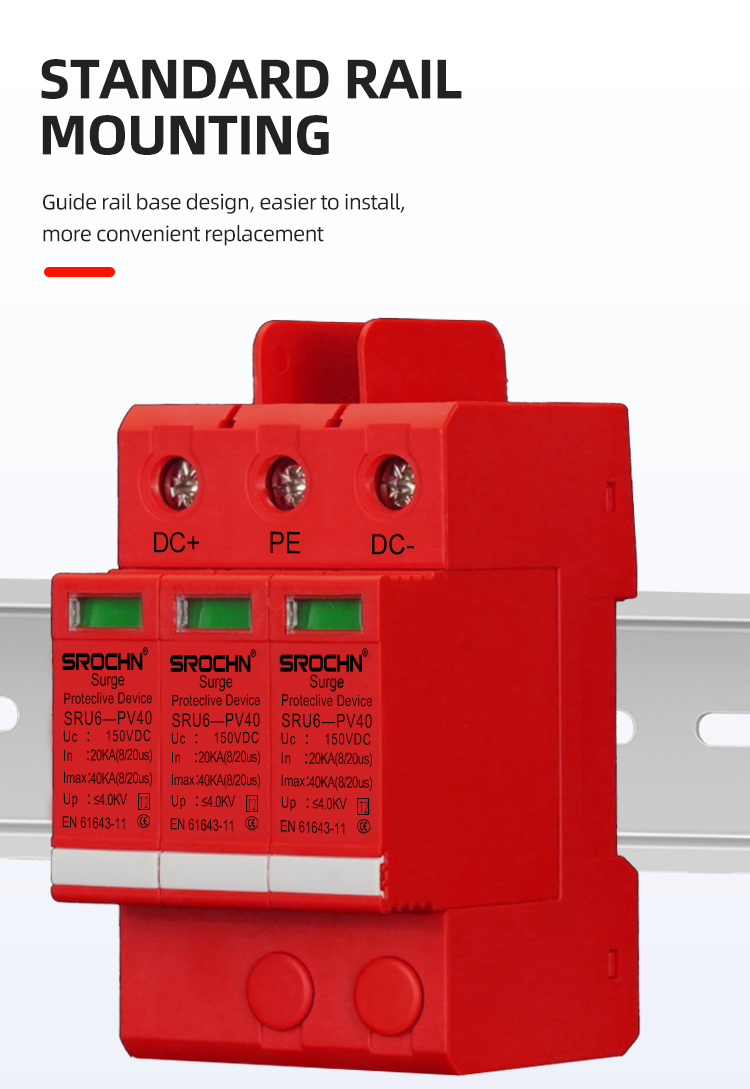

Is this device easy to install in existing cabinets?
Yes, it is designed for standard 35mm DIN rail mounting, making it compatible with most industrial and residential electrical enclosures.
What is the benefit of the three-pole (3P) design?
The 3P design allows for comprehensive protection of the positive (+) line, negative (-) line, and the ground (PE), ensuring no path is left vulnerable to surges.

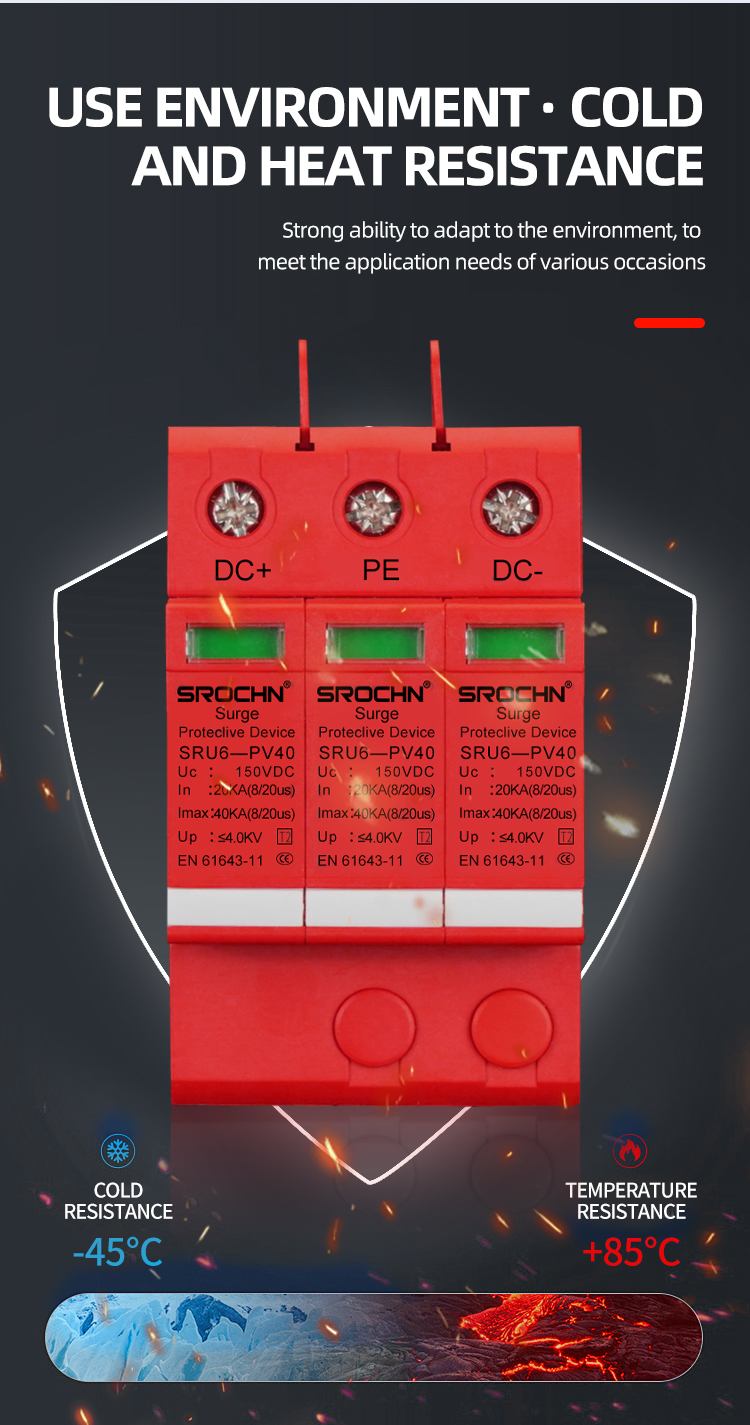

Can it operate in extreme weather conditions?
The device is engineered to operate reliably in temperatures ranging from -45°C to +85°C, making it suitable for various climates and industrial environments.
