This series of fuses is suitable for circuits with rated DC voltage up to 1000Vand rated current up to 30A They are connected in series and parallel withphotovoltaic panels and batteries to provide short-circuit breaking protection forcharging and converting systems; Simultaneously, for photovoltaic power plants,combiner inverter rectification systems, and short-circuit fault breaking protectionAnd for the rapid breaking protection of surge current and short-circuit faultovervoltage in photovoltaic power generation systems, with a rated breaking capacityof 20KA. 0ur company is currently conducting relevant tests to further improve thebreaking capacity of the product. The product complies with the provisions of theInternational Electrotechnical Commission standard EC60269.

Send Inquiry

Product Description

Normal Working Conditions

The upper limit of ambient air temperature shall not exceed 90°C. The lower limit of ambient air temperature shall not be less than -40°C. The elevation of the installation site should not exceed 2000m (Special requirements for elevations exceeding 2000m can be designed and developed upon request).

Usage Category

"gPy" refers to a DC fuse with full range breaking capacity used for overcurrent protection in solar photovoltaic systems.

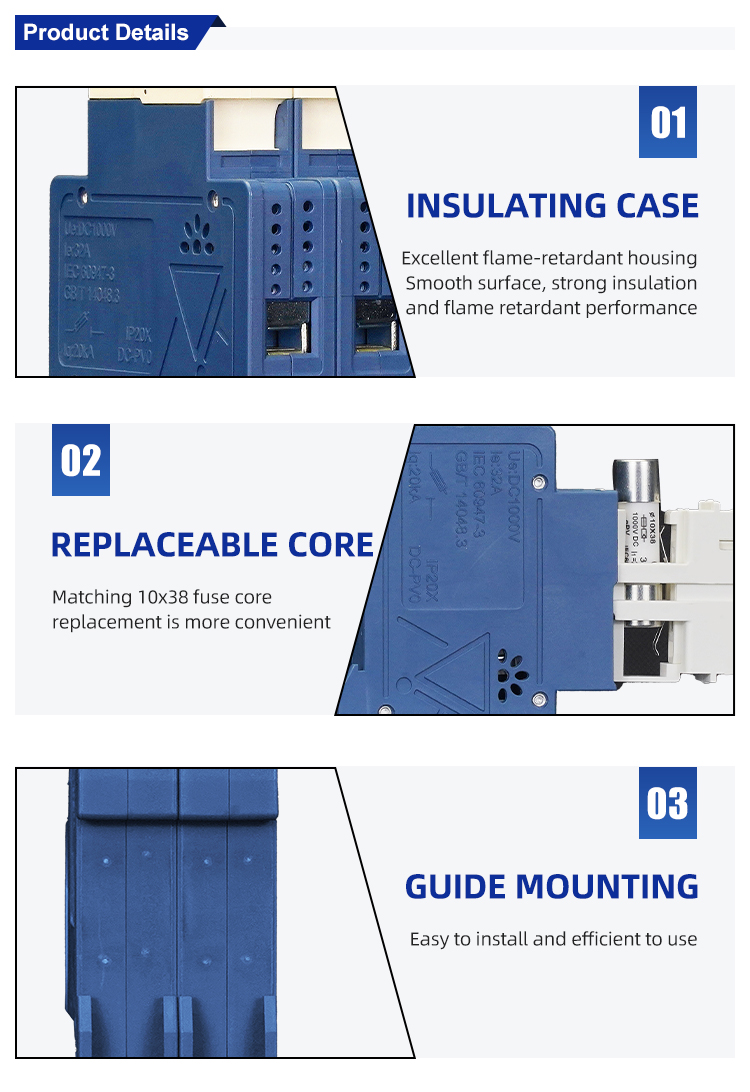

Product Features

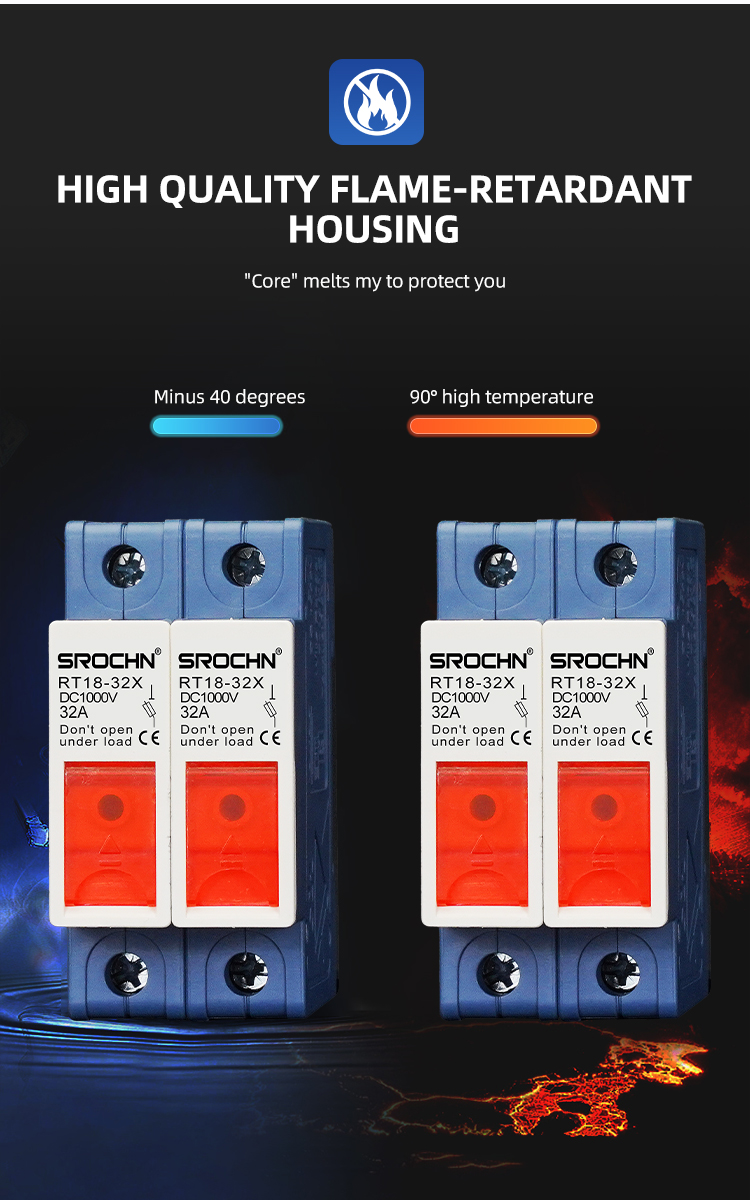

Insulating Case High quality flame-retardant housing. Smooth surface, strong insulation and flame retardant performance.

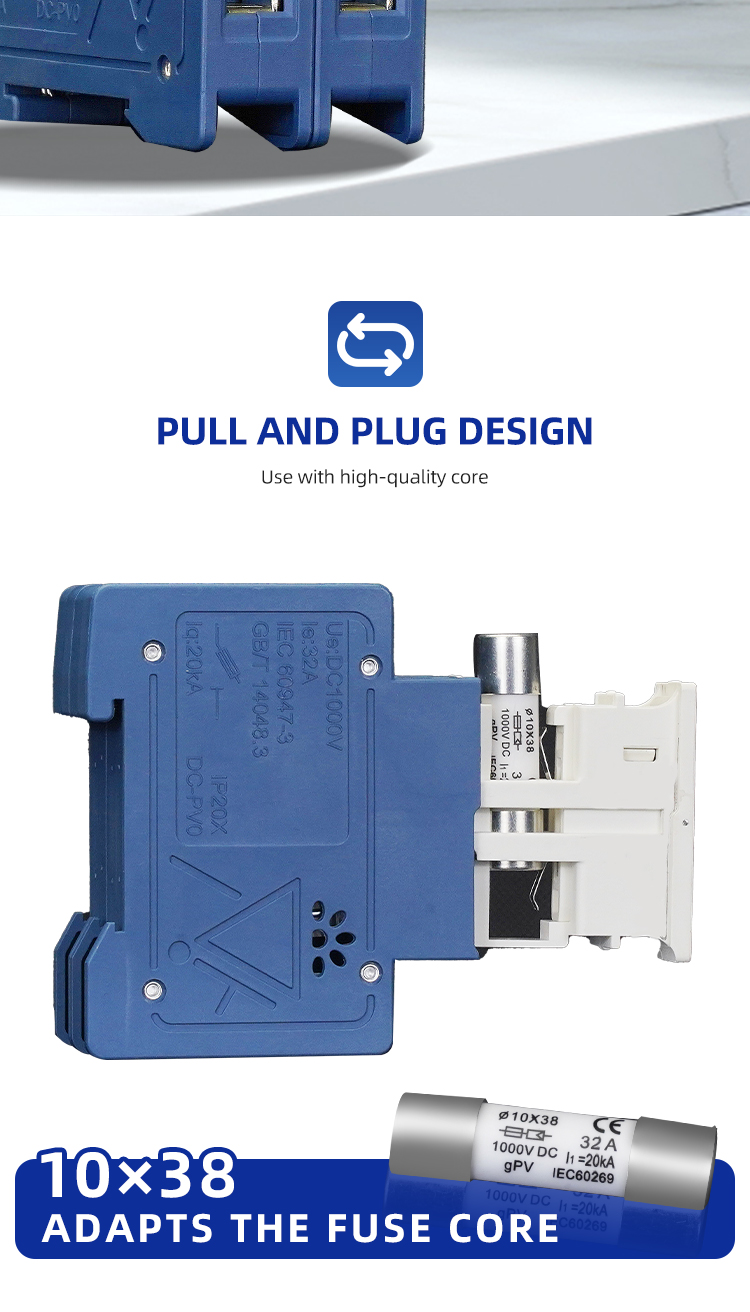

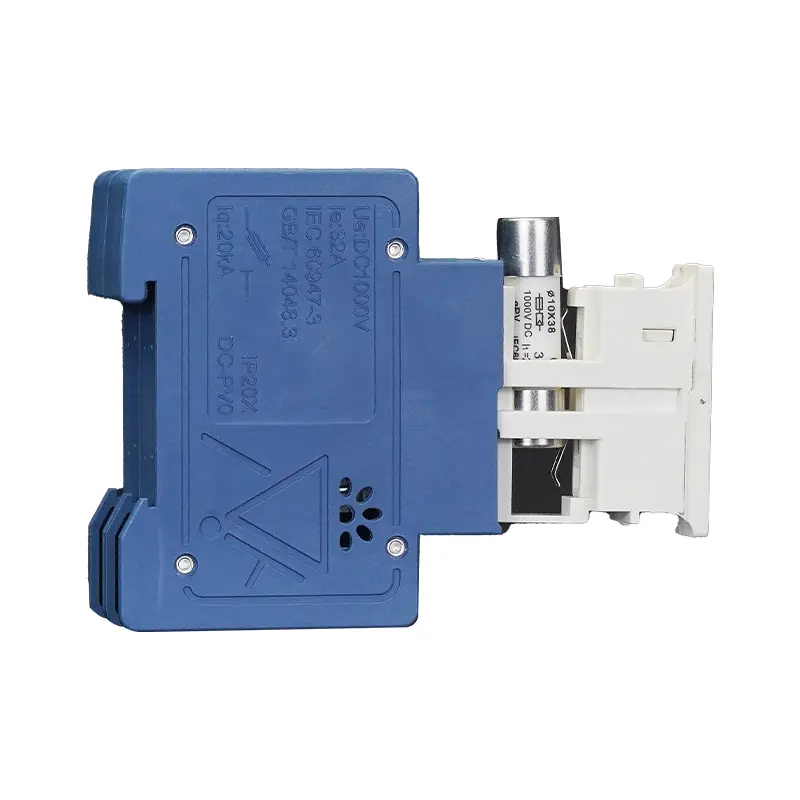

Replaceable Core Use with high-quality core matching 10x38 fuse core replacement is more convenient.
Pure Copper Component It has good electrical conductivity.
Guide Mounting Easy to install and efficient to use.

The variable cross-section melt made of pure silver sheet is encapsulated in a melt tube made of high-strength porcelain. The melt tube is filled with chemically treated high-purity quartz sand and specially treated chemicals as the arc extinguishing medium. The two ends of the melt are firmly connected with the contact by spot welding.

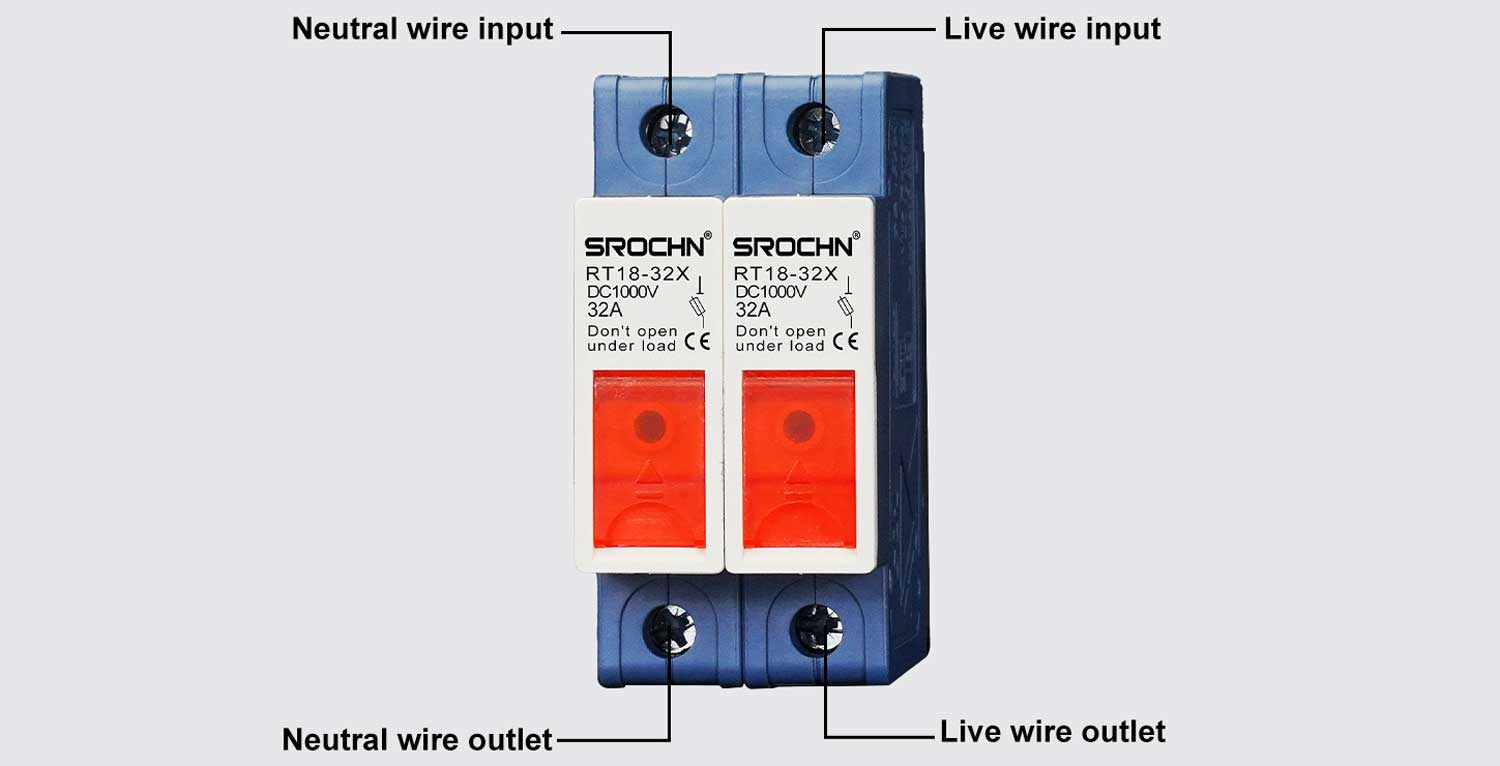

Wiring Method
Wiring Method

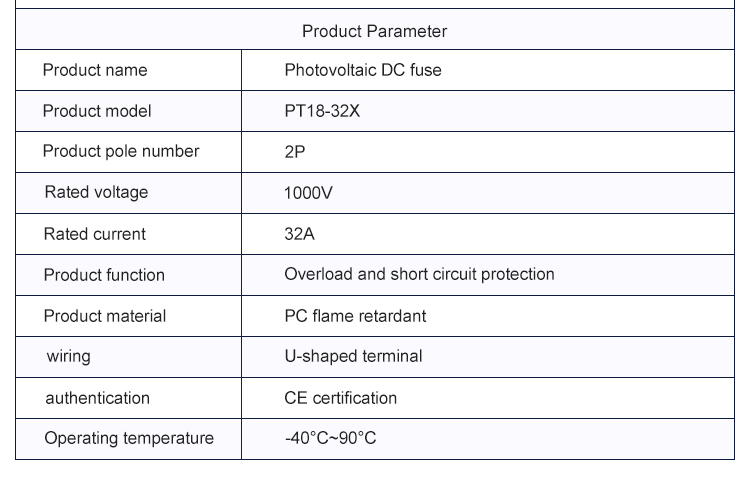

Parameter Information
Product name Photovoltaic DC fuse Product function Overload and short circuit protection
Product model PT18-32X Product material PC flame retardant
Product pole number 2P Wiring U-shaped terminal
Overcurrent protection value 1000V Authentication CE certification
Rated current 32A Operating temperature -40°C~90°C

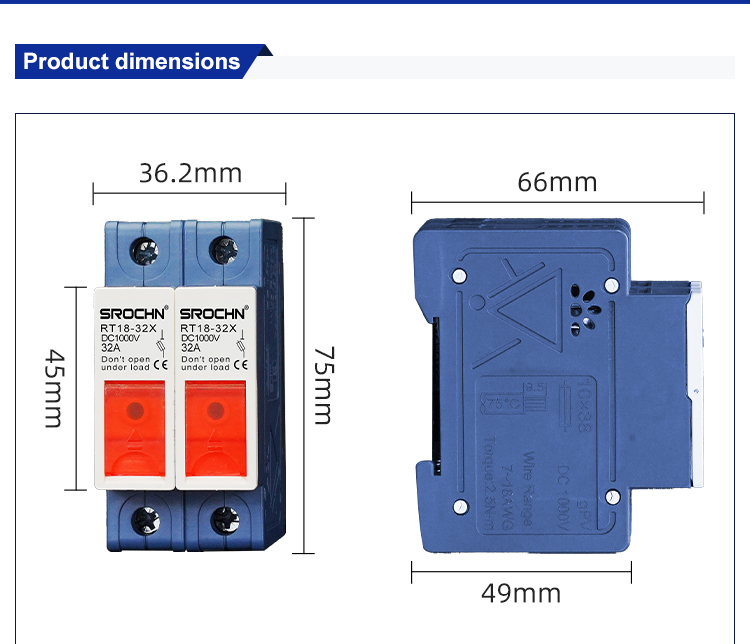

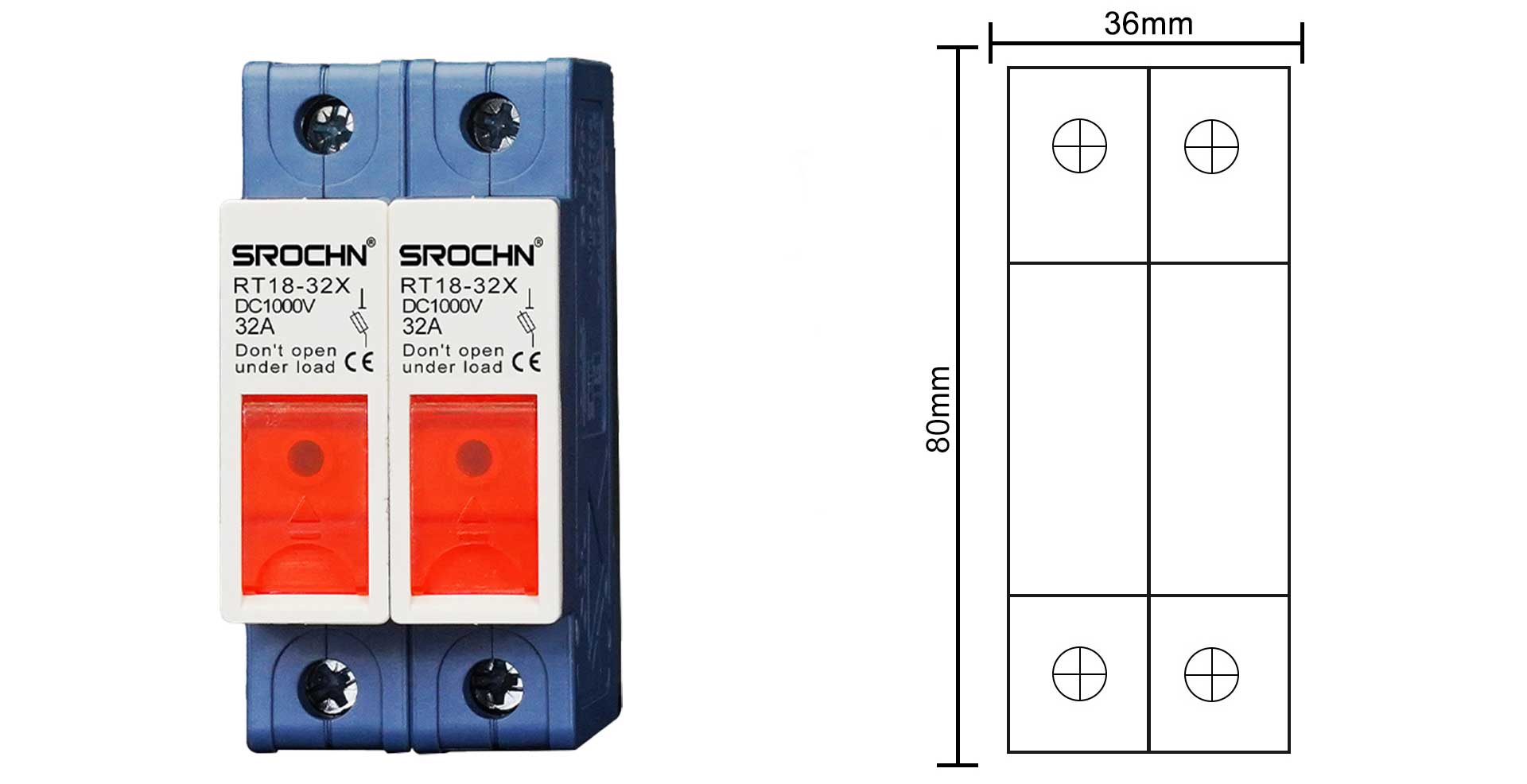

Product Size
Product Size
Detailed Pictures

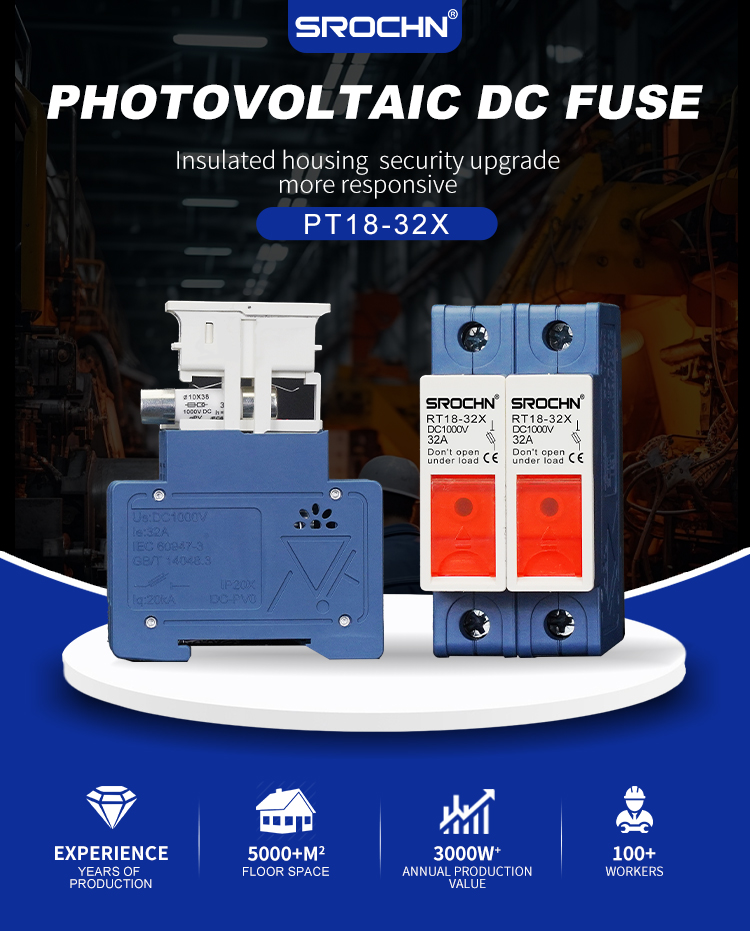

The Solar Fuse Detail 1
The Solar Fuse Detail 2
The Solar Fuse Detail 3
The Solar Fuse Detail 4
The Solar Fuse Detail 5

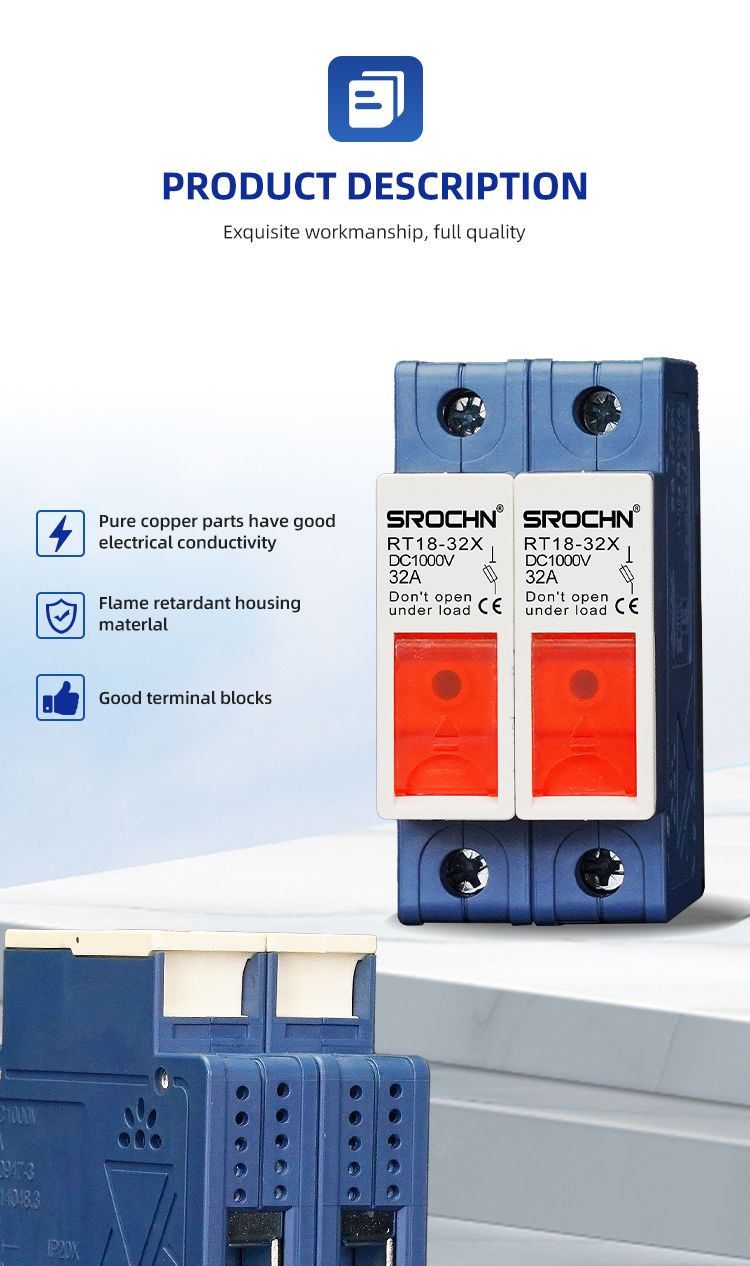

The Solar Fuse Detail 6
The Solar Fuse Detail 7
The Solar Fuse Detail 8
The Solar Fuse Detail 9
The Solar Fuse Detail 10
Frequently Asked Questions
What is the operating temperature range for this Photovoltaic DC fuse?
The fuse is designed to operate in ambient temperatures ranging from a low of -40°C to an upper limit of 90°C.
What does the "gPy" usage category mean?
The "gPy" category signifies that this is a DC fuse with full range breaking capacity specifically designed for overcurrent protection in solar photovoltaic systems.
Is the fuse core replaceable?
Yes, the product features a replaceable core design. It is compatible with high-quality 10x38 fuse cores for easy maintenance.
What materials are used for the internal construction?
The internal melt is made of pure silver sheet, encapsulated in a high-strength porcelain tube filled with high-purity quartz sand and special chemicals for arc extinguishing.
What are the main technical specifications of the PT18-32X model?
The model features a 2P pole number, 1000V overcurrent protection value, 32A rated current, and is constructed with PC flame-retardant material.
Does this product carry international certification?
Yes, the Photovoltaic DC fuse has obtained CE certification, ensuring it meets required safety and quality standards.
